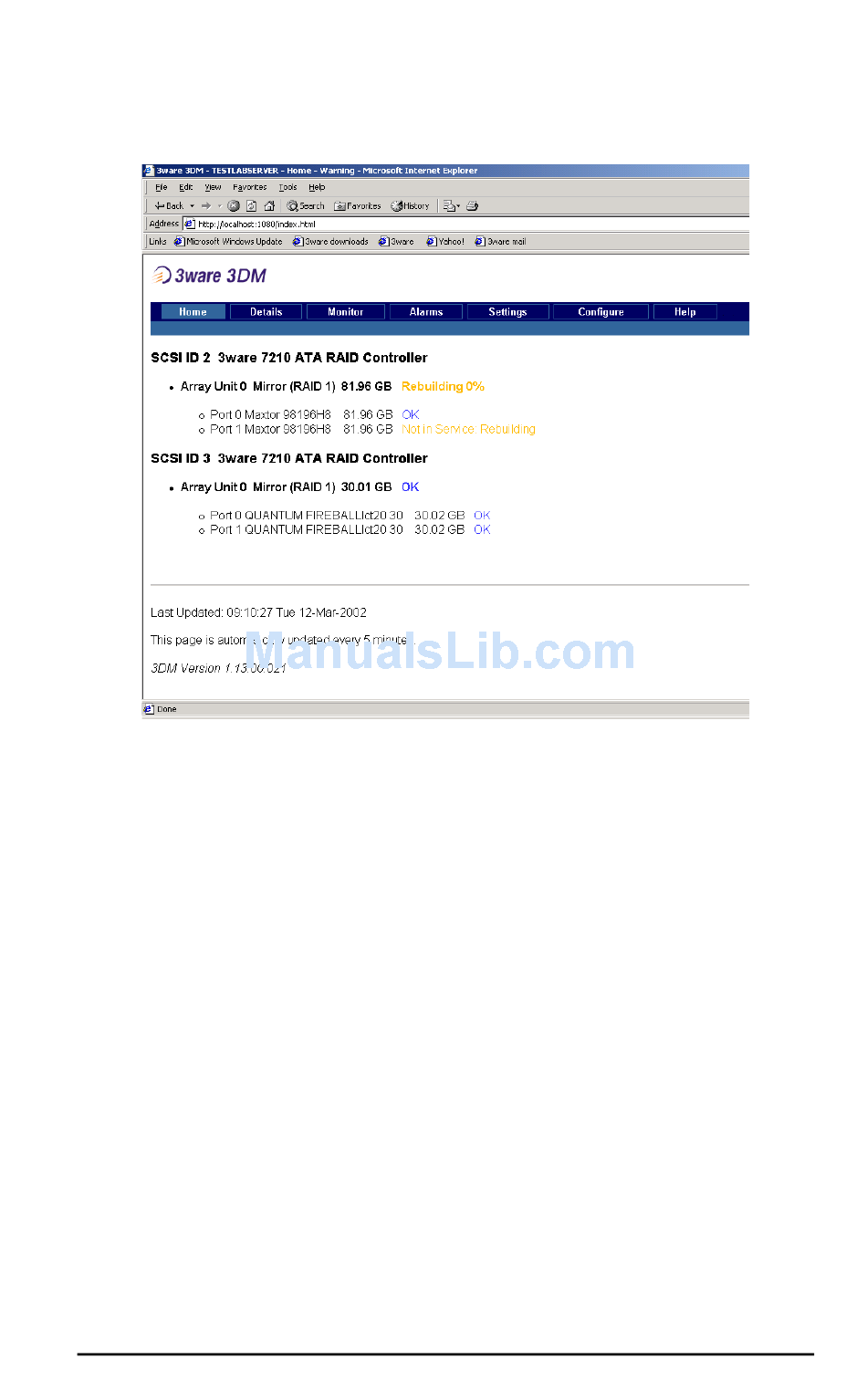

Figure 49. 3DM Home Display

The Details display (see Figure 50) gives ATA RAID controller
version and status information in text format, which is helpful when
contacting 3ware Customer Support with questions or for trouble-
shooting. Its text format allows you to select the text in the window
with your mouse and use the system clipboard to cut and paste it
into e-mail or documentation.
The Details display (see Figure 50) gives the following detailed
information on the 3ware disk I/O subsystem:
• The hostname is displayed. This is the name that is typed into
the web browser, along with the specified port, to bring up
3ware 3DM (e.g. http://<hostname>:1080)
www.3ware.com
Checking Array Status
153
