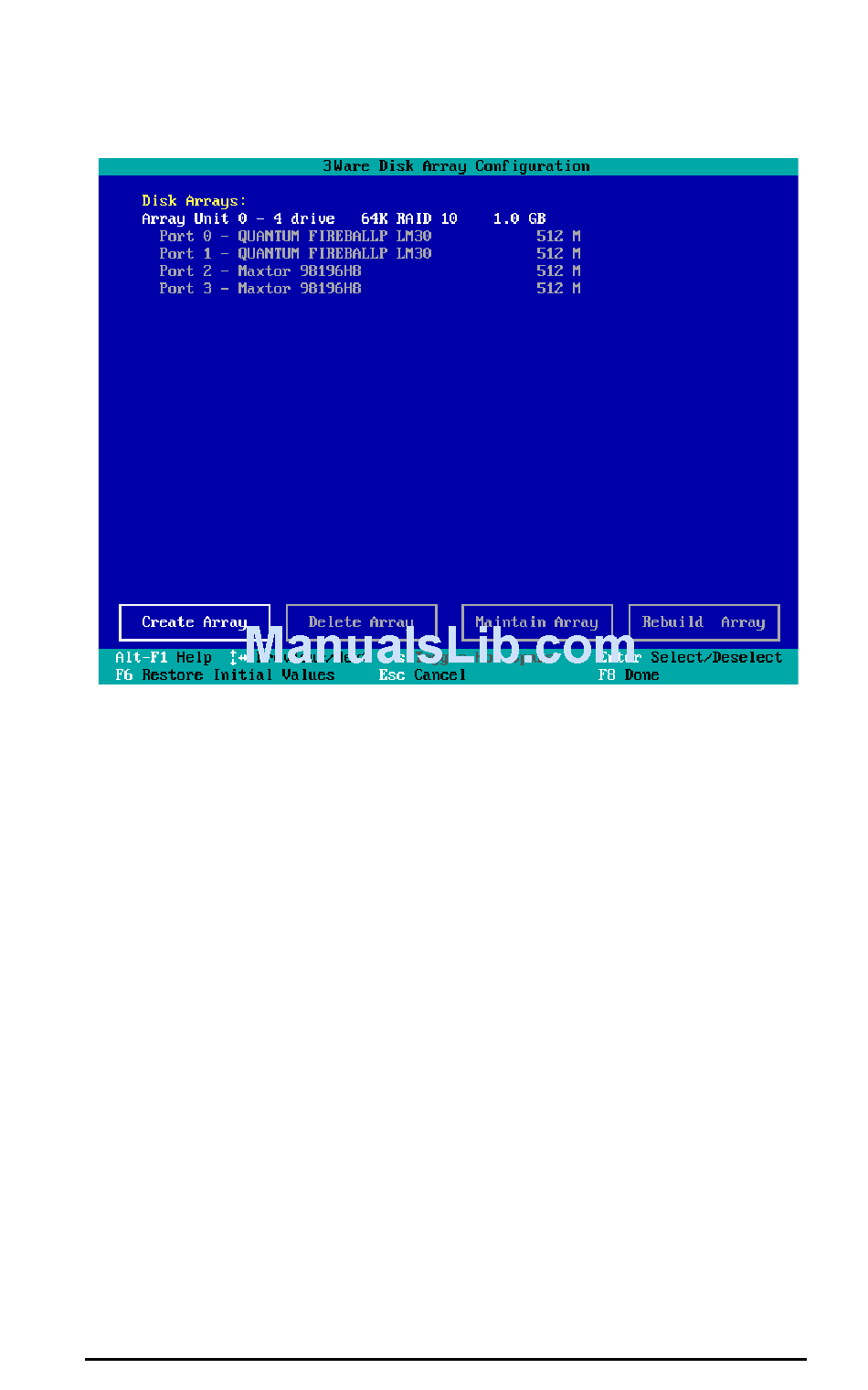

Figure 9. Disk Array Configuration Main Display, RAID 1
Example
Throughout the utility (see Figure 9) use the Up and Down arrow
keys to navigate, Enter to select the disks or buttons and F1 for
context sensitive help. Toggle Hot Spare verbiage is black when
the cursor is over a drive that can be specified as a hot spare and
gray when hot spare cannot be specified. If you've made mistakes
and want to start over, pressing F6 will return your starting values.
Pressing Escape will exit the configuration utility as well as aban-
don your changes. Pressing F8 will save your changes and exit the
utility.
www.3ware.com
3ware Disk Array Configuration Utility
47
