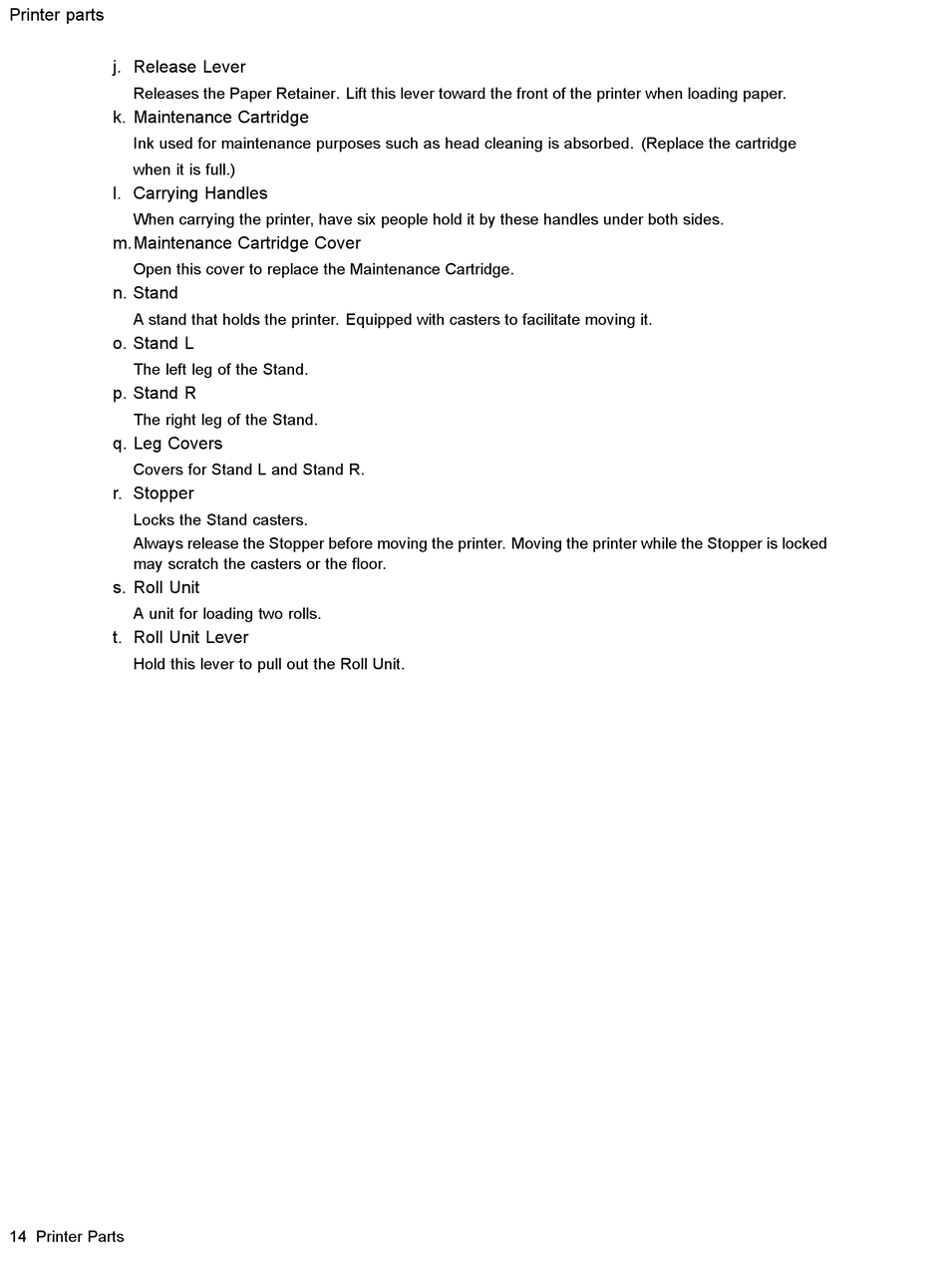

Printer parts
j. Release Lever
Releases the Paper Retainer. Lift this lever toward the front of the printer when loading paper.
k. Maintenance Cartridge
Ink used for maintenance purposes such as head cleaning is absorbed. (Replace the cartridge
when it is full.)
l. Carrying Handles
When carrying the printer, have six people hold it by these handles under both sides.
m.Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
n. Stand
A stand that holds the printer. Equipped with casters to facilitate moving it.
o. Stand L
The left leg of the Stand.
p. Stand R
The right leg of the Stand.
q. Leg Covers
Covers for Stand L and Stand R.
r. Stopper
Locks the Stand casters.
Always release the Stopper before moving the printer. Moving the printer while the Stopper is locked
may scratch the casters or the oor.
s. Roll Unit
A unit for loading two rolls.
t. Roll Unit Lever
Hold this lever to pull out the Roll Unit.
