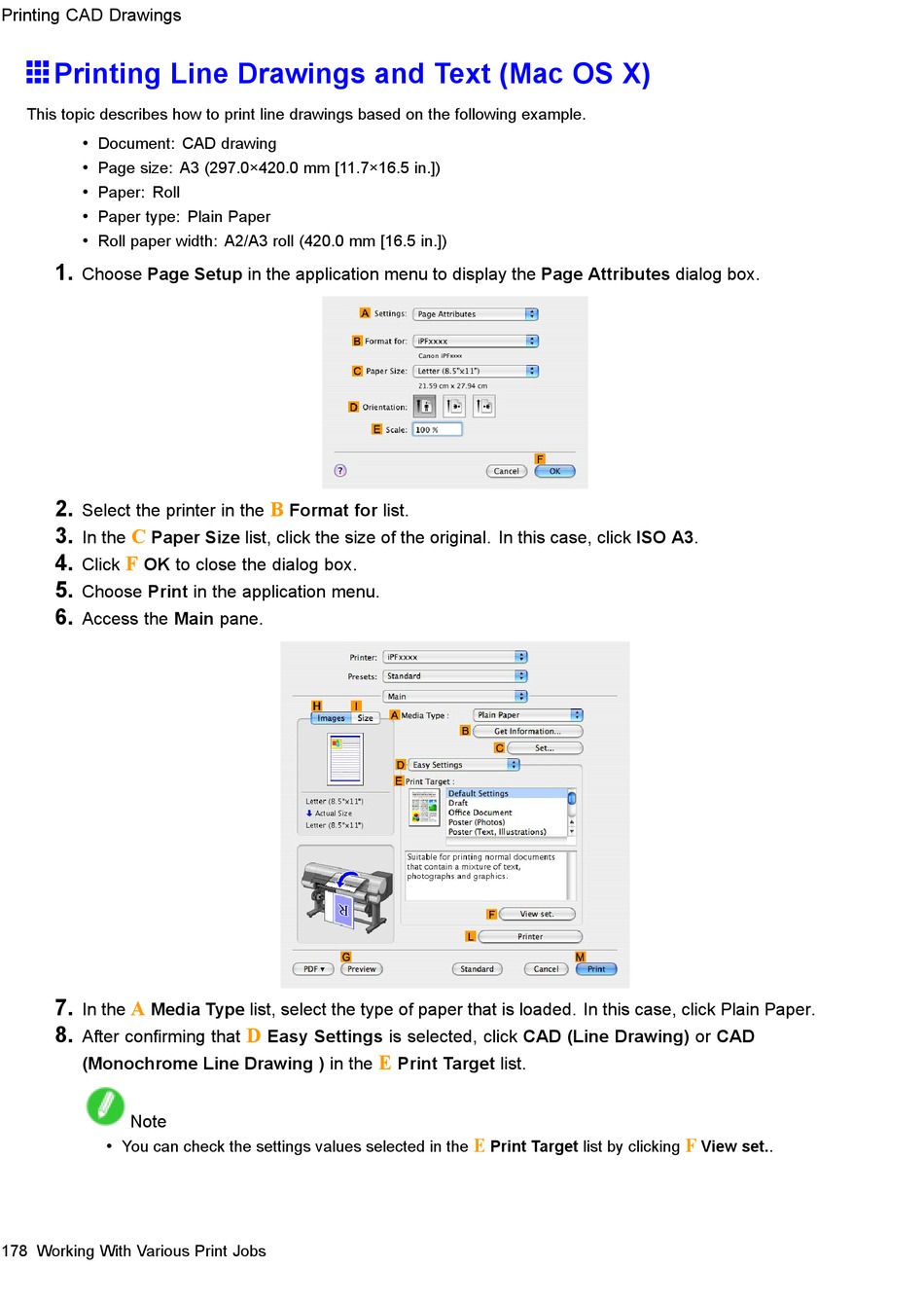

Printing CAD Drawings
Printing Line Drawings and Text (Mac OS X)
This topic describes how to print line drawings based on the following example.
Document: CAD drawing
Page size: A3 (297.0×420.0 mm [11.7×16.5 in.])
Paper: Roll
Paper type: Plain Paper
Roll paper width: A2/A3 roll (420.0 mm [16.5 in.])
1.
Choose Page Setup in the application menu to display the Page Attributes dialog box.
2.
Select the printer in the
3.
C
In the
Paper Size list, click the size of the original. In this case, click ISO A3.
4.
F
Click
OK to close the dialog box.
5.
Choose Print in the application menu.
6.
Access the Main pane.
7.
A
In the
Media Type list, select the type of paper that is loaded. In this case, click Plain Paper.
8.
After conrming that
(Monochrome Line Drawing ) in the
Note
You can check the settings values selected in the
178 Working With Various Print Jobs
B
Format for list.
D
Easy Settings is selected, click CAD (Line Drawing) or CAD
E
Print Target list.
E
Print Target list by clicking
F
View set..
