Handling rolls

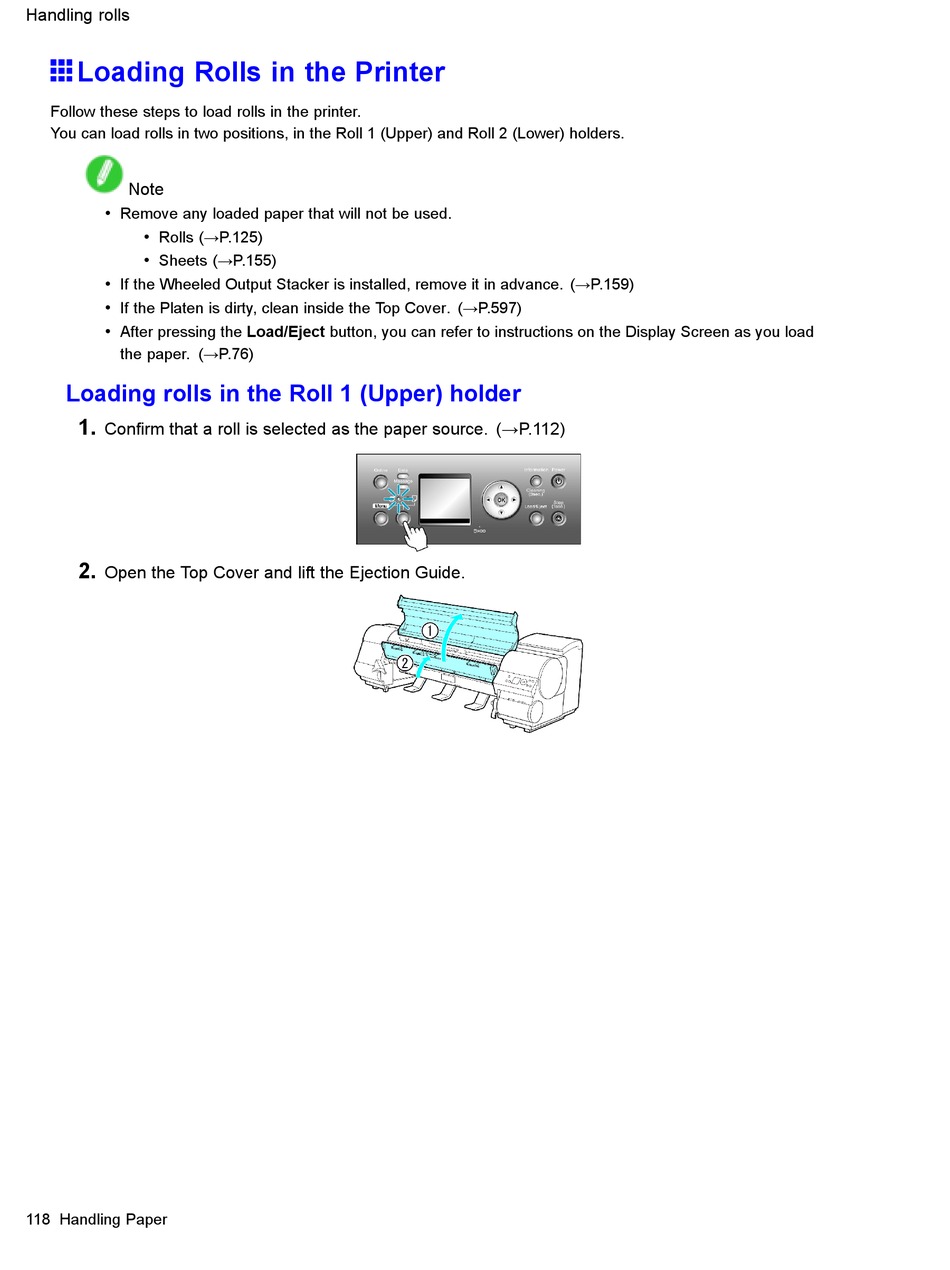

Loading Rolls in the Printer

Follow these steps to load rolls in the printer.
You can load rolls in two positions, in the Roll 1 (Upper) and Roll 2 (Lower) holders.
Note
Remove any loaded paper that will not be used.
Rolls (→P.125)
Sheets (→P.155)
If the Wheeled Output Stacker is installed, remove it in advance. (→P.159)
If the Platen is dirty, clean inside the Top Cover. (→P.597)
After pressing the Load/Eject button, you can refer to instructions on the Display Screen as you load
the paper. (→P.76)

Loading rolls in the Roll 1 (Upper) holder

1.
Conrm that a roll is selected as the paper source. (→P.112)
2.
Open the Top Cover and lift the Ejection Guide.
118 Handling Paper
