7. (Hot-swap system only) Disconnect the backplane flat flex cable from the server board. See
letter "A" in the figure below. The position of your cable may be different. See your server
board documentation for the specific connection point.
A

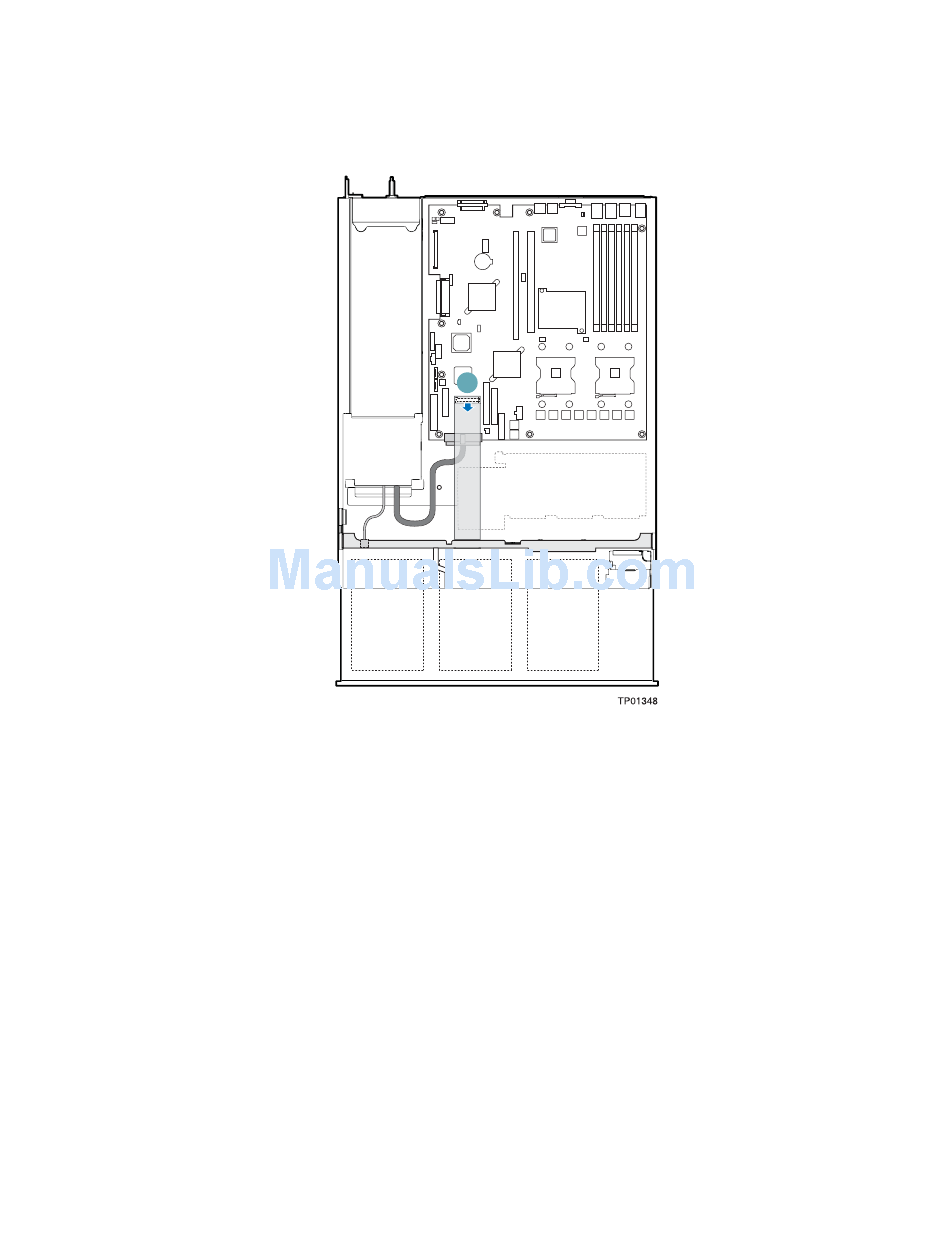

Figure 69. Disconnecting the Flex Cable from the Server Board
78
