Hardware Installations and Upgrades

Installing the Front Bezel

Use the steps below if your system includes either the standard front bezel or the front bezel for the
Intel Local Control Panel. The front bezel is optional.
1. At each end of the bezel, line up the center notch on the bezel with the center guide on the rack
handles.
2. Push the bezel onto the front of the chassis until it clicks into place.
3. Connect any necessary cables to the control panel area at the right side of the chassis.
4. (Optional): Lock the bezel.
Intel® Server Chassis SR2400/SR2400DC User Guide

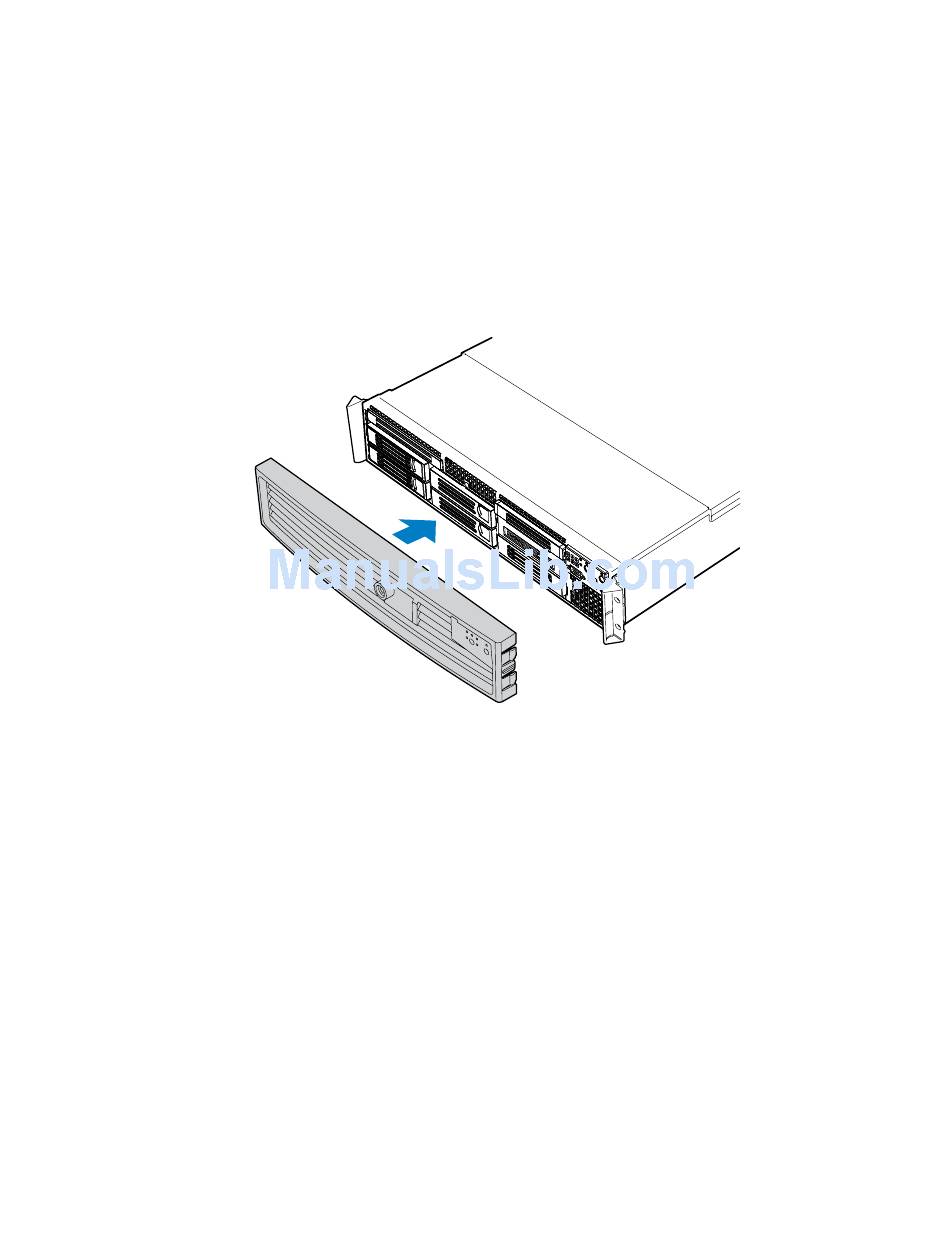

Figure 12. Installing the Front Bezel

TP01342
17
