Hardware Installations and Upgrades
10. Slide the DVD-ROM / CD-ROM drive carrier into the chassis. See letter "A" in the figure
below.
11. Connect the loose end of the CD-ROM drive cable to the backplane connector. See letter "B" in
the figure. For assistance in locating connectors on the SATA backplane, see
Backplane Connections." For assistance in locating connectors on the SCSI backplane, see
"Hot-Swap SCSI Backplane
12. Install the chassis cover. For instructions, see
13. (Optional) Install the front bezel. For instructions, see
14. Plug in all peripheral devices and connect the AC power cable or DC external source to the
server.
Removing a CD-ROM or DVD-ROM Drive from the Slimline Bay
(Backplane Installed)
1. Observe the safety and ESD precautions at the beginning of this book. See
Information."
2. Power down the server and unplug all peripheral devices and the AC power cable or DC
external source.
3. Remove the chassis cover. For instructions, see
4. Remove the front bezel if it is installed. For instructions, see
5. Disconnect the CD-ROM data cable from the backplane. For assistance in locating connectors
on the SATA backplane, see
locating connectors on the SCSI backplane, see
6. Push in on the blue lever at the rear of the drive carrier. Slide the drive carrier out through the
front of the chassis.
7. Press downward on the side of the carrier release the drive from the drive carrier.
Intel® Server Chassis SR2400/SR2400DC User Guide
Connections."
A

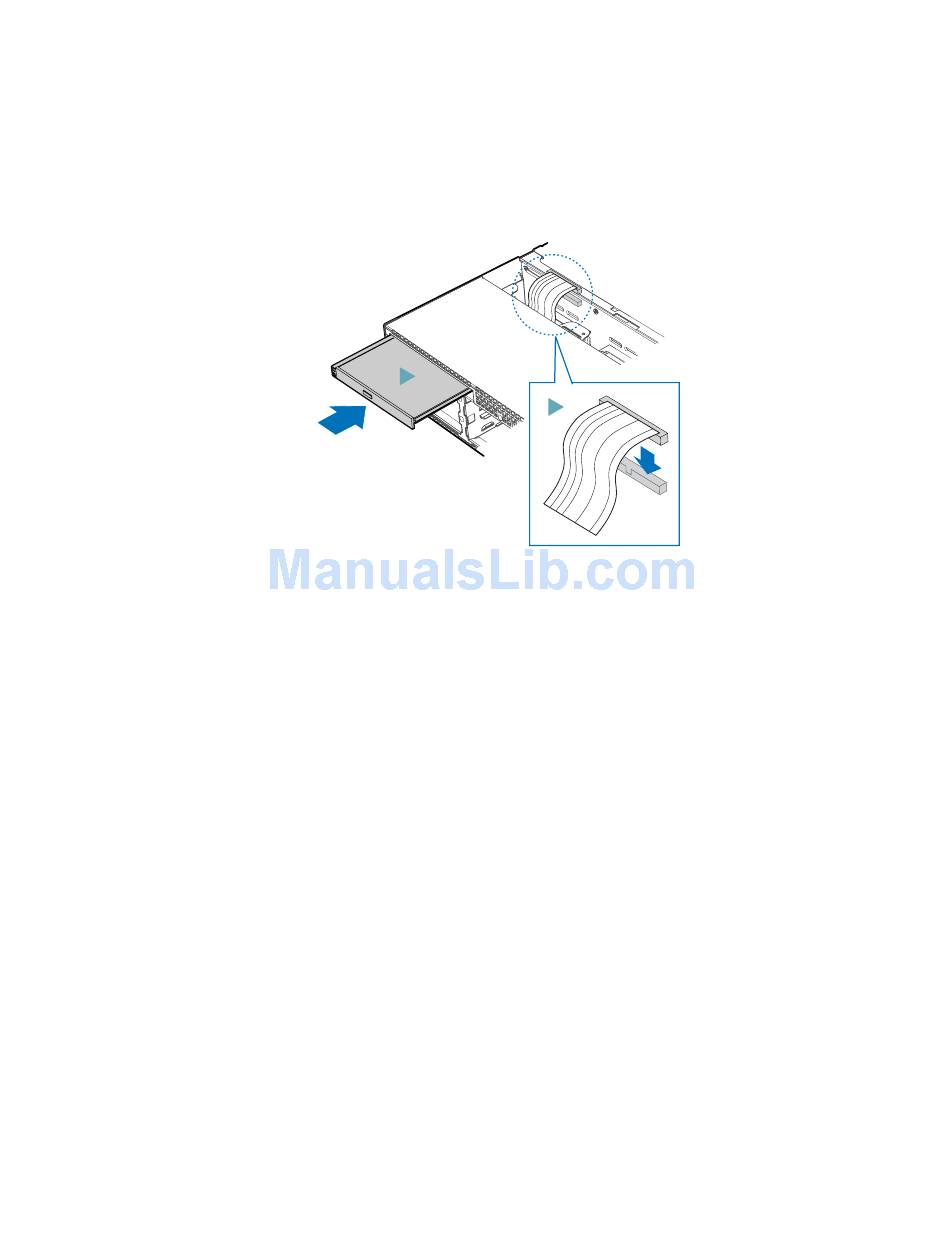

Figure 53. Installing a DVD/CDROM Drive into the Chassis

"Hot-Swap SATA Backplane
B
TP01086
"Installing the Chassis Cover."
"Installing the Front Bezel."
"Removing the Chassis Cover."
"Removing the Front Bezel."
Connections." For assistance in
"Hot-Swap SCSI Backplane
"Hot-Swap SATA
"Safety
Connections."
59
