Hardware Installations and Upgrades
6. Remove the fan module. For instructions, see
7. Hold the SATA or SCSI sixth drive accessory board about ¼-inch above the opening in the
backplane to allow alignment notches to clear the top of the backplane bracket. Move the board
forward into the opening and set it into place while lining up the two tabs on the sixth drive kit
board with the matching holes on backplane. Be sure the board seats into the plastic retainer at
the bottom of the backplane opening.
8. (SATA sixth drive accessory only): Connect the end of the long SATA data cable that has the
right-angle connector to the server board or to the add-in card. See your server board or add in
card documentation for the connection point on the server board or add-in card. Connect the
remaining end of the cable to the connector on the sixth drive board.
9. (SCSI sixth drive accessory only): Connect the end of the long SCSI cable that is labeled
"Backplane" to the connector on the sixth drive board that is labeled "M/B." Connect the
remaining end of the SCSI connector to the server board or add in card. See server board or add
in card documentation for the connection location. For assistance in locating connectors on the
backplane, see
10. (SCSI sixth drive accessory only): Connect the end of short SCSI cable that is labeled
"Backplane" to the backplane connector labeled "SCSI CH A." Connect the other end to the
sixth drive board connector. For assistance in locating connectors on the backplane, see
Swap SCSI Backplane
Intel® Server Chassis SR2400/SR2400DC User Guide

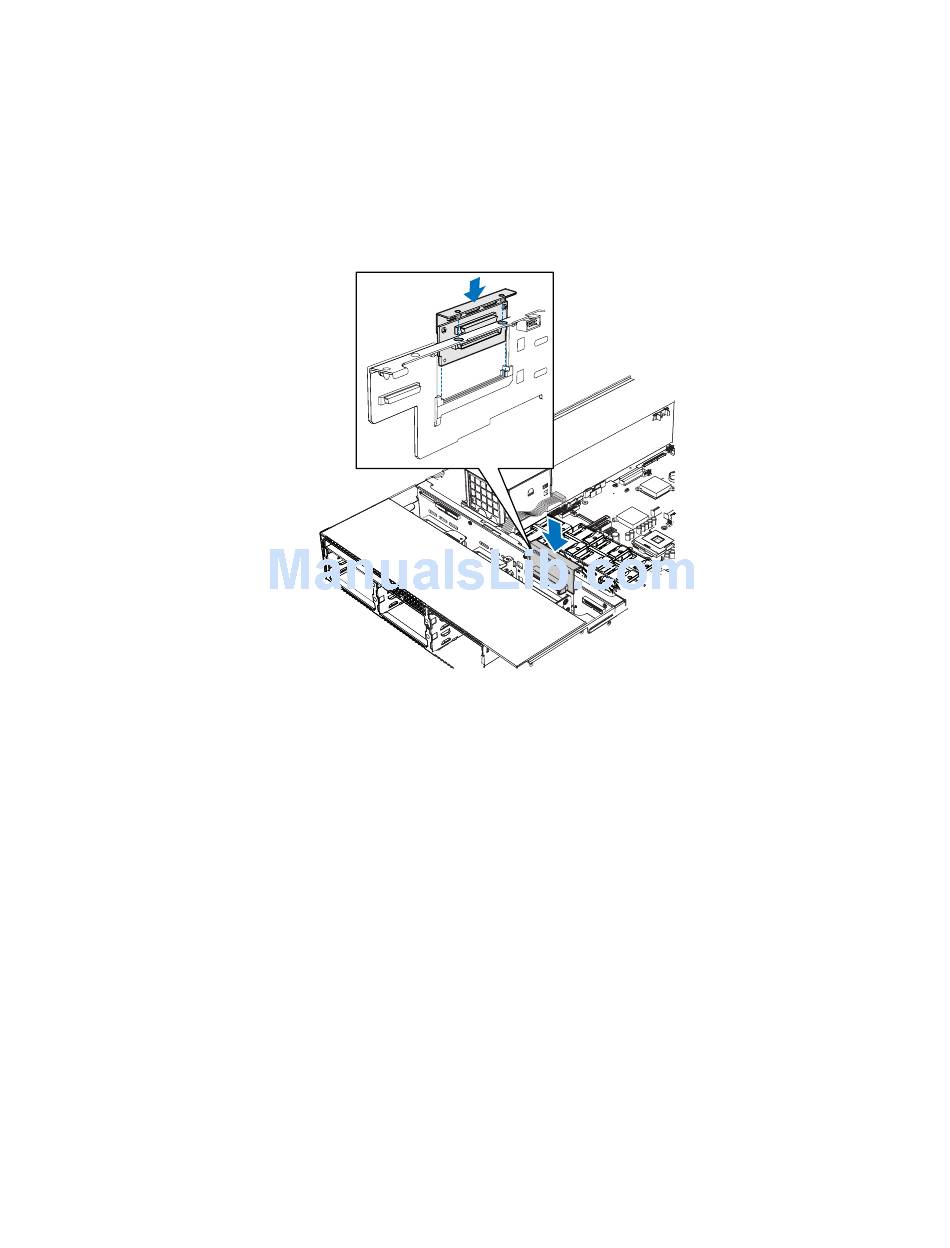

Figure 38. Installing the Sixth Drive Board
"Hot-Swap SATA Backplane
Connections."
"Removing the Fan
Module."
TP01084
Connections."
"Hot-
43
