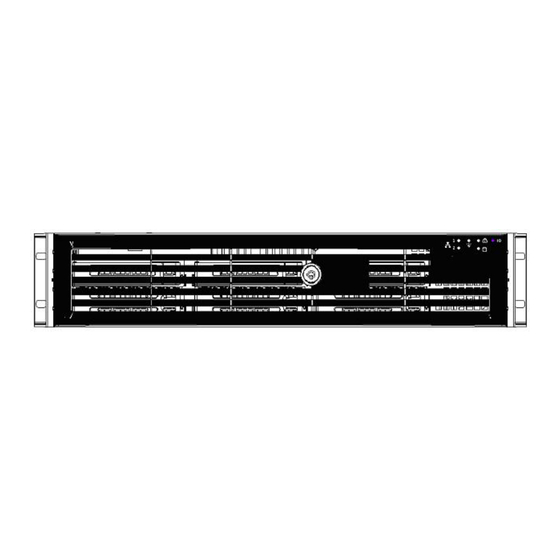

Intel® Server Chassis SR2400
Technical Product Specification
Intel order number C78845-001
Revision 1.0
September 2004
Enterprise Platforms and Services Marketing

Advertisement

Table of Contents
loading

Related Manuals for Intel SR2400

Summary of Contents for Intel SR2400

  • Page 1 Intel® Server Chassis SR2400 Technical Product Specification Intel order number C78845-001 Revision 1.0 September 2004 Enterprise Platforms and Services Marketing...

  • Page 2: Revision History

    Revision History Intel® Server Chassis SR2400 Revision History Date Revision Modifications Number Jan. 2004 0.52 Updated to reflect the Alpha hardware. First external release July 2004 Added iLCP, updated diagrams, updated backplane info, updated riser card info, increased over all detail.
  • Page 3 Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.

  • Page 4: Table Of Contents

    Table of Contents Intel® Server Chassis SR2400 Table of Contents 1. Product Overview......................... 1 Chassis Views ......................1 Chassis Dimensions ....................2 System Components ....................2 Hard Drive and Peripheral Bays ................4 Control Panel Options....................5 Power Sub-system....................6 System Cooling......................
  • Page 5 Intel® Server Chassis SR2400 Table of Contents 2.8.1 Power Supply Mating Connector ................15 2.8.2 Grounding ......................17 2.8.3 Standby Output / Standby Mode................17 2.8.4 Remote Sense ....................... 17 2.8.5 Power Module Output Power / Currents ..............17 2.8.6 +12V Outputs Load Requirements ................
  • Page 6 8.1.2 Server Board SE7520JR2 Feature Set..............69 Intel Server Board SE7320VP2 ................73 8.2.1 Intel Server Board SE7320VP2 SKU Availability ........... 73 8.2.2 Intel Server Board SE7320VP2 Feature Set ............73 9. Regulatory, Environmentals, and Specifications ............75 Revision 1.0...
  • Page 7 Korean RRL Compliance ..................78 Replacing the Back up Battery ................78 System Level Environmental Limits ............... 79 Serviceability and Availability................. 79 Regulated Specified Components ................. 80 Appendix A: SR2400 Integration and Usage Tips..............82 Revision 1.0 Intel order number C78845-001...
  • Page 8 Figure 10. Optional Front Bezel ....................7 Figure 11. Front Bezel Supporting Standard Control Panel............8 Figure 12. Front Bezel Supporting Intel Local Control Panel............8 Figure 13. Mechanical Drawing for Dual (1+1 configuration) PS enclosure with PDB....9 Figure 14. Power Module Edge Connector View ............... 16 Figure 15.
  • Page 9 Figure 38. Full Height Active PCI-X Riser Card ................68 Figure 39. Low Profile Passive PCI-X Riser Card............... 68 Figure 40. Intel® Server Board SE7520JR2 Board Layout............71 Figure 41. Intel® Server Board SE7320VP2 Board Layout ............74 Revision 1.0 Intel order number C78845-001...
  • Page 10 List of Tables Intel® Server Chassis SR2400 List of Tables Table 1. Chassis Dimensions ....................... 2 Table 2. Power Harness Cable Definitions ................. 10 Table 3. P1 Baseboard Power Connector .................. 11 Table 4. P2 Processor Power Connector..................11 Table 5. P3 Power Signal Connector..................12 Table 6.
  • Page 11 Intel® Server Chassis SR2400 List of Tables Table 36. SCSI Backplane Power Connector Pinout (J9)............39 Table 37. 7-pin SCSI power connector Pinout (J1)..............39 Table 38. 10-pin Redundant Fan Connector Pinout (J5) ............39 Table 39. 80-pin SCA-2 SCSI Interface Pinout (J9, J2, J10, J11, J12) ........40 Table 40.
  • Page 12 List of Tables Intel® Server Chassis SR2400 < This page intentionally left blank. > Revision 1.0 Intel order number C78845-001...

  • Page 13: Product Overview

    Product Overview Product Overview The Intel® Server Chassis SR2400 is a 2U server chassis that is designed to support the Intel® Server Board SE7520JR2 and Intel Server Board SE7320VP2. The baseboards and the chassis have feature sets that are designed to support the high-density server market. This chapter provides a high-level overview of the chassis features.

  • Page 14: Chassis Dimensions

    Product Overview Intel® Server Chassis SR2400 Chassis Dimensions Table 1. Chassis Dimensions 87.5 mm 3.445” Height 430 mm 16.930” Width 672 mm 26.457” Depth 27.22 kg 60 Lbs Max. Weight System Components Figure 4. Major Chassis Components Power Supply Modules...

  • Page 15: Figure 5. Back Panel Feature Overview

    Intel® Server Chassis SR2400 Product Overview The I/O connector locations on the back of the chassis are pre-cut, so the use of an I/O shield is not required. The supplied EMI gasket must be installed to maintain Electromagnetic Interference (EMI) compliance levels.

  • Page 16: Hard Drive And Peripheral Bays

    Intel® Server Chassis SR2400 Hard Drive and Peripheral Bays The SR2400 is designed to support several different hard drive and peripheral configurations. The system can be configured to support either hot swap SCSI or SATA drives, or can be configured to support cabled SATA drives. Each drive configuration requires an orderable kit which includes the necessary cables, drive trays and applicable backplane.

  • Page 17: Control Panel Options

    Product Overview Control Panel Options The Server Chassis SR2400 can support either of two control panels: a Standard Control Panel and an Intel® Local Control Panel with LCD support. The control panel assemblies are pre- assembled and modular in design. The entire module assembly slides into a predefined slot in the front of the chassis.

  • Page 18: Power Sub-System

    System Status LED NMI Buttom (Tool Required) USB 2.0 Port Note: The Intel Local Control Panel can only be used when either the Intel Management Module Professional Edition or Advanced Edition is installed in the system. Power Sub-system The power subsystem of the SR2400 consists of an integrated power share board and module enclosure which is capable of housing up to two 700 Watt power supply modules supporting 1+0 or redundant 1+1 power configurations.

  • Page 19: System Cooling

    200 - 240VAC∼ at 50/60 Hz; 4.5A maximum System Cooling The SR2400 has support for up to eight system fans in a modular 4+4 configuration. The bank of fans closest to the baseboard is the default configuration providing sufficient airflow for both cabled drive and hot-swap drive system configurations when external ambient temperatures remain within specified limits.

  • Page 20: Figure 11. Front Bezel Supporting Standard Control Panel

    Figure 11. Front Bezel Supporting Standard Control Panel When the Intel Local Control Panel is used, the control panel module can be adjusted to extend further out from the chassis face to allow the LCD panel to protrude from the front bezel.

  • Page 21: Power Sub-System

    Power Sub-system Power Sub-system The power sub-system of the SR2400 consists of an integrated Power Distribution Board (PDB) and Power Module Enclosure assembly, with support for up to two 700 Watt power supply modules. The power sub-system can be configured to support a single module in a 1+0 non- redundant configuration, or dual modules in a 1+1 redundant power configuration.

  • Page 22: Handle And Retention Mechanism

    Power Sub-system Intel® Server Chassis SR2400 Handle and Retention Mechanism Each power supply module includes a handle allowing for module insertion to or removal from the module enclosure. Each module has a simple retention mechanism to hold the power module in place once it is inserted. This mechanism will withstand the specified platform mechanical shock and vibration requirements.

  • Page 23: P1 - Baseboard Power Connector

    Intel® Server Chassis SR2400 Power Sub-system 2.6.1 P1 – Baseboard Power Connector • Connector Housing: 24-pin Molex Mini-Fit Jr. 39-01-2240 or equivalent. Contact: Molex 44476-1111 or equivalent Table 3. P1 Baseboard Power Connector 18 AWG SIGNALS 18 AWG COLOR SIGNAL COLORS +3.3 VDC...

  • Page 24: P3 - Power Signal Connector

    Power Sub-system Intel® Server Chassis SR2400 2.6.3 P3 – Power Signal Connector Connector housing: 5-pin Molex 50-57-9405 or equivalent Contacts: Molex 16-02-0088 or equivalent Table 5. P3 Power Signal Connector SIGNAL 24 AWG COLORS SMBus Clock (SCL) White /Green Stripe...

  • Page 25: Ac Inlet Connector

    Intel® Server Chassis SR2400 Power Sub-system 2.7.1 AC Inlet Connector The AC input connector is an IEC 320 C-14 power inlet. This inlet is rated for 15A / 250VAC. 2.7.2 Efficiency The power supply combo (PS+PDB) has a minimum efficiency of 80% at maximum load and over 100-240VAC line voltage range to guarantee proper power supply cooling while mounted in the system.

  • Page 26: Ac Line Fuse

    Power Sub-system Intel® Server Chassis SR2400 2.7.4.1 AC Line 5VSB Holdup The 5VSB output voltage should stay in regulation under its full load (static or dynamic) during an AC dropout of 70ms min (=5VSB holdup time) whether the power supply is in ON or OFF state (PSON asserted or de-asserted).

  • Page 27: Ac Line Fast Transient (Eft) Specification

    Intel® Server Chassis SR2400 Power Sub-system Table 10. AC Line Surge Transient Performance AC Line Surge Duration Surge Operating AC Voltage Line Frequency Performance Criteria Continuous Nominal AC Voltages 50/60Hz No loss of function or performance 0 to ½ AC...

  • Page 28: Figure 14. Power Module Edge Connector View

    Power Sub-system Intel® Server Chassis SR2400 Description Pin# Pin# Description Ground Ground Ground Ground Ground Ground Ground Ground Keying Notch +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V...

  • Page 29: Grounding

    Intel® Server Chassis SR2400 Power Sub-system 2.8.2 Grounding The ground of the pins of the PDB output connectors provides the power return path. The output connector ground pins are connected to safety ground (PDB enclosure). 2.8.3 Standby Output / Standby Mode The 5VSB output shall be present when an AC input greater than the power supply turn-on AC voltage is applied.

  • Page 30: +12V Outputs Load Requirements

    Power Sub-system Intel® Server Chassis SR2400 2.8.6 +12V Outputs Load Requirements This section describes the +12V output power requirements from the power distribution board with a either single or dual ERP700W power supply module plugged into the input of the power distribution board.

  • Page 31: Dc/Dc Converters Dynamic Loading

    Intel® Server Chassis SR2400 Power Sub-system 2.8.9 DC/DC Converters Dynamic Loading The output voltages shall remain within limits specified in the table above for the step loading and capacitive loading specified in the following table. The load transient repetition rate shall be tested between 50Hz and 5 kHz at duty cycles ranging from 10%-90%.

  • Page 32: Timing Requirements

    Power Sub-system Intel® Server Chassis SR2400 Table 18. Ripple and Noise +3.3V Output +5V Output -12V Output 50mVp-p 50mVp-p 120mVp-p 2.8.14 Timing Requirements These are the timing requirements for the PSM/PDB combo operation. The output voltages must rise from 10% to within regulation limits (T...

  • Page 33: Residual Voltage Immunity In Standby Mode

    Intel® Server Chassis SR2400 Power Sub-system Figure 15. Turn On/Off Timing (Power Supply/PDB combo Signals) 2.8.15 Residual Voltage Immunity in Standby Mode Each DC/DC converter is immune to any residual voltage placed on its respective output (typically a leakage voltage through the system from standby output) up to 1000mV. This...

  • Page 34: Over Voltage Protection (Ovp)

    Power Sub-system Intel® Server Chassis SR2400 Table 20. Over Current Protection Limits / 240VA Protection Output Voltage MIN OCP TRIP LIMITS MAX OCP TRIP LIMITS +3.3V 150% min (= 36A min) 187% max (= 45A max) 150% min (= 36A min)

  • Page 35: Over Temperature Protection (Otp)

    Intel® Server Chassis SR2400 Power Sub-system Table 23. Power Module Over Voltage Protection Limits Output Voltage OVP MIN (V) OVP MAX (V) +12V 13.0 14.0 +5Vsb 2.9.3 Over Temperature Protection (OTP) The power supply will be protected against over temperature conditions caused by loss of fan cooling or excessive ambient temperature.

  • Page 36: Hot Plug I2C Requirements

    Power Sub-system Intel® Server Chassis SR2400 For non-redundant 1+0 configuration: If the power supply fails due to over temperature shutdown, over current shutdown, over power shutdown, or fan failure: the LED, SMBAlert signal, and critical event registers, shall still operate correctly. If the supply fails due to loss of AC or open fuse, then the LED and signals will have no power and therefore will not operate.

  • Page 37: Cooling Subsystem

    Intel® Server Chassis SR2400 Cooling Subsystem Cooling Subsystem A 4+4 system fan module, the power supply fans, air baffle, CPU air duct and drive bay population are the necessary components to provide the system with the necessary air flow and air pressure to maintain the system’s thermals when operating at or below maximum specified...

  • Page 38: Table 26. 24-Pin Fan Control Connector Pinout (J3K6, J8C1)

    Cooling Subsystem Intel® Server Chassis SR2400 Table 26. 24-pin Fan Control Connector Pinout (J3K6, J8C1) 24-pin connector on Baseboard (J3K6) 24-pin connector on FDB (J8C1) Signal Name Signal Name BB_LED_FAN4_R BB_LED_FAN6_R BB_LED_FAN2_R BB_LED_FAN8_R BB_LED_FAN3_R BB_LED_FAN5_R BB_LED_FAN1_R BB_LED_FAN7_R FAN_TACH_8 FAN_SPEED_CNTL2 FAN_TACH_4...

  • Page 39: Fan Redundancy

    A failed fan should be replaced as soon as possible. With no Intel Management Module installed, a 4+4 fan configuration can be used but is not recommended due to increased acoustics. Fans will operate faster with little cooling benefit. In this configuration there is no fan redundancy.

  • Page 40: Air Flow Support

    Intel® Server Chassis SR2400 Air Flow Support To control airflow within the system, the Server Chassis SR2400 uses a combination air baffle and CPU Air Duct to isolate and direct airflow to three critical areas or zones: the Power Supply Zone, the Full Height PCI Zone, and the CPU/Memory/Low Profile PCI Zone.

  • Page 41: Drive Bay Population

    Figure 19. Drive Blank Peripheral and Hard Drive Support The SR2400 server chassis can be configured to support several different types of hard drive and peripheral configurations. The chassis can support up to five hard disk drives, a slim-line optical or floppy drive, and an optional 6 hard drive or tape drive.

  • Page 42: Table 29. 4-Pin Floppy Power Connector Pinout (J3)

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Name Name 2M_MEDIA FD_MTR0_L FD_RDATA_L Unused FD_DIR_L FD_HDSEL_L FD_DENSEL0 FD_STEP_L 4.1.1.2 Floppy Drive Use with No Backplane Present When no backplane is present, an interposer card is attached to the floppy drive providing power and IO interconnects between the drive, power supply and baseboard.

  • Page 43: Ide Optical Drive Support

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support 4.1.1.3 Optional Floppy Drive Configuration For system configurations that require both Optical and Floppy drives, where using a USB Floppy or USB CDROM is not desired or feasible, an accessory kit is available which allows a slim-line floppy drive to be mounted into the hard drive bay directly beneath the slim-line bay as shown in the following diagram.

  • Page 44: Table 32. 44-Pin Internal Drive Interposer-To-Backplane Connector Pinout (J6)

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Unused (50 pin or 52 pin) The second connector located on the opposite side of the PCB from the first, has 44 pins and is cabled directly to a matching connector on the backplane. The pinout for this connector is defined in the following table.

  • Page 45: Hard Disk Drive Bays

    IDE_SEC_HD_ACT_L Hard Disk Drive Bays The Server Chassis SR2400 can be configured to support 5 (default) + 1 optional hot swap SCSI or SATA hard disk drives or 3 SATA cabled hard disk drive configurations. For hot swap drive configurations, 3.5” x 1” hard disk drives are mounted to hot swap drive trays for easy insertion to or extraction from the drive bay.

  • Page 46: Fixed Mount Drive Trays

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 OM11684 Figure 21. Hard Drive Tray Assembly A. Hard Drive B. Drive Carrier C. Side Rail D. Mounting Screw E. Hard Drive Connector 4.2.2 Fixed Mount Drive Trays In a cabled SATA drive configuration, each hard drive must be mounted to a fixed mount drive tray.

  • Page 47: Hot-Swap Scsi Backplane

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support Hot-Swap SCSI Backplane The Server Chassis SR2400 supports a multifunctional SCSI Backplane, designed around the QLogic® GEM359 enclosure management controller and provides the following feature set and functionality: ® • QLogic...

  • Page 48: Scsi Backplane Functional Architecture

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Note: To prevent the backplane from flexing when installing or removing hard drives from the drive bay, the system top cover must be on the system. Having the top cover installed will ensure the drives attach securely to the drive connectors on the backplane.
  • Page 49 Intel® Server Chassis SR2400 Peripheral and Hard Drive Support providing management data to a baseboard management controller through the 100-pin connector. The GEM359 comes in a 144-pin Low profile Quad Flat Pack package and operates from 3.3V and has an input clock frequency of 10MHz. It has general input and output pins that allow customization.

  • Page 50: Scsi Backplane Connector Definitions

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Figure 25. SCSI I2C Block Diagram 4.3.2.1.3 Temperature Sensor The SCSI HSBP provides a National LM75 or equivalent temperature sensor with over- temperature detector. The host can query the LM75 at any time to read the temperature. The host can program both the temperature alarm threshold and the temperature at which the alarm condition goes away.

  • Page 51: Table 36. Scsi Backplane Power Connector Pinout (J9)

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support A 6-pin power cable from the power supply harness is routed to the backplane and plugs into a 2x3 shrouded plastic PC power connector. The following table provides the connector pinout.

  • Page 52: Figure 26. 80-Pn Sca2 Connector

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 signals using a single connector. An optional sixth drive connector can be added by installing the 6 Drive Option Kit. Each SCA drive attaches to the backplane using one of these connectors.

  • Page 53: Figure 27. 68-Pin Scsi Cable Connector

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support 4.3.3.4 Serverboard to SCSI Interconnect A 68-pin SCSI cable is used to interface the SCSI backplane with either the on-board SCSI channel of the server board or an add-in PCI SCSI controller.

  • Page 54: Table 41. 100-Pin Floppy / Cp / Cd-Rom / Video Connector Pinout (J6)

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Table 41. 100-pin Floppy / CP / CD-ROM / Video Connector Pinout (J6) Name Name V_IO_VSYNC_BUFF_FP_L V_IO_RED_CONN_FP V_IO_HSYNC_BUFF_FP_L V_IO_GREEN_CONN_FP 1_WIRE_BUS V_IO_BLUE_CONN_FP EMP_DCD2_L VIDEO_IN_USE EMP_CTS2_L EMP_DTR2_L EMP_SOUT2 EMP_RTS2_L EMP_IN_USE EMP_SIN2 NIC2_ACT_LED_L EMP_DSR2_L...

  • Page 55: Table 42. 28-Pin Floppy Connector Pinout (J15)

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support 4.3.3.6 Floppy Drive Connector With a slim-line floppy drive installed into either the slim-line drive bay or the optionally installed floppy drive kit located in one of the hard drive bays, the floppy cable is routed to a 28-pin connector on the backplane.

  • Page 56: Optional 6 Th Scsi Drive

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 4.3.3.8 Control Panel Interface Connector The SCSI backplane provides a pathway for control panel signals from the high density 100-pin connector to a 50-pin control panel connector. The pin-out for the connector is shown in the following table.

  • Page 57: Hot-Swap Sata Backplane

    Drive assembly, including: PCB, bracket, power cable, and SCSI BP to Add-in Board cable are available in on optional accessory kit. Hot-Swap SATA Backplane The SR2400 server chassis supports a multifunctional SATA Backplane designed around the QLogic GEM424 enclosure management controller. The following features and functions are supported: ®...

  • Page 58: Sata Backplane Functional Architecture

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Figure 28. SATA Backplane Layout Table 46. SATA Backplane Layout Reference Descriptions Reference Description Floppy Drive Connector IDE Optical Drive Connector Hot Swap SATA Drive Connectors Hot Swap SATA Drive Add-in Module (Optional)

  • Page 59: Figure 29. Sata Backplane Functional Block Diagram

    The Intelligent Platform Management Bus (IPMB) is supported through I C port 0. The figure below provides a block diagram of I C bus connection implemented on the SR2400 2U SATA HSBP. Revision 1.0 Intel order number C78845-001...

  • Page 60: Leds

    Activity and Fault LED functions are only available when a SATA host controller that supports the SAF-TE protocol over I C is connected to the SR2400 2U SATA HSBP via the SATA Host C connector, J7M3. Table 47. SATA LED Function Definitions...

  • Page 61: Sata Backplane Connectors

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support GREEN ON HDD Activity AMBER ON HDD Fault AMBER Blinking Rebuild in Progress 4.4.4 SATA Backplane Connectors As a multifunctional board, several different connectors can be found on the SATA backplane.

  • Page 62: Table 51. 10-Pin Redundant Fan Connector Pinout (J5)

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 The power cable for this connector is provided with the Tape Drive Accessory Kit. 4.4.4.2 Redundant Fan Power Connector The SATA backplane provides two pulse width modulated (PWM) power outputs to control the optional bank of four system fans.

  • Page 63: Table 54. 100-Pin Floppy/Fp/Ide/Video Connector

    Intel® Server Chassis SR2400 Peripheral and Hard Drive Support Name Name DRV_RX_N SCSI+5V SCSI+5V DRV_TX_P DRV_TX_N Unused P3V3 SCSI+12V P3V3 SCSI+12V P3V3 SCSI+12V 4.4.4.5 Baseboard to Floppy/FP/IDE/Video Interface As a multifunctional board, the SATA backplane provides a pathway for Floppy Disk, Control Panel and CD-ROM signals from the server board to connector interfaces for each of the devices.

  • Page 64: Optional 6 Th Sata Drive Board Functional Architecture

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Name Name IDE_SDD<4> IDE_SDD<12> IDE_SDD<3> IDE_SDD<13> IDE_SDD<2> IDE_SDD<14> IDE_SDD<1> IDE_SDD<15> IDE_SDD<0> IDE_SDDREQ IDE_SDIOW_L IDE_SDDACK_L IDE_SDIOR_L IDE_SDA<1> IDE_SIORDY IDE_SDA<0> IRQ_IDE_S IDE_SDCS0_L IDE_SDA<2> IDE_SEC_HD_ACT_L IDE_SDCS1_L FAN_PWM1 FAN5_TACH R_FAN_PRESENT FAN6_TACH FAN5_ERR_LED FAN7_TACH FAN6_ERR_LED FAN8_TACH...
  • Page 65 Intel® Server Chassis SR2400 Peripheral and Hard Drive Support PCB with power and interface connectors, and a mounting bracket allowing for the add-in card to slide into a fitted cut out on the existing backplane. The 6 SATA hard drive is fully hot swappable. The 6 drive add-in card has similar drive connectors to those of the SATA backplane.

  • Page 66: Optional Tape Drive Or

    Peripheral and Hard Drive Support Intel® Server Chassis SR2400 Optional Tape Drive or 6 Hard Drive Bay For system configurations that require either a Tape Drive or a 6 hard disk drive, a dual purpose drive bay is available. By default this drive bay is covered by two face plates as shown in the following diagram.

  • Page 67: Standard Control Panel

    Intel® Server Chassis SR2400 Standard Control Panel Standard Control Panel The standard control panel supports several push buttons and status LEDs, along with USB and video ports to centralize system control, monitoring, and accessibility to within a common compact design.

  • Page 68: Control Panel Led Indicators

    Standard Control Panel Intel® Server Chassis SR2400 Table 56. Contol Button and Intrusion Switch Functions Reference Feature Function Power / Sleep Toggles the system power on/off. This button also functions as a Sleep Button if Button enabled by an ACPI-compliant operating system.

  • Page 69: Power / Sleep Led

    5.2.2 System Status LED Note: Some of the following status conditions may or may not be reported if the system is not configured with an Intel Management Module. Refer to the baseboard technical product specification for details. 5.2.2.1 Critical Conditions...

  • Page 70: Drive Activity Led

    Standard Control Panel Intel® Server Chassis SR2400 5.2.2.2 Non-Critical Conditions A non-critical condition is threshold crossing associated with the following events: • Temperature, voltage, or fan non-critical threshold crossing • Chassis intrusion • Satellite controller sends a non-critical state, via the Set Fault Indication command, to the BMC.

  • Page 71: Internal Control Panel Assembly Headers

    Intel® Server Chassis SR2400 Standard Control Panel Table 60. Video Connector (J1A1) Description Pin # Pin # Description VGA_RED VGA_GREEN VGA_BLUE Unused Unused VGA_DDCDAT VGA_HSYNC_L VGA_VSYNC_L VGA_INUSE_L VGA_DDCCLK If a monitor is connected to the control panel video connector, the rear video port on the server board will be disabled and the control panel video will be enabled.

  • Page 72: Table 62. Internal Usb Header (J2B1)

    Standard Control Panel Intel® Server Chassis SR2400 Description Pin # Pin # Description VGA_RED_FP A 10-pin USB header provides control for one USB port from the server board. Table 62. Internal USB Header (J2B1) Pin # Description PWR_FP_USB2 PWR_FP_USB3 USB_DP2_FP...

  • Page 73: Intel® Local Control Panel

    Figure 34. Intel Local Control Panel Assembly Module Note: The Intel Local Control Panel can only be used when either the Intel Management Module Professional Edition or Advanced Edition is installed in the system.

  • Page 74: Led Functionality

    Intel® Local Control Panel Intel® Server Chassis SR2400 LED Functionality The following table identifies each LED and describes their functionality. Table 63. Control Panel LED Functions Color State Description NIC1 / NIC2 Green NIC Link Activity Green Blink NIC Activity...

  • Page 75: Drive Activity Led

    Intel® Server Chassis SR2400 Intel® Local Control Panel • Temperature, voltage, or fan critical threshold crossing. • Power subsystem failure. The BMC asserts this failure whenever it detects a power control fault (e.g., the BMC detects that the system power is remaining ON even though the BMC has deserted the signal to turn off power to the system.

  • Page 76: Table 65. 50-Pin Control Panel Connector

    Intel® Local Control Panel Intel® Server Chassis SR2400 • A 10-pin header is used to provide USB support to the control panel. The round 10-pin cable is routed from the control panel assembly to a matching connector on the baseboard.

  • Page 77: Table 67. Ipmi Header

    Intel® Server Chassis SR2400 Intel® Local Control Panel Table 67. IPMI Header Description IPMB_5VSB_SDA IPMB_5VSB_SCL P5V_STBY Table 68. Internal NMI/Temp Sensor Header Pin # Description Revision 1.0 Intel order number C78845-001...

  • Page 78: Pci Riser Cards And Assembly

    Intel® Server Chassis SR2400 PCI Riser Cards and Assembly The Server Chassis SR2400 supports different riser card options depending on the add-in card configuration desired. The riser assembly for the Server Chassis SR2400 is tool-less. Stand-offs on the bracket allow the riser cards to slide onto the assembly where a latching mechanism than holds each riser in place.

  • Page 79: Pci Riser Card Mechanical Drawings

    Intel® Server Chassis SR2400 PCI Riser Cards and Assembly PCI Riser Card Mechanical Drawings Figure 36. Full Height PCI-Express Riser Card Figure 37. Full Height Passive PCI-X Riser Card Revision 1.0 Intel order number C78845-001...

  • Page 80: Figure 38. Full Height Active Pci-X Riser Card

    PCI Riser Cards and Assembly Intel® Server Chassis SR2400 Figure 38. Full Height Active PCI-X Riser Card Figure 39. Low Profile Passive PCI-X Riser Card Revision 1.0 Intel order number C78845-001...

  • Page 81: Supported Intel® Server Boards

    Supported Intel® Server Boards Supported Intel® Server Boards The Server Chassis SR2400 is mechanically and functionally designed to support the Intel® Server Board SE7520JR2.and Intel Server Board SE7320VP2. The following sections provide an overview of the baseboard feature sets. The Technical Product Specification for each server board should be referenced for more detailed information.
  • Page 82 One floppy connector o SSI-compliant and custom control panel headers o SSI-compliant 24-pin main power connector. This supports ATX-12V standard in the first 20 pins o Intel® Management Module (IMM) connector ® • Intel Light-Guided Diagnostics on all FRU devices (processors, memory, power) •...

  • Page 83: Figure 40. Intel® Server Board Se7520Jr2 Board Layout

    Intel® Server Chassis SR2400 Supported Intel® Server Boards Figure 40. Intel® Server Board SE7520JR2 Board Layout Revision 1.0 Intel order number C78845-001...

  • Page 84: Table 69. Baseboard Layout Reference

    Supported Intel® Server Boards Intel® Server Chassis SR2400 Table 69. Baseboard Layout Reference Ref # Description Ref # Description (J1A1) 2-Pin Chassis Intrusion Header (J1A2) 2-Pin Hard Drive Act LED Header CPU #2 Fan Header (J1A4) Rolling BIOS Jumper 10-Pin DH10 Serial A Header...

  • Page 85: Intel Server Board Se7320Vp2

    Intel E7320 Chipset (MCH, 6300ESB ICH) • Two PCI riser slots Full Height Riser Slot: “Intel® Adaptive Slot Technology”. Depending on the riser used, is capable of supporting full height PCI-X 66MHz cards (with Passive Riser), or one x4 PCI-Express card (with PCI-Express Riser).

  • Page 86: Figure 41. Intel® Server Board Se7320Vp2 Board Layout

    Supported Intel® Server Boards Intel® Server Chassis SR2400 Figure 41. Intel® Server Board SE7320VP2 Board Layout Revision 1.0 Intel order number C78845-001...

  • Page 87: Regulatory, Environmentals, And Specifications

    The SR2400 has been tested and verified to comply with the following electromagnetic compatibility (EMC) regulations when installed a compatible Intel host system. For information on compatible host system(s) refer to Intel’s Server Builder website or contact your local Intel representative.

  • Page 88: Product Regulatory Compliance Markings

    Regulatory, Environmentals, and Specifications Intel® Server Chassis SR2400 9.1.3 Product Regulatory Compliance Markings This product is provided with the following Product Certification Markings. Regulatory Compliance Country Marking cULus Listing Marks USA/Canada GS Mark Germany CE Mark Europe FCC Marking (Class A)

  • Page 89: Fcc Verification Statement

    Intel® Server Chassis SR2400 Regulatory, Environmentals, and Specifications Intel Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124 1-800-628-8686 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 90: Japan Emc Compatibility

    English translation of the notice above: 1. Type of Equipment (Model Name): On License and Product 2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative 3. Name of Certification Recipient: Intel Corporation 4. Date of Manufacturer: Refer to date code on product 5.

  • Page 91: System Level Environmental Limits

    Vibration, unpackaged 5 Hz to 500 Hz, 2.20 g RMS random Shock, operating Half sine, 2 g peak, 11 mSec +/-15kV except I/O port +/-8KV per Intel Environmental test specification System Cooling 1826 BTU/hour Requirement in BTU/Hr Serviceability and Availability The system is designed to be serviced by qualified technical personnel only.

  • Page 92: Regulated Specified Components

    URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel’s Web address, please contact your local Intel representative. Server Chassis (base chassis is provided with power supply and fans)UL listed. Server boardyou must use an Intel server board—UL recognized.
  • Page 93 Intel® Server Chassis SR2400 Regulatory, Environmentals, and Specifications < This page intentionally left blank > Revision 1.0 Intel order number C78845-001...

  • Page 94: Appendix A: Sr2400 Integration And Usage Tips

    Intel® Server Chassis SR2400 Appendix A: SR2400 Integration and Usage Tips This appendix provides a list of useful information that is unique to the SR2400 server chassis and should be kept in mind while integrating and configuring your system. •...
