Hardware Installations and Upgrades
11. For each drive you install, route one SATA data cable from the server board or add-in card to
the hard drive, with the right-angle end of the SATA data cable connected to the server board
or add-in card SATA connector. See letter "B" in the figure below and see your server board
documentation or add-in card documentation for assistance in locating the SATA connectors on
the board or add-in card.
12. See letters "C" and "D" in the following figure and the arrow that leads from these letters to the
component in the chassis. This component is the air baffle that is referred to in the following
steps. The letters "C" and "D" point to the cutouts that are referred to in the step below.
13. Data cables for drives installed to the right of the air baffle must be routed through the two
cutouts at the bottom of the air baffle (letters "C" and "D" in the figure). The data cable for
drives installed to the left of the air baffle must be routed through the rear cutout of the air
baffle (letter "D"). You may need to remove the air baffle to route the cables underneath it. To
see how to remove and then install the air baffle, see
(No Backplane
Installed)."
14. Connect the remaining end of the SATA data cable to the back of the SATA drive. See letter
"A" in the figure below.
Intel® Server Chassis SR2400/SR2400DC User Guide
Installed)" and "Installing the Fixed Drive Air Baffle (No Backplane
A
* Air baffle for AC model shown; air baffle for DC model differs.

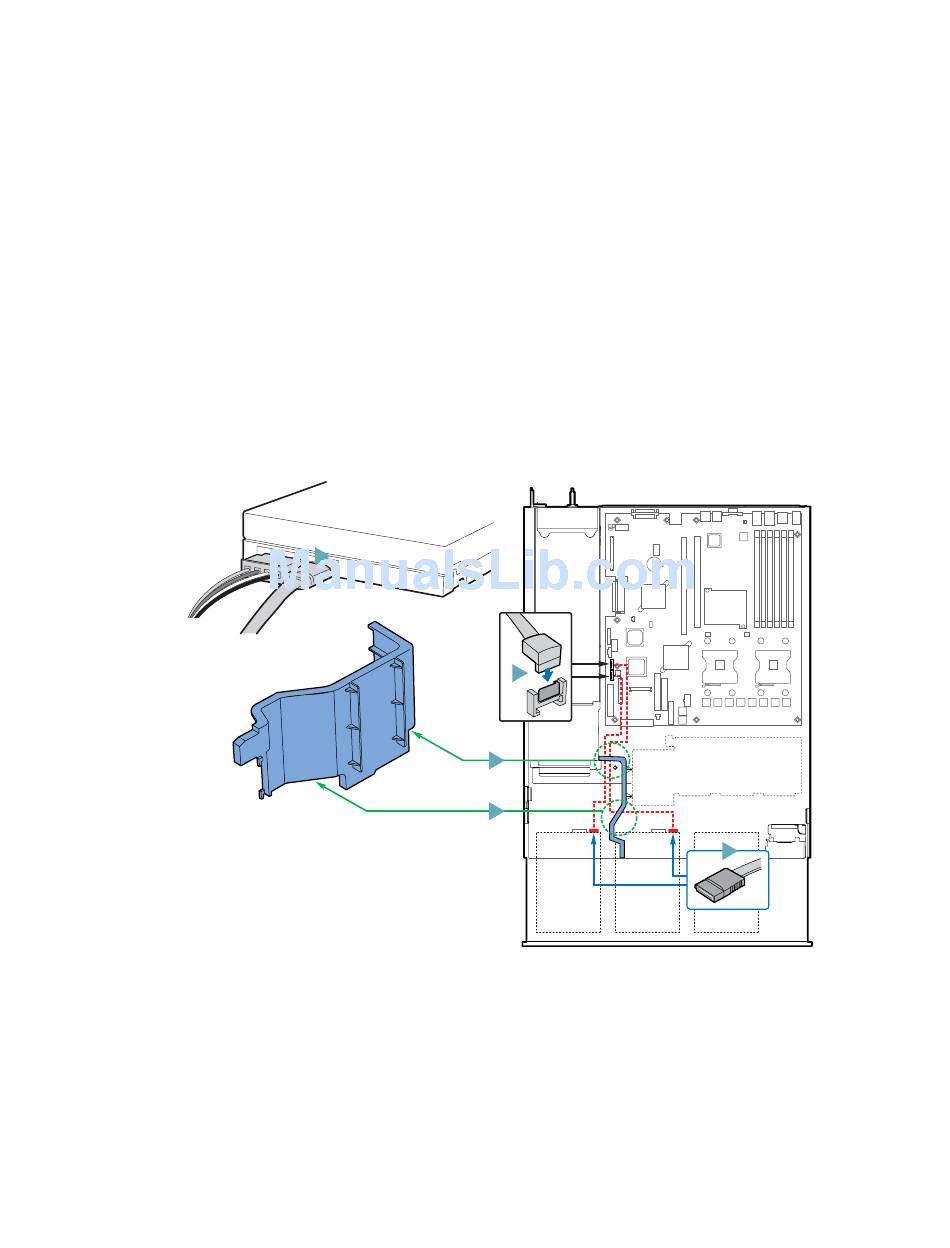

Figure 35. Installing the Fixed SATA Drive Data Cables

"Removing the Fixed Drive Air Baffle
B
D
C
A
TP01324
39
