Installing Floppy Drive into Slimline Bay (No Backplane Installed)

✏
NOTE
The carrier for the slimline floppy drive that is used in these instructions was
sent to you in the hardware kit that came with your Server Chassis
SR2400/2400DC. The interposer board and floppy drive power adapter cable
used in these instructions was sent to you with your fixed drive kit.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information."
2. Power down the server and unplug all peripheral devices and the AC power cable or DC
external source.
3. Remove the chassis cover. For instructions, see
4. Remove the front bezel if it is installed. For instructions, see
5. Align the two holes at the left side of the floppy drive with the two cutouts in the floppy drive
carrier. See letter "A" in the figure below.
6. Lower the right side of the floppy drive into the carrier until it clicks into place. See letter "B"
in the figure below.

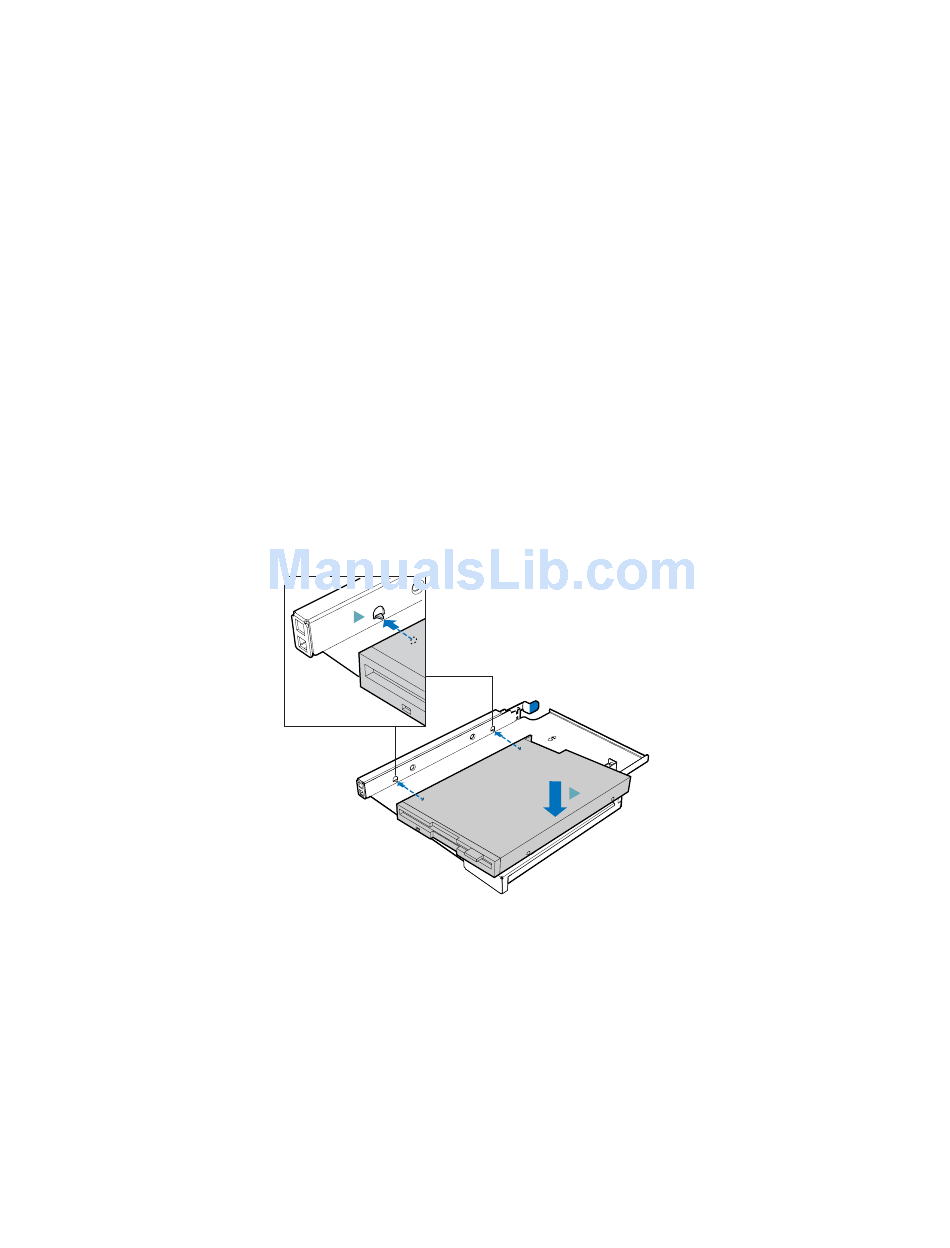

Figure 42. Installing a Slimline Floppy Drive into the Carrier

48
"Removing the Chassis Cover."
A
"Safety
"Removing the Front Bezel."
B
TP01082
