Figure 36. Installing The Fixed Sata Drive Power Cables - Intel SR2400SYS - Server Platform - 0 MB RAM User Manual

15. Power cables for drives installed to the right side of the air baffle must be routed beneath the
front cutout in the underside of the air baffle. See letter "B" in the figure below. The power
cables for drives installed to the left of the air baffle do not need to be routed under the air
baffle. You may need to remove the air baffle to route cables underneath it. To see how to
remove and then install the air baffle, see
Backplane Installed)" and
16. Connect the SATA power cable adapter end(s) to the rear of the SATA drive. See letter "A" in
the figure below to locate the connector on the SATA drive.
17. Install the chassis cover. For instructions, see
18. Install the front bezel. For instructions, see
40
"Installing the Fixed Drive Air Baffle (No Backplane
A
* Air baffle for AC model shown; air baffle for DC model differs.

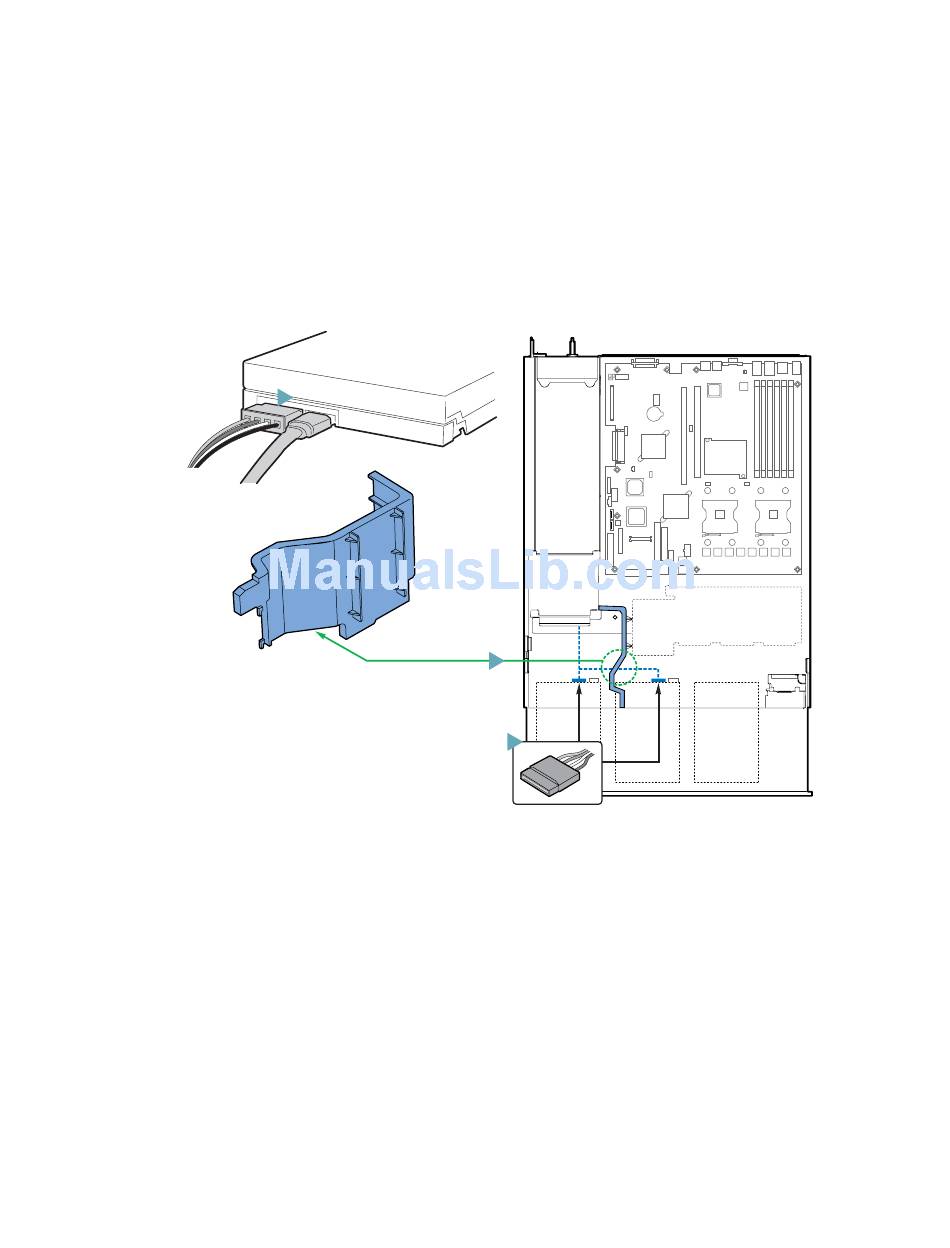

Figure 36. Installing the Fixed SATA Drive Power Cables

"Removing the Fixed Drive Air Baffle (No
"Removing the Chassis Cover."
"Removing and Installing the Front Bezel."
B
A
Installed).".
TP01325
