9. Insert the drive into the bay until it clicks into place. Install drives first into the lower three
drive bays for the easiest cable routing.
10. If it is not already installed, connect the SATA power cable adapter to the 3x2 power supply
cable that extends from your power supply. See letters "A" and "B" in the figure below. The
power cable adapter was provided to you with the fixed drive kit.
38
B
A

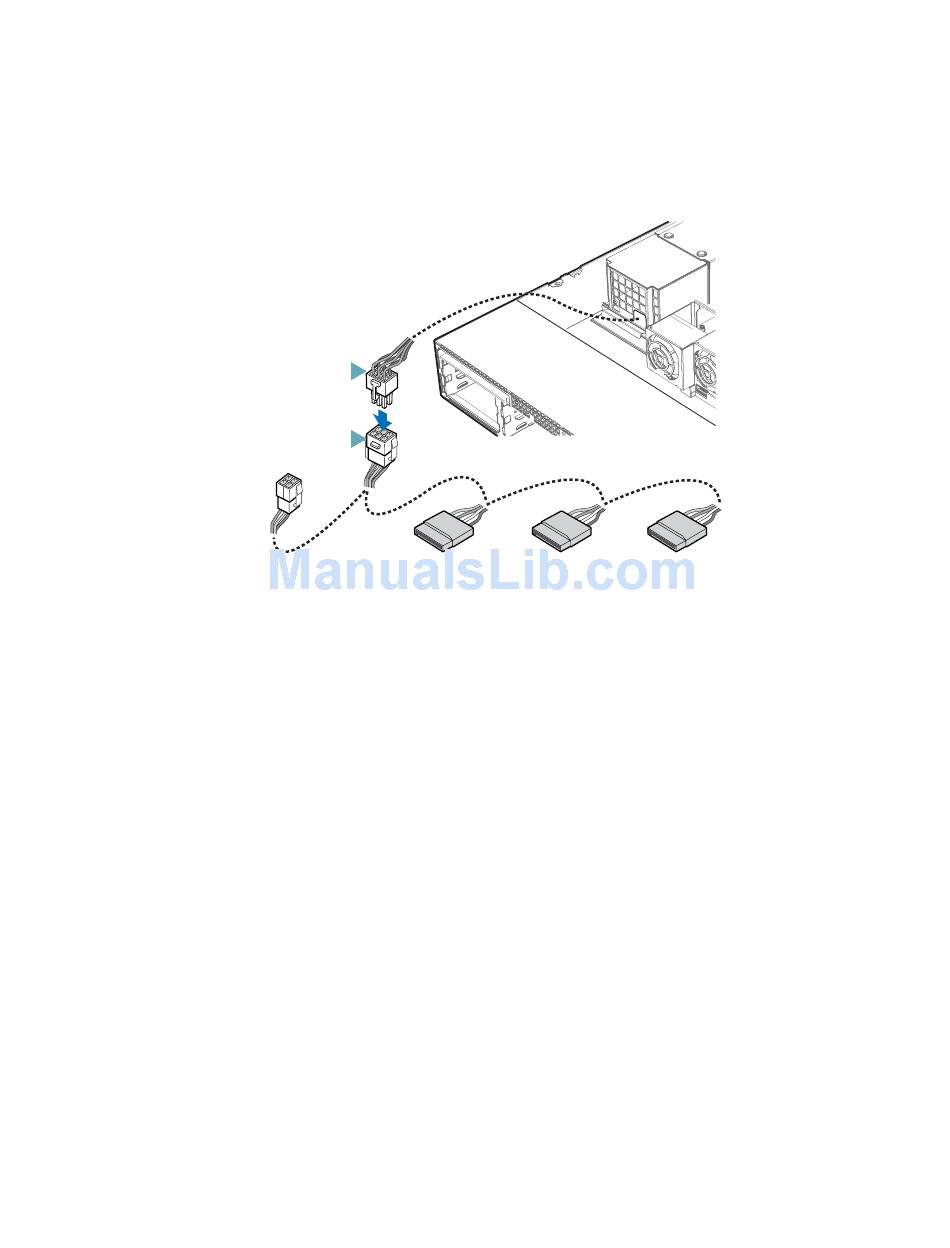

Figure 34. Installing the Fixed SATA Drive Power Cables
TP01161
