Removing and Installing the Front Bezel

The front bezels are available as optional accessories for the Server Chassis SR2400. Two front
bezel options are available. One is used for the Standard Control Panel and the other is used with
®
the Intel
Local Control Panel. The installation steps are the same for both bezels. If you are
installing a bezel on your chassis, make sure you position it with the control panel area at the top
right.

Removing the Front Bezel

Use the steps below if your system includes either the standard front bezel or the front bezel for the
Intel Local Control Panel.
1. Unlock the bezel.
2. Disconnect any cables attached to the front of the control panel.
3. Pull the bezel out from the chassis.
16

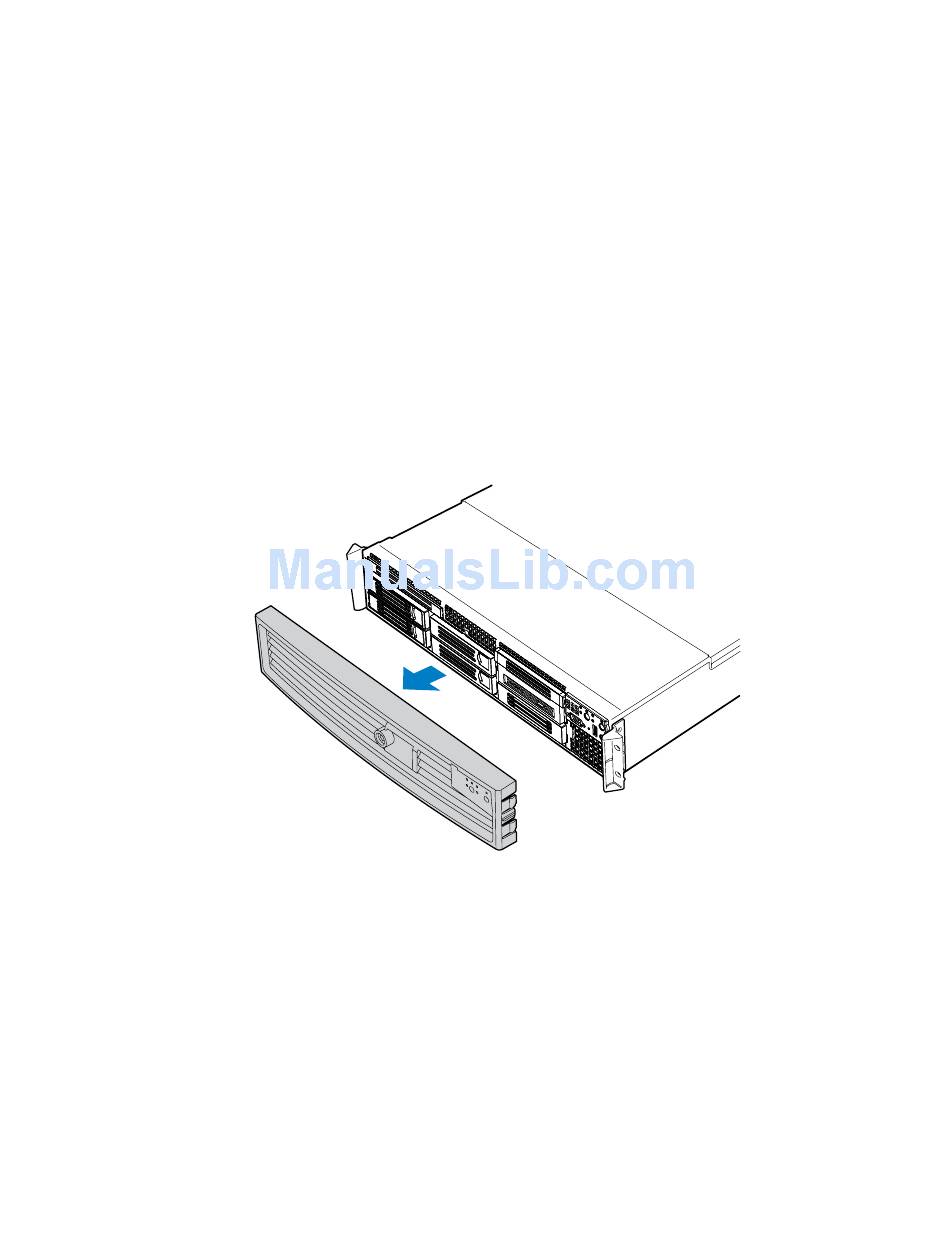

Figure 11. Removing the Front Bezel

TP01344
