Hardware Installations and Upgrades
7. Set the riser assembly straight down, matching the hooks in the back of the riser assembly to
the notches in the rear of the chassis. See the figure below.
8. Press firmly to push the riser into the slots on the server board.
9. Install the processor air duct. For instructions, see
10. Install the chassis cover. For instructions, see

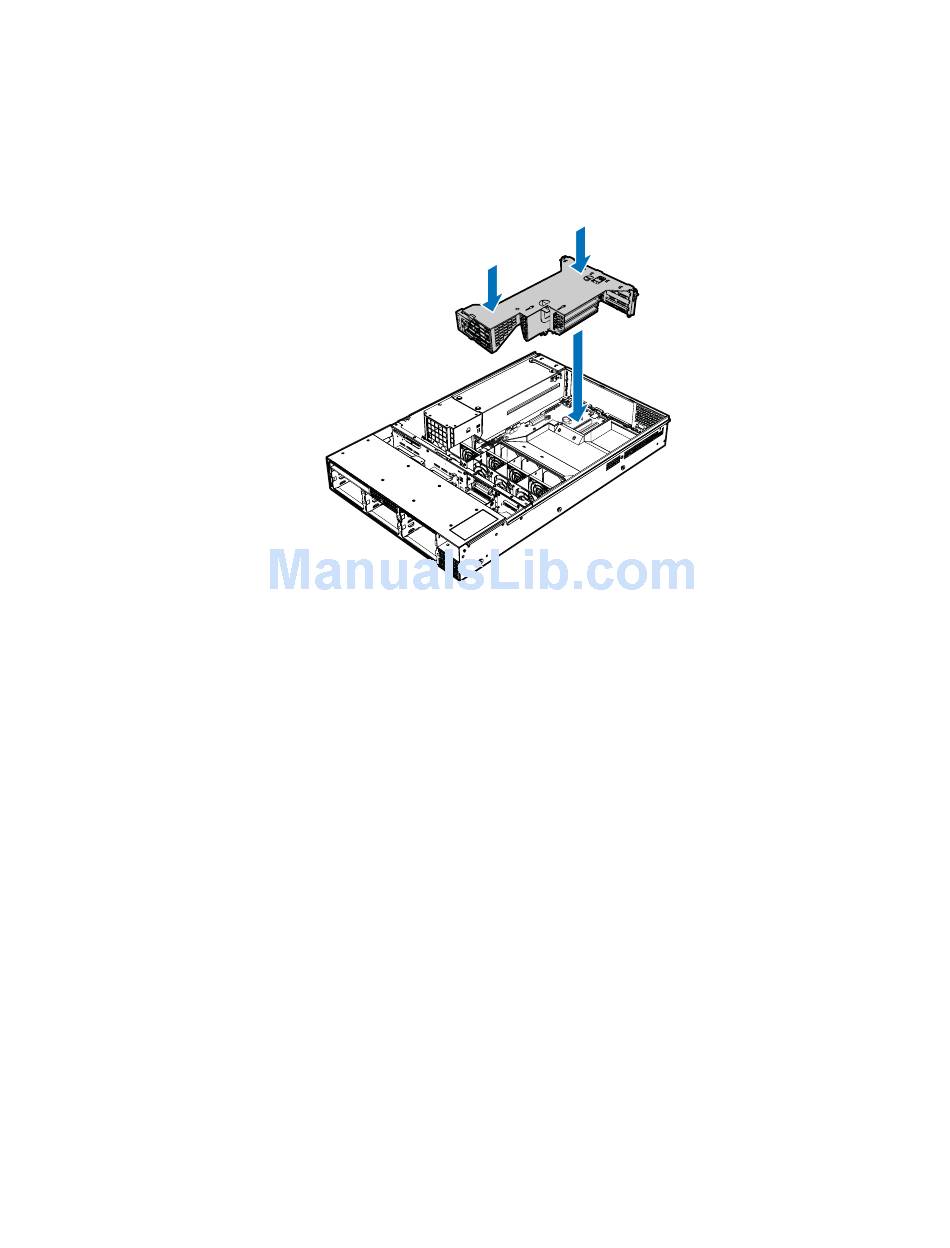

Figure 57. Installing the PCI Riser Assembly into the Chassis

Installing and Removing a PCI Riser Connector

The PCI riser connectors can be replaced if one fails or if a different option is required. To replace a
PCI riser connector, use the instructions under
connector, and then follow the instructions under
new riser connector.
NOTE
To eliminate the possibility of installing the replacement connectors on the
wrong side of the PCI riser assembly, replace one connector at a time.
Intel® Server Chassis SR2400/SR2400DC User Guide
"Installing the Processor Air
"Installing the Chassis Cover."
TP01112
"Removing a PCI Riser Connector" to remove a
"Installing the PCI Riser Assembly"
Duct"
to install a
65
