7. (SATA installation only): Connect the SATA cable(s) labeled SATA CH A and SATA CH B to
the backplane. See letter "A" in the figure below to locate the backplane. See letter "B" in the
figure to identify the end of the SATA cable that is attached to the backplane. In the figure
below, the SATA board showing the SATA cable connections is shown as if you were looking
at the chassis from the rear.
8. (SATA installation only): If you will be using the SATA connections on the server board,
connect the 90-degree end of the SATA cable(s) to the corresponding server board
connection(s). The cable connected to SATA CH A should be connected to SATA 0. The cable
connected to SATA CH B should be connected to SATA 1. See letter "C" in the figure below
to identify the end of the SATA cable that is attached to the server board. See your server board
documentation to locate the SATA connection points on the server board.
If you will be using an add-in SATA RAID controller, connect SATA CH A through SATA
CH E to the appropriate connectors on the add-in card. See your add-in card documentation for
the appropriate SATA connections.
C
A
34

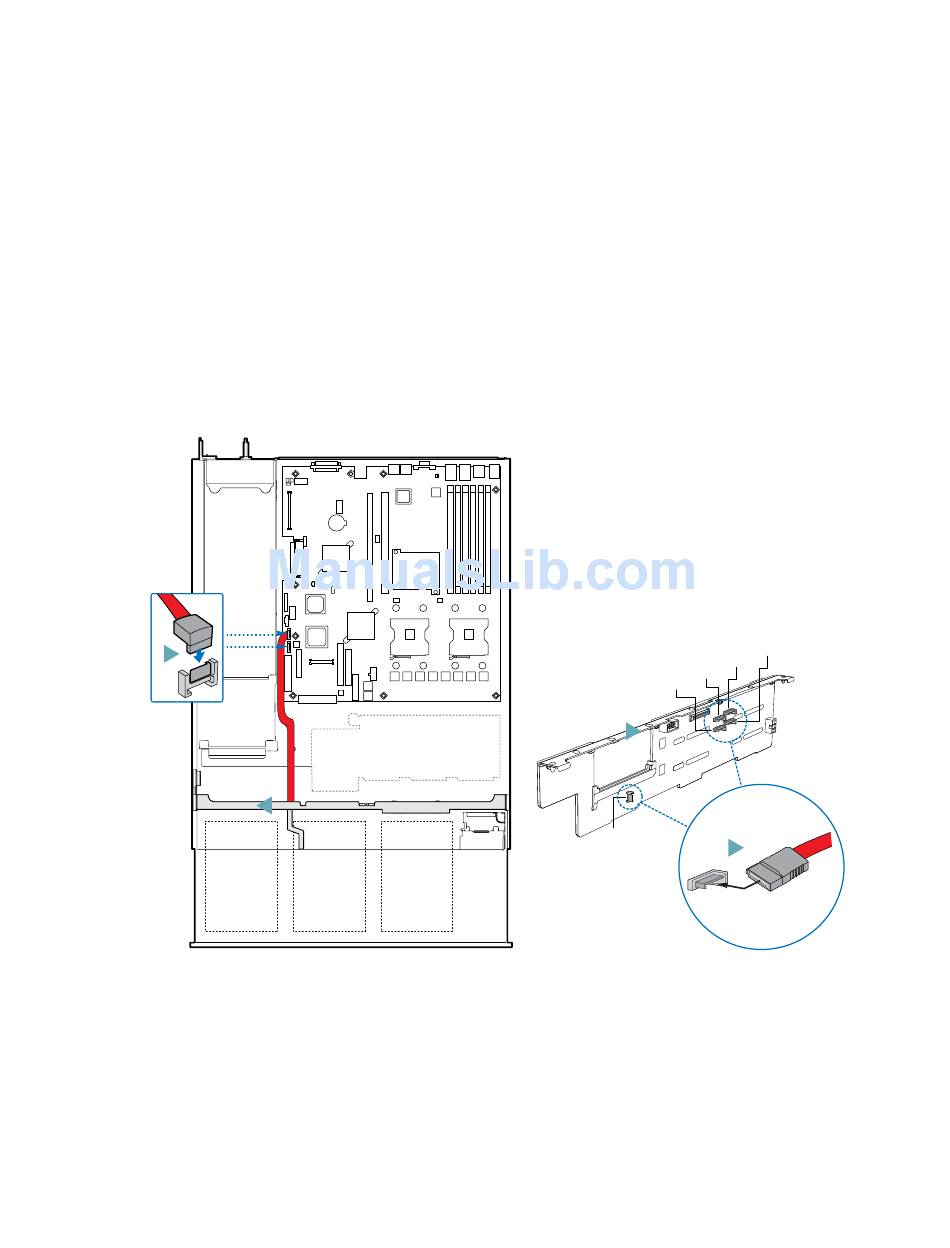

Figure 29. Connecting the Hot-swap SATA Data Cables
