Removing a PCI Riser Connector

1. Observe the safety and ESD precautions at the beginning of this book. See
Information."
2. Power down the server and unplug all peripheral devices and the AC power cable or DC
external source.
3. Remove the chassis cover. For instructions, see
4. Remove processor air duct. For instructions, see
5. Remove the PCI riser assembly. For instructions, see
6. Remove any installed PCI add-in cards. For instructions, see
7. Push back on the blue release lever at the end of one of the riser connectors. See letter "A" in
the figure below.
8. While holding the lever back, push firmly on the edge of the board, sliding it toward the rear of
the riser module, to disengage the connector from the riser pin. See letter "B" in the figure.

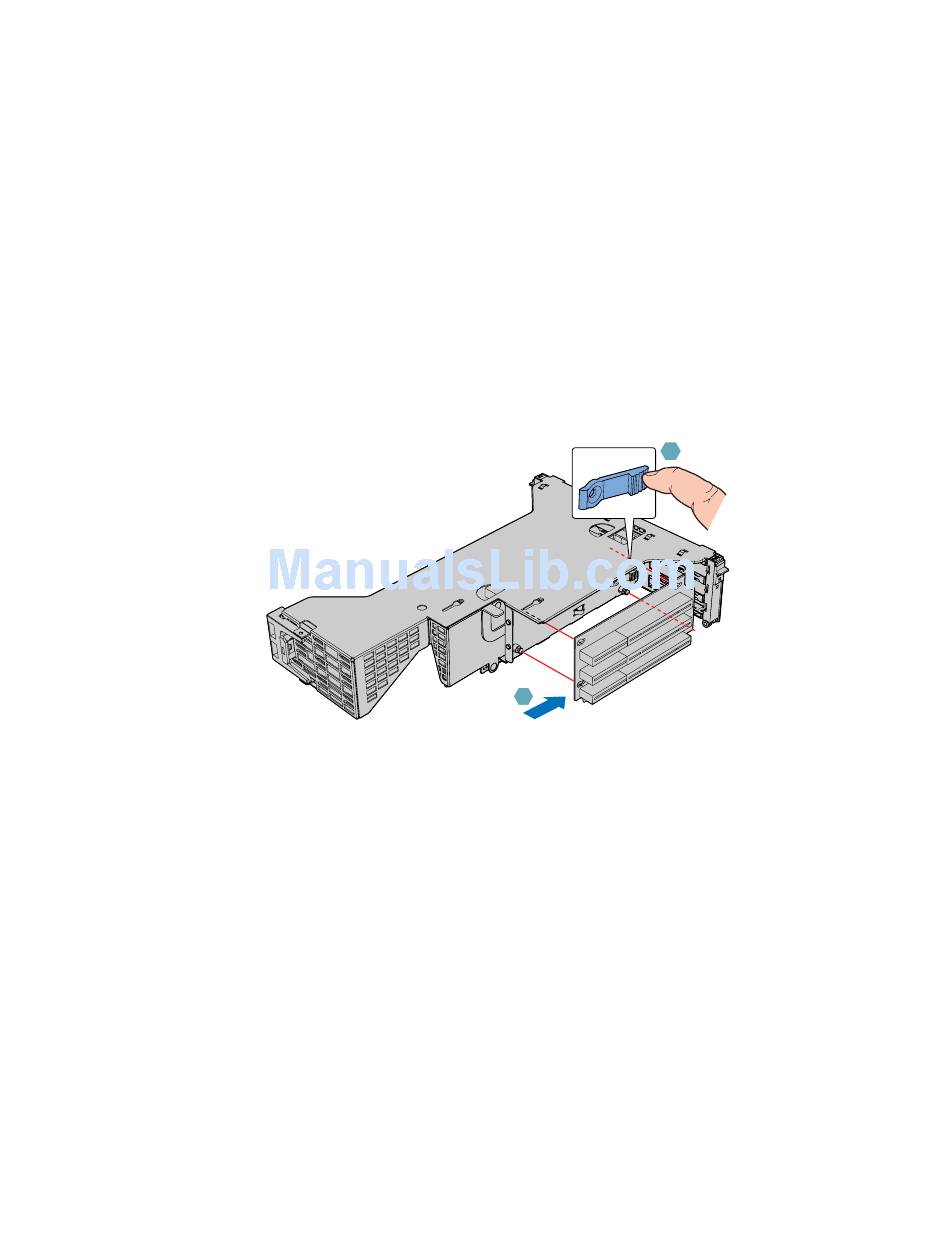

Figure 58. Removing a PCI Riser Connector from the PCI Riser Assembly

9. Install the replacement riser connector, if desired. For instructions, see
Connector."
10. Install the riser assembly into the chassis. For instructions, see
Assembly."
11. Install the processor air duct. For instructions, see
12. Install the chassis cover. For instructions, see
66
"Removing the Chassis Cover."
"Removing the Processor Air
"Removing the PCI Riser
"Removing a PCI Add-in
A
B
TP01113
"Installing the PCI Riser
"Installing the Processor Air
"Installing the Chassis Cover."
"Safety
Duct."
Assembly."
Card."
"Installing a PCI Riser
Duct."
