Installing and Removing the I/O Expansion
Module(s)

Installing the I/O Expansion Module(s)

1. Squeeze the sides of the I/O expansion module cover to disengage it from the server
system back panel and remove it (see letter "A").
2. Attach the standoffs to the server board (see letter "B") and attach the I/O
expansion module(s) to the server board (see letter "C").

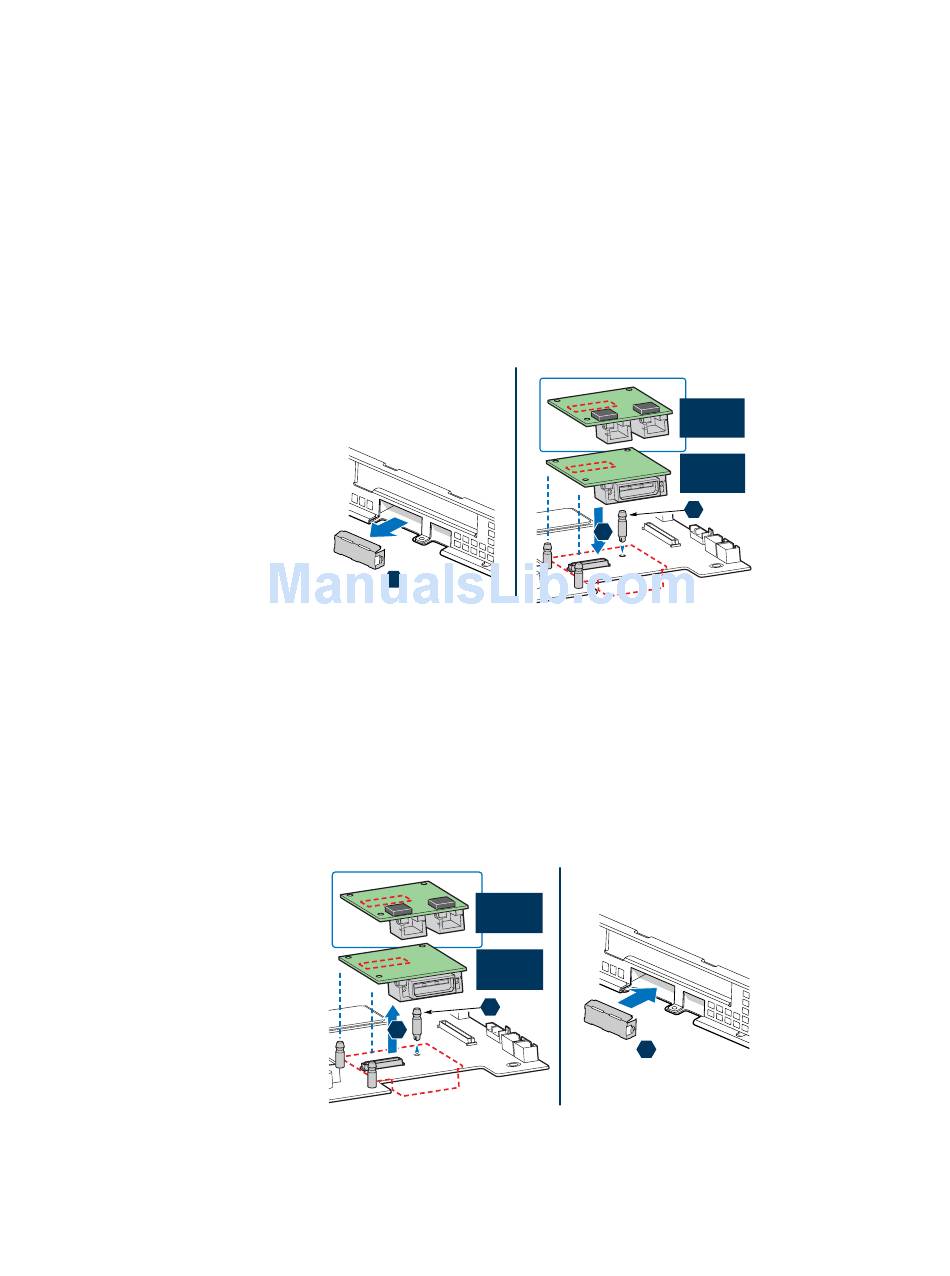

Figure 44. Installing the I/O Expansion Module to the Server Board

Removing the I/O Expansion Module(s)

1. Remove the I/O expansion module(s) from the server board (see letter "A").
2. Remove the standoffs from the server board (see letter "B").
3. Install the I/O expansion module cover into the system back panel (see letter "C").

Figure 45. Removing the I/O Expansion Module(s) from the Server Board

®
