7. Install a replacement backplane. For instructions, see
Board".
8. Install the bridge board (see
Replacing the Fan Board (Fixed Drive System
Only)
The instructions below describe how to replace the fan board.
Removing the Fan Board
1. Disconnect all fan cables from the fan board.
2. Disconnect the power from the fan board (see letter "A").
3. Remove the screw from the fan board (see letter "B").
4. Hold the fan board only by the edges. Slide the fan board to the right to release it
and lift it over the retention pins (see letter "C").
5. Lift the fan board out of the server system (see letter "D").
6. Install a replacement fan board. For instructions, see
46
Figure 51. Removing the Backplane from the Server System
C

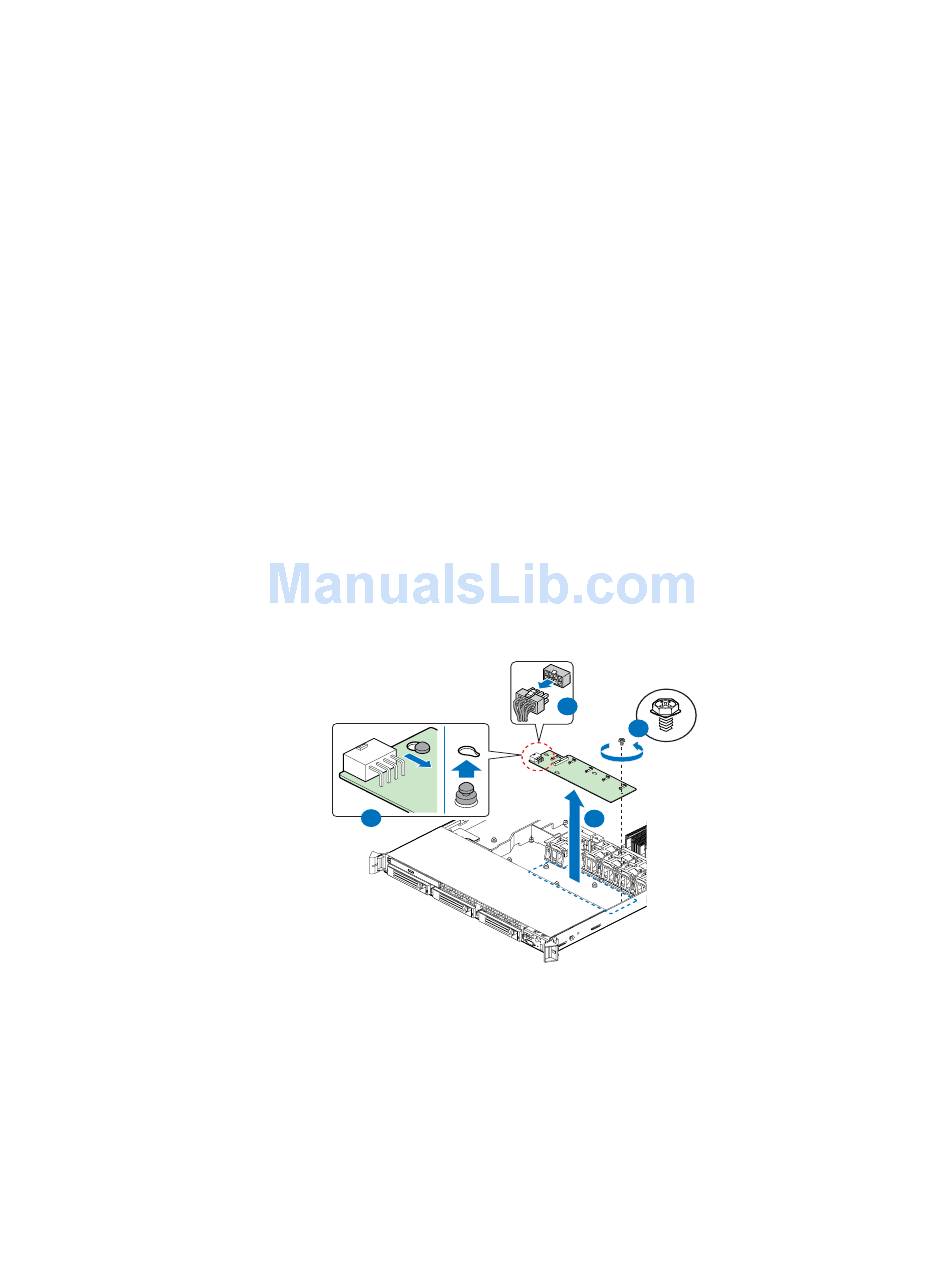

Figure 52. Removing the Fan Board from the Server System
Figure
49).
A
D
®
Intel
Server System SR1560SF Service Guide
"Installing the Backplane
B
AF002351
"Installing the Fan
Board".
