6. Slide the replacement control panel into the server system (see letter "A") until it
clicks into place.
7. Route the USB and front panel cables through the retaining clip on the fan board
(see letter "B").
8. Connect the front panel cable to the connector on the server board (see letter "C").
9. Connect the USB cable to the connector on the server board (see letter "D").

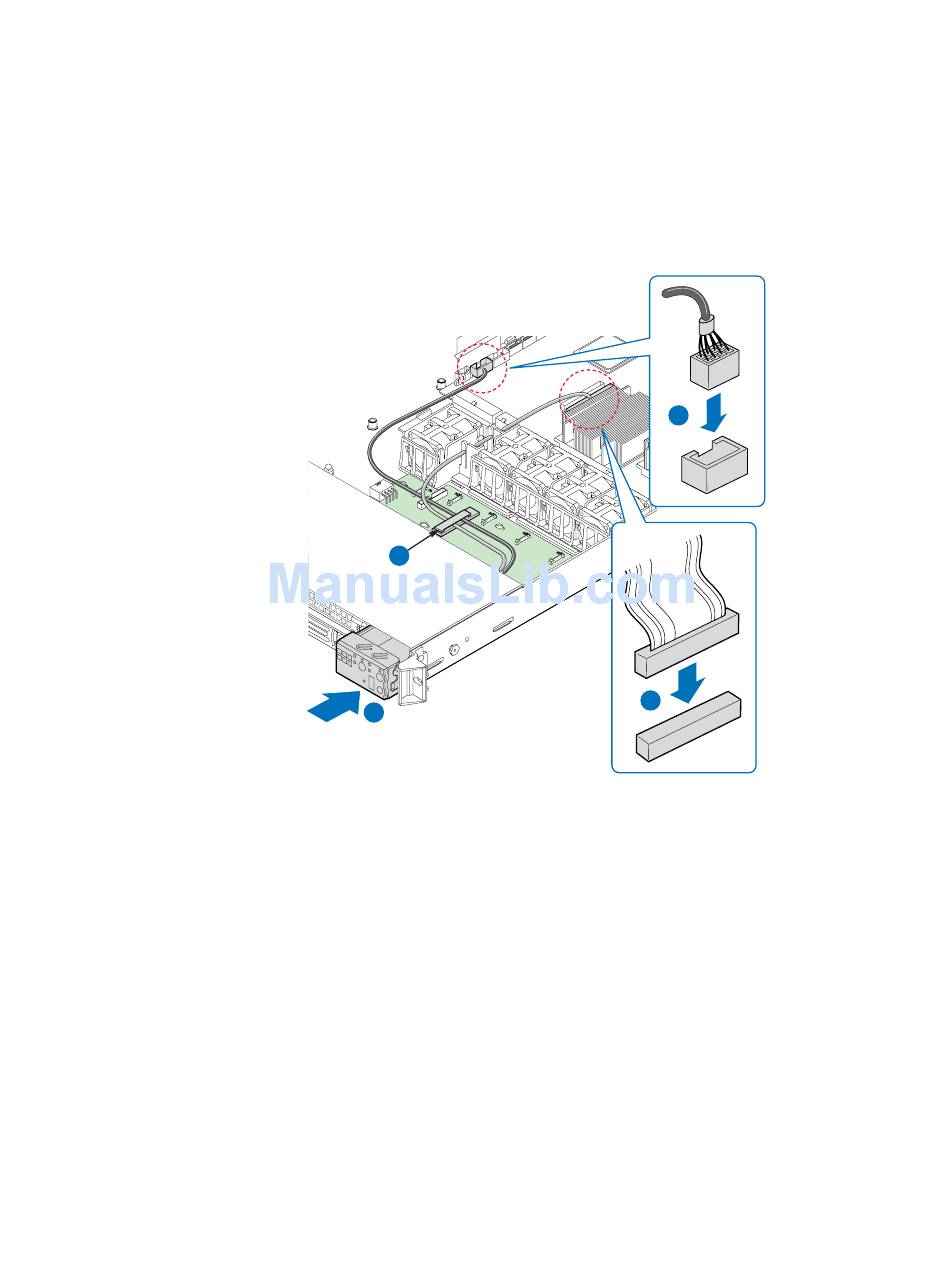

Figure 62. Installing Control Panel Module into the Server System (Fixed

Replacing a System Fan

Caution: The system fans operate at extremely fast speeds; the fans are NOT hot-swappable. Before
removing or replacing a fan, you must first take the server out of service, turn off all
peripheral devices connected to the system, turn off the system by pressing the power
button, and unplug the AC power cord from the system or wall outlet.
Note: The fans that are integrated into the power supply cannot be replaced separately. If one of
the fans in the power supply fails, the power supply must be replaced.
The system fans at the front of the Intel
replaced if one of them fails. Use the steps below to replace a fan.
®
Intel Server System SR1560SF Service Guide
B
A
Drive System)
®
Server System SR1560SF can be individually
D
C
AF002345
55
