Server Board Connector and Component
Locations
®
A. Intel RMM2 NIC Connector
D. PCI Express* Riser Connector
(x16 Gen2)
G. External IO Connectors
J. Processor 1 Socket
M. SSI 24-pin Control Panel Header
P. ATA-100 Optical Drive Connector
(Power+IO)
S. Power Supply Management
Connector
V. SATA1
Y. SATA 4
®
BB. Intel Remote Management
Module 2 2 Connector
EE. Password Clear Jumper
HH. 4-pin IPMB Header
®
Intel Server System SR1560SF Service Guide
A
II
HH
GG
FF
EE
DD
BB CC
AA
Z
Y
X
W
V
U
T
S
R Q
B. IO Module Option Connector
E. System Identification LED - Blue
H. FBDIMM Memory Sockets
K. Processor 2 Socket
N. Fan Board Connector
Q. Main Power Connector
T. Dual Port USB 2.0 Header
W. SATA 2
Z. SATA 5
CC. BMC FRU Update Jumper
FF. Chassis Intrusion Switch Header
II. Serial 'A' Header

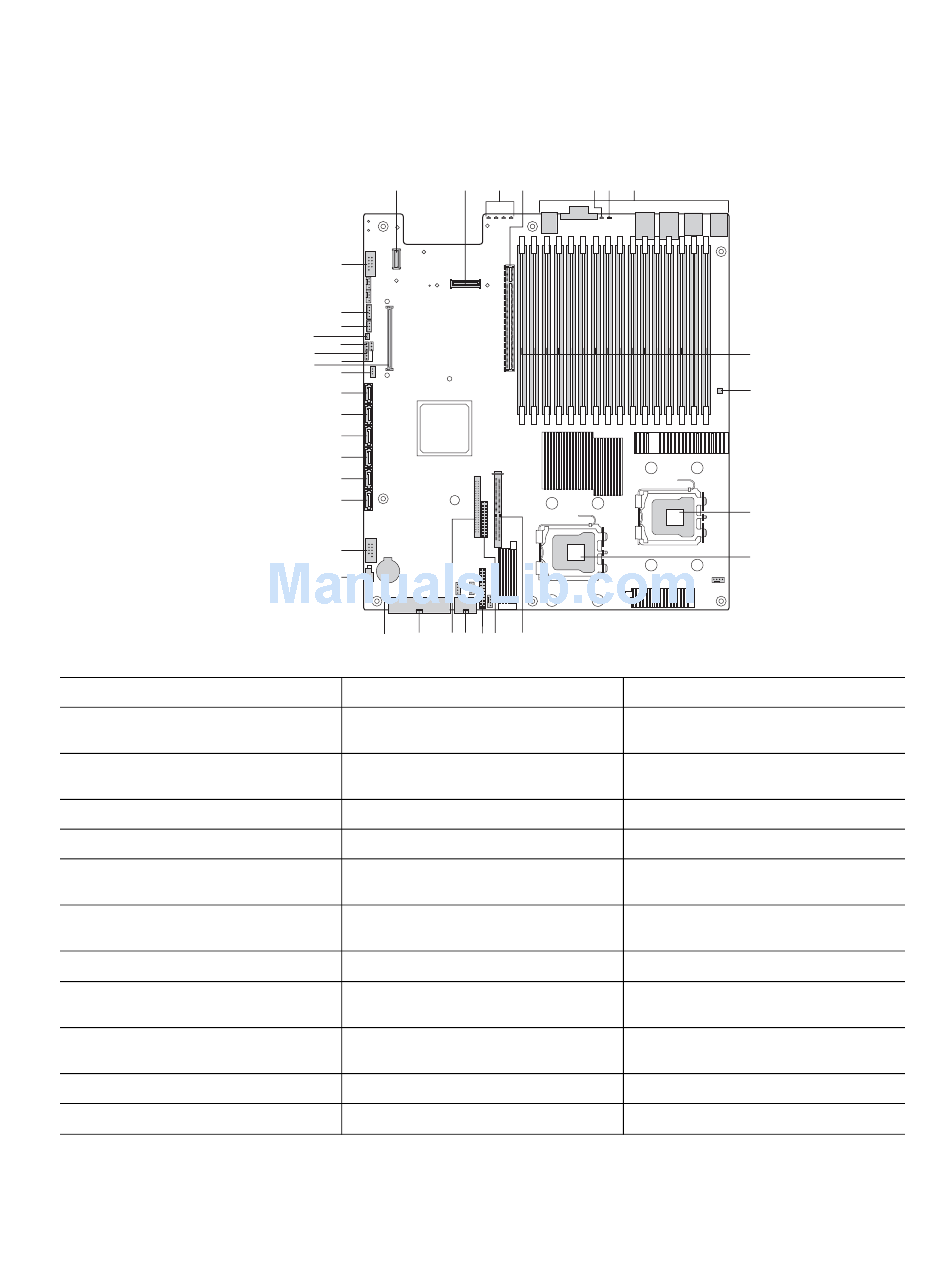

Figure 5. Server Board Connector and Component Locations

B C D E F
P O N M L
G
H
I
J
K
AF002159
C. POST Code Diagnostic LEDs
F. Status LED - Green / Amber
I. Serial 'B' Port Configuration
Jumper
L. Bridge Board Connector
O. CPU Power Connector
R. Battery
U. SATA0
X. SATA 3
AA. SATA SW RAID 5 Activation Key
Connector
DD. CMOS Clear Jumper
GG. 3-pin IPMB Header
