Cable Routing (Fixed Drive System); Figure 3. Cable Routing For Fixed Drive System - Intel SR1560SF - Server System - 0 MB RAM Service Manual

Cable Routing (Fixed Drive System)

When you add or remove components from your server system, make sure your cables are
routed correctly before reinstalling the server system cover. Use caution to make sure no
cables or wires are pinched and that the airflow from the fans is not blocked. Use the
figures below to determine the correct cable routing for a fixed drive system.
®
Intel Server System SR1560SF Service Guide
A
Intel ® Remote Management
Module (optional)
B
®
Intel RMM NIC Module (optional)
C
I/O Module (optional)
D
Power Supply
E
Fan Board
F
Power to Server Board (Aux. - P4)
G
Power to Server Board (Main - P1)
H
Power to Server Board (CPU - P2)
B
A
Server
D
Board
Power
Supply
F
G
H
I
P O N
Q
Optical
Drive
Module

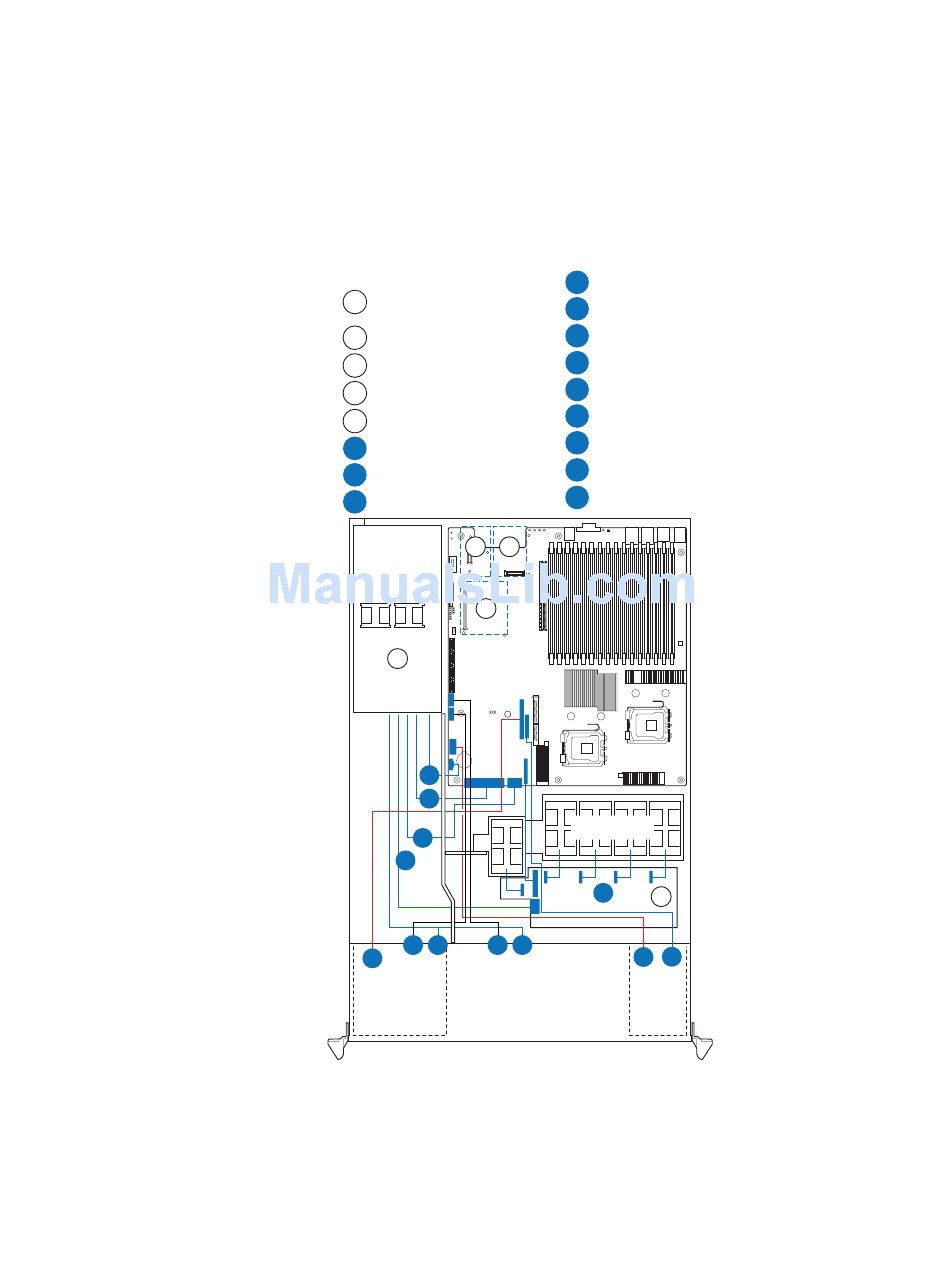

Figure 3. Cable Routing for Fixed Drive System

I
Power to Fan Board (P3)
J
Fan Power Cables
K
Control Panel Data
L
Control Panel USB
M
Power to Fixed HDD
N
SATA Data to HDD 1
O
Power to Fixed HDD
P
SATA Data to HDD 0
Q
Optical Drive Data
C
CPU1
CPU2
Fan Module
J
E
M
L K
Control
Panel
Module
Drive Bays
AF002353
