Installing the Fan Board
1. Lower the fan board into the system (see letter "A") and position the fan board over
the retention pins as shown.
2. Slide the fan board to the left (see letter "B") to lock it in place and install the screw
(see letter "C").
3. Connect power to the fan board power connector (see letter "D").
4. Connect fan cables to the fan board.
Replacing the Server Board
Removing the Server Board
1. Remove CPU air duct and blue air baffle.
2. If installed, remove memory, processor heat sinks, and processors from the server
board.
3. If installed, remove bridge board (hot-swap systems only).
4. If installed, remove the PCI riser assembly.
5. If installed, disconnect all SATA cables from the server board.
®
Intel
Server System SR1560SF Service Guide
B

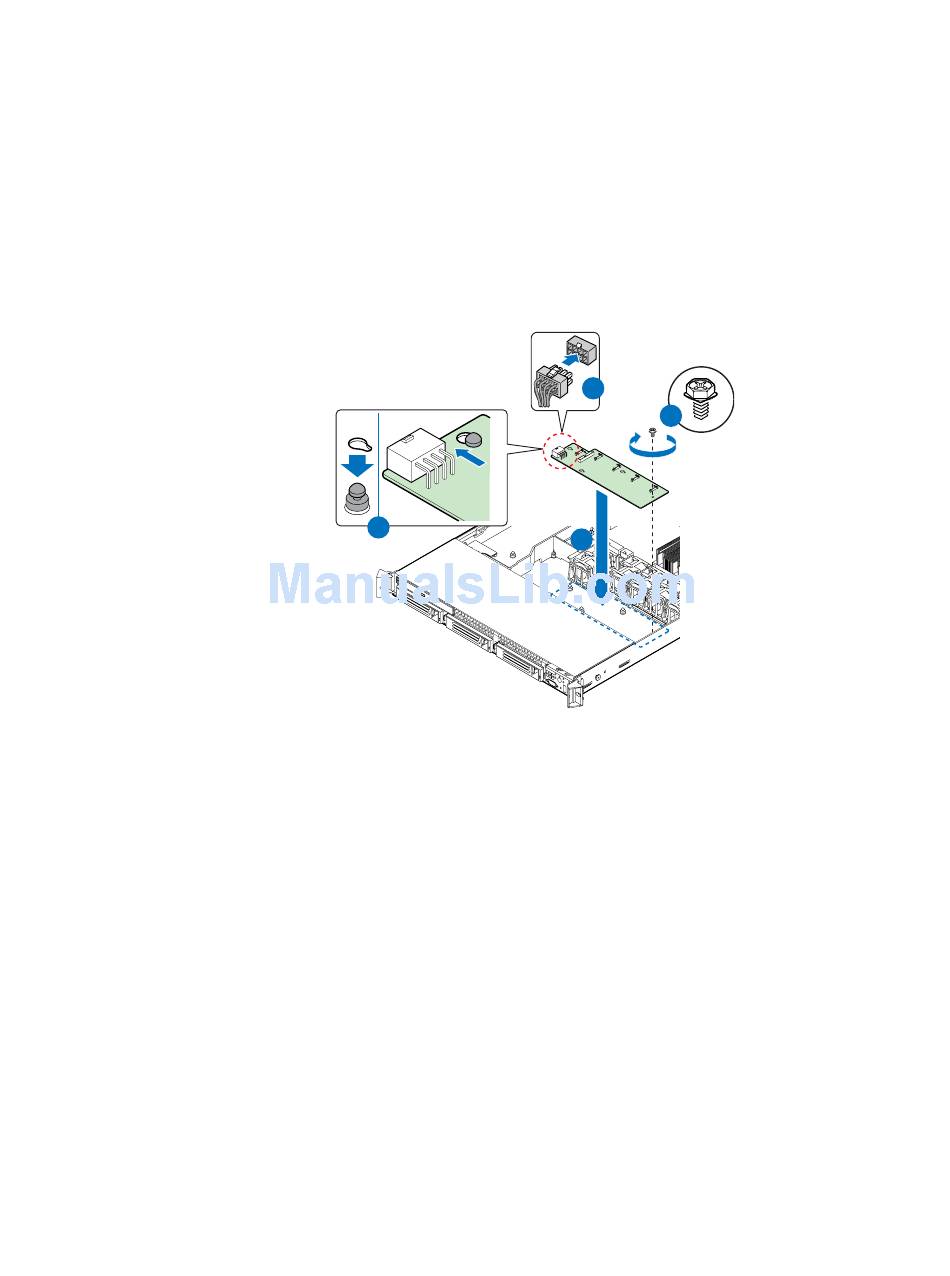

Figure 53. Installing the Fan Board into the Server System
D
C
A
AF002350
47
