1. Unplug the front panel and USB cables from the backplane (see letters "A" and
"B").
2. Press the latch at the back of the control panel (see letter "C").
3. Slide the control panel out through the front of the server system (see letter "D").

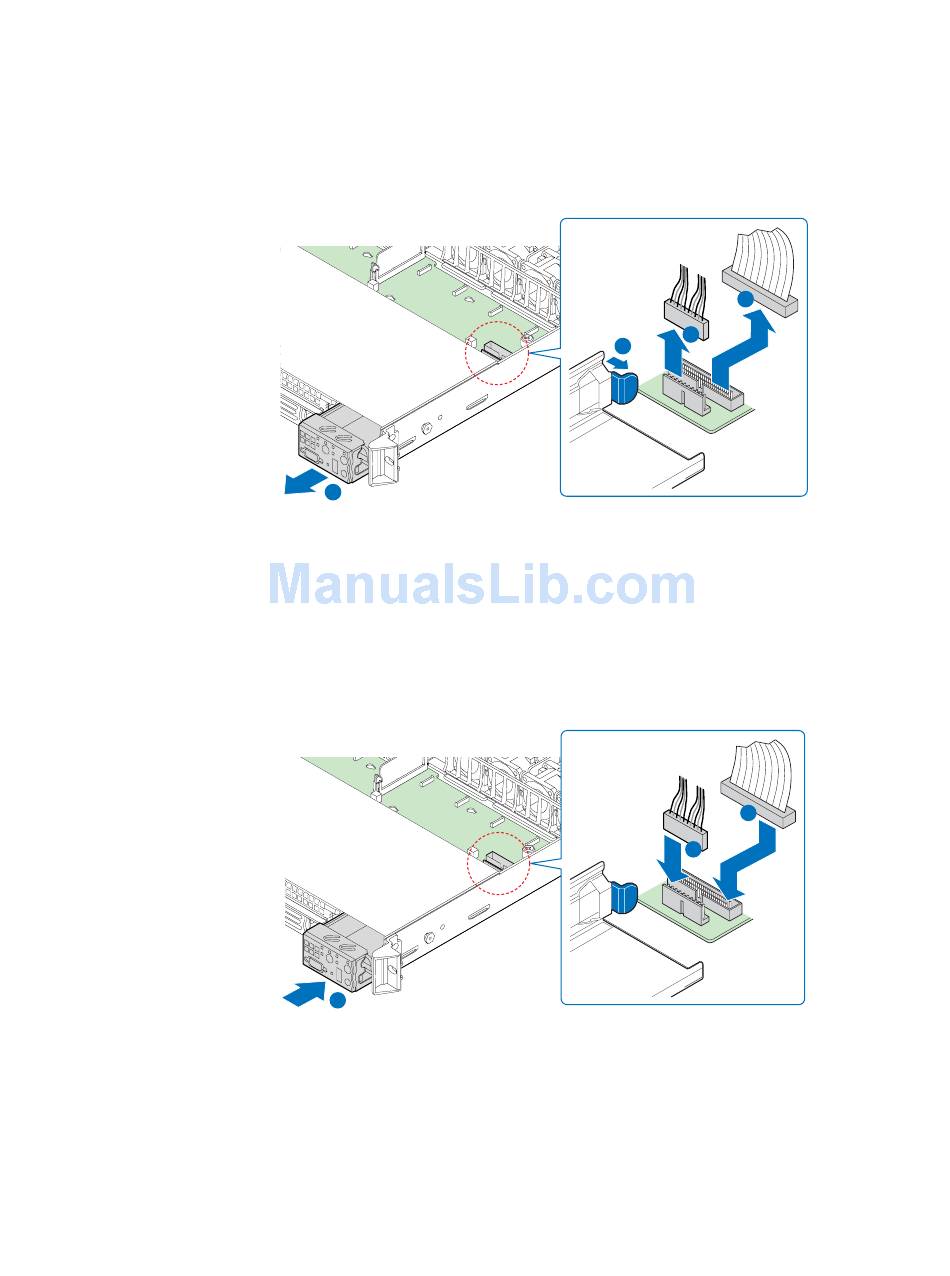

Figure 59. Removing the Control Panel Module (Hot-swap Drive System)

4. Slide the replacement control panel into the server system (see letter "A") until it
clicks into place.
5. Connect the USB and front panel cables to the connectors on the backplane (see
letters "B" and "C").
Figure 60. Installing Control Panel Module into the Server System (Hot-swap
®
Intel Server System SR1560SF Service Guide
D
A
Drive System)
A
B
C
AF002342
C
B
AF002343
53
