6. Remove the system fan assembly.
7. Disconnect all power cables coming from the power supply to the server board.
8. Remove the seven screws from the server board (see letter "A") and lift the server
board from the server system (see letter "B").
9. Install the replacement server board. For instructions, see
Board".
48
A

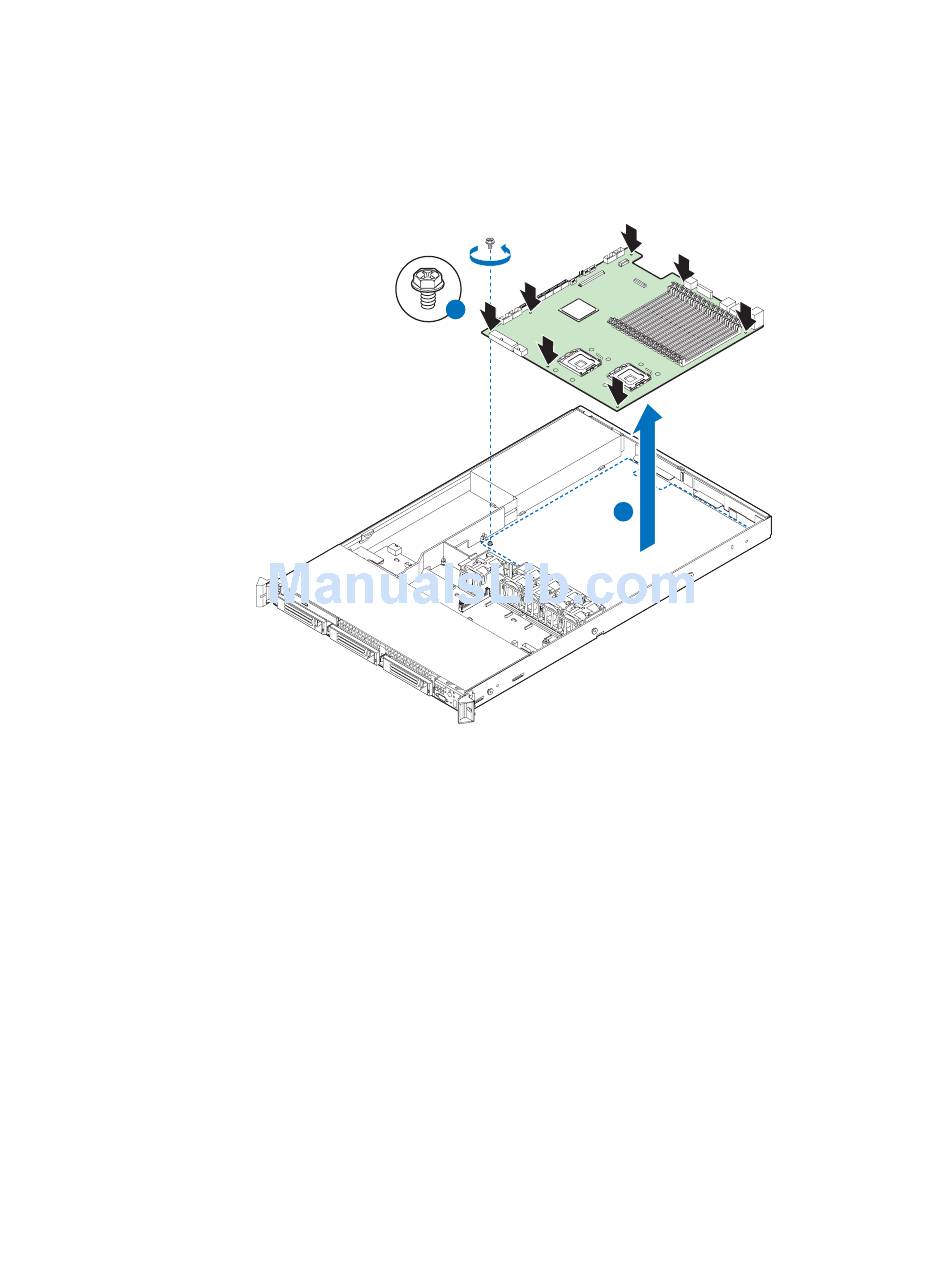

Figure 54. Removing the Server Board
B
"Installing the Server
®
Intel
Server System SR1560SF Service Guide
AF002346
