Installing the Server Board
1. Place the server board into the server system as shown in the figure below (see
letter "A").
2. Attach the server board with seven screws (see letter "B").
3. Re-connect all power cables coming from the power supply to the server board.
4. Install the system fan assembly.
5. Re-connect all SATA cables to the server board.
6. Install the PCI riser assembly.
7. Install the bridge board (hot-swap systems only).
8. Install memory, processor heat sinks, and processors.
9. Install the CPU air duct and blue air baffle.
®
Intel
Server System SR1560SF Service Guide
B

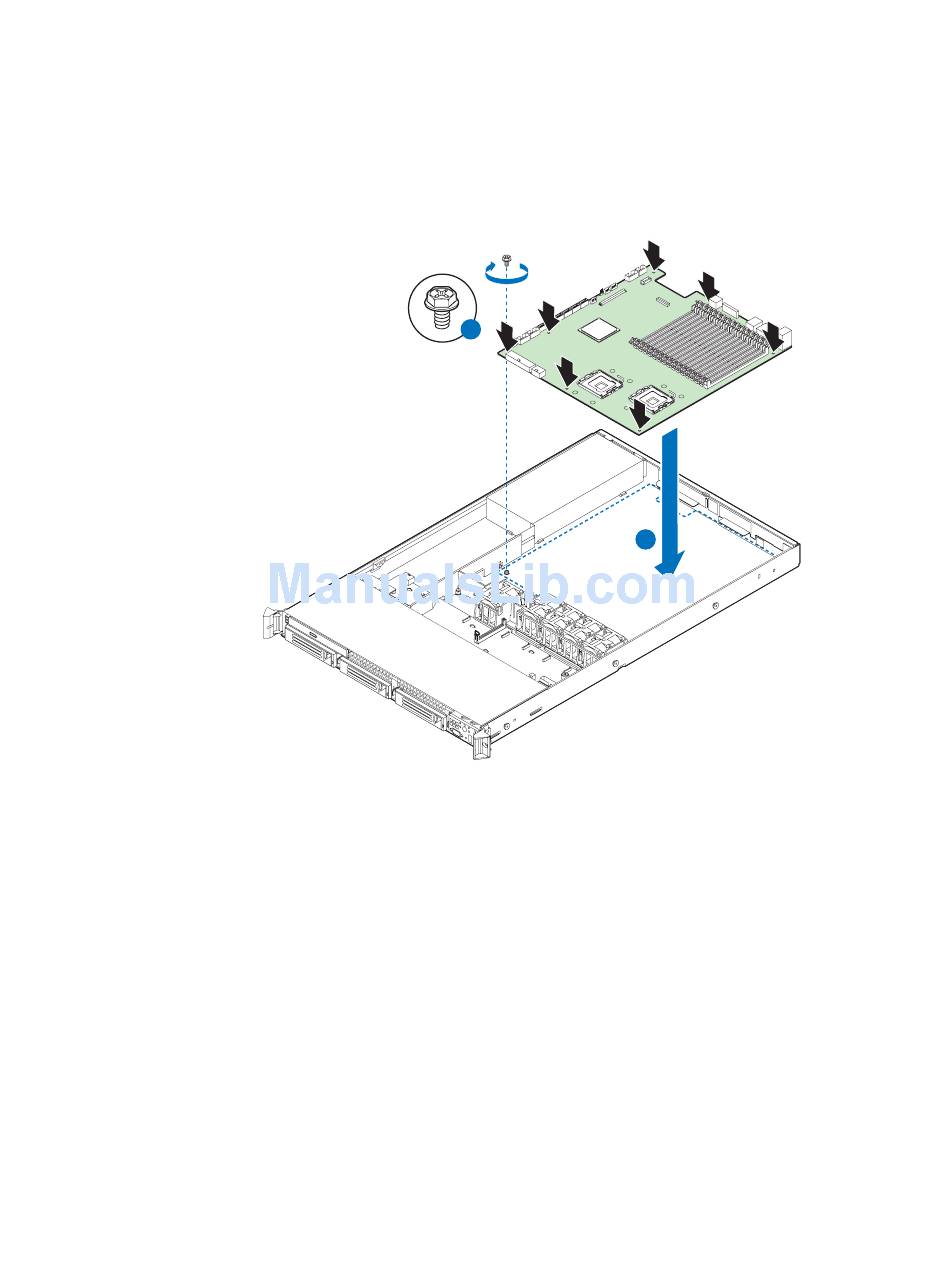

Figure 55. Installing the Server Board
A
AF002347
49
