4. Connect any cables to add-in cards that require them. See your add-in card
documentation for information and add-in card requirements.

Installing and Removing a PCI Add-in Card

The instructions below describe how to install and remove a PCI add-in card.

Installing a PCI Add-in Card

1. Remove the filler panel from the add-in card slot.
2. Insert add-in card until it seats in riser card connector (see letter "A").
3. Screw the add-in card in place (see letter "B").
Note: Make sure that all empty add-in card slots have filler panels installed.

Removing a PCI Add-in Card

1. Remove the screw holding the add-in card in place (see letter "A").
2. Remove the PCI add-in card from the riser card connector (see letter "B").
Note: Make sure that all empty add-in card slots have filler panels installed.
40
B

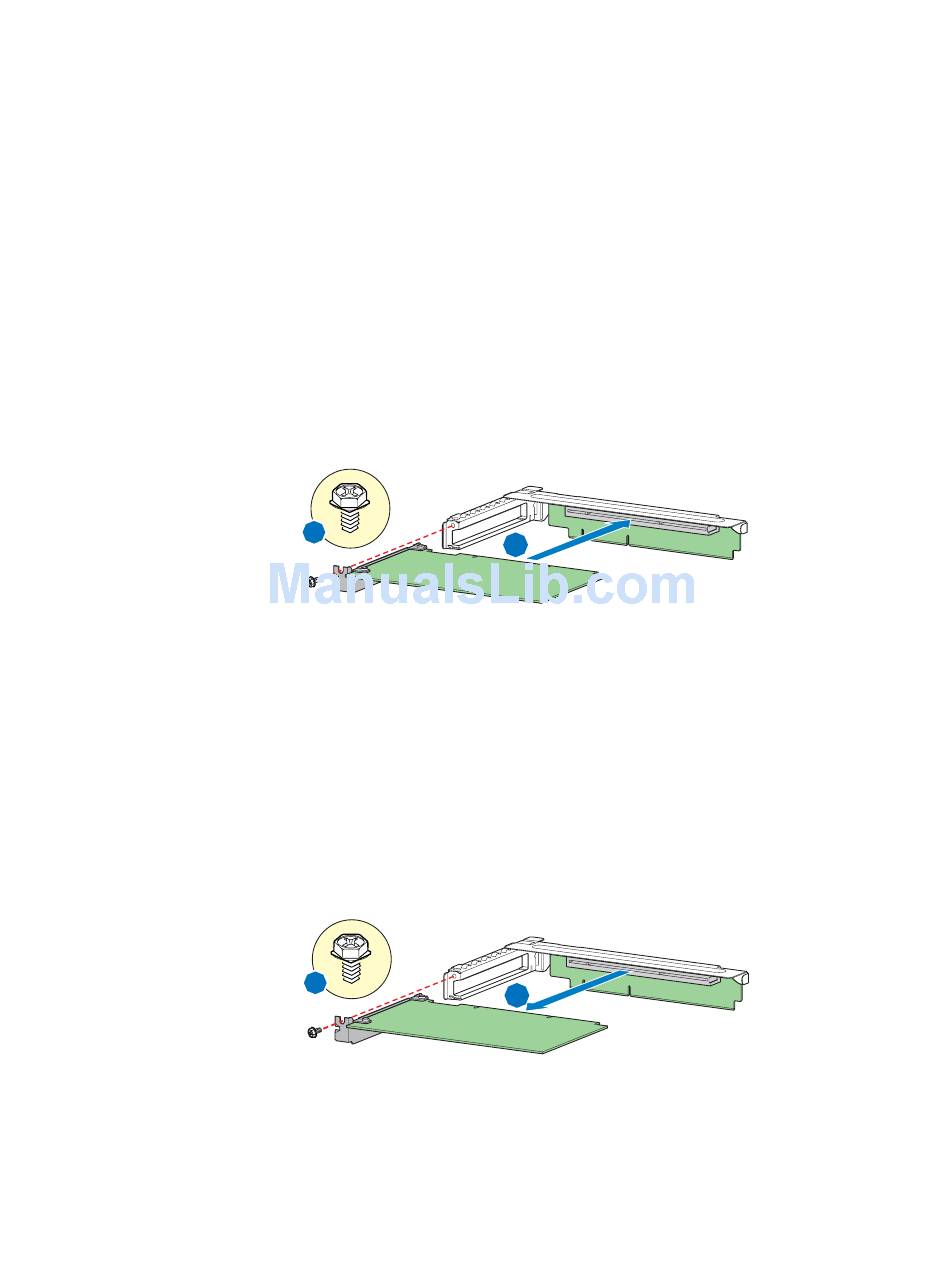

Figure 42. Installing a Full Height Add-In Card

A

Figure 43. Removing a Full Height Add-In Card

A
AF002367
B
AF002368
®
Intel Server System SR1560SF Service Guide
