1. Locate the battery and insert the tip of a small flat bladed screwdriver, or an
equivalent, under the tab in the plastic retainer. Gently push down on the
screwdriver to lift the battery.
2. Remove the battery from its socket.
3. Dispose of the battery according to local ordinance.
4. Remove the new lithium battery from its package, and, being careful to observe the
correct polarity, insert it in the battery socket.
Note: You will need to run BIOS Setup to restore the system configuration settings to the RTC.

Replacing the Power Supply

Caution: The power supply is not hot-swappable. Before removing or replacing the power supply,
you must first take the server out of service, turn off all peripheral devices connected to
the system, turn off the system by pressing the power button, and unplug the AC power
cord from the system or wall outlet.
®
Intel Server System SR1560SF Service Guide

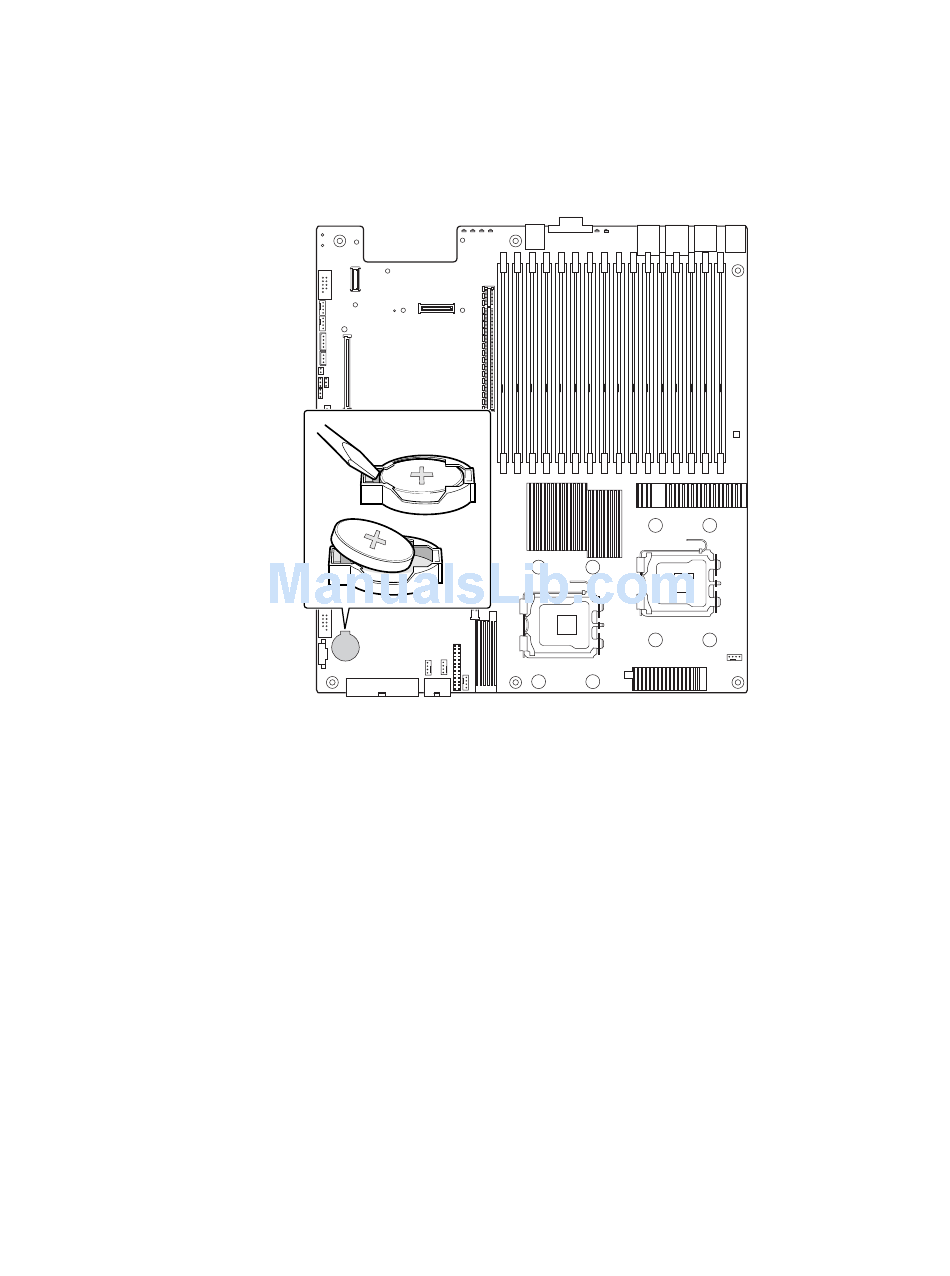

Figure 56. Replacing the Backup Battery

AF002375
