Configuration Jumpers
J3H1
3
3
Jumper Name
BIOS Select
10
BIOS Select
1-2: Force
Lower Bank
2-3: Normal
Operation (Default)
If pins 1-2 are jumpered, the BIOS in the lower bank will be selected
on the next reset. These pins should be jumpered on 2-3 for normal
operation.

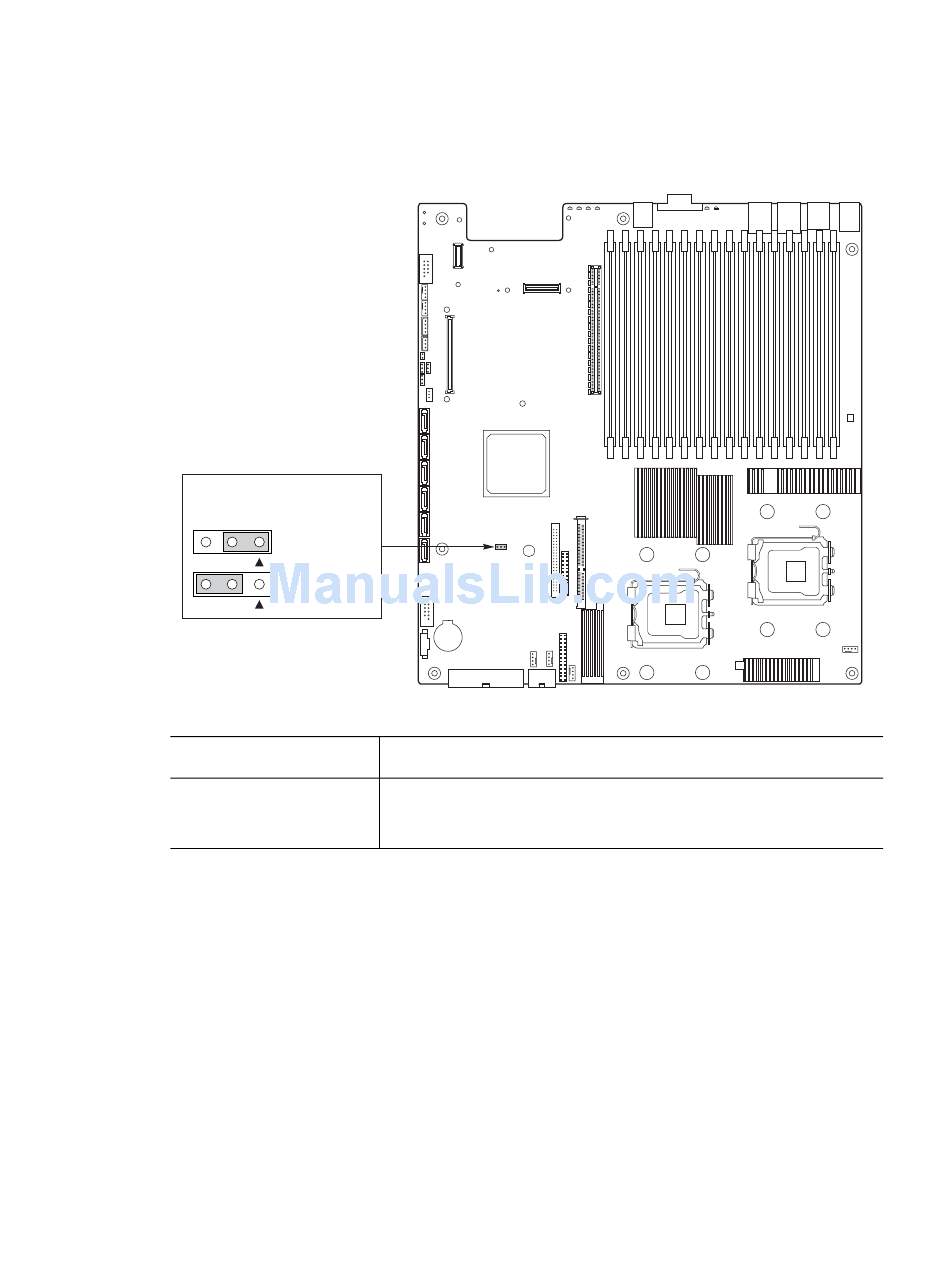

Figure 6. BIOS Select Jumper
Jumper Purpose
®
Intel
Server System SR1560SF Service Guide
AF002171
