3. Line up the alignment marks on the processor and the socket, and insert the
processor into the socket.
Note: Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
4. Remove the protective socket cover (see
Caution: Protective socket cover needs to be removed for proper cooling of the processor; failure to
remove the cover could result in damage to the system.
Note: Retain the protective socket cover for use when removing a processor that will not be
replaced.
5. Lower the CPU load plate and lower the socket lever completely.

Installing the Heat Sink(s)

The heat sink has Thermal Interface Material (TIM) located on the bottom of it. Use
caution when you unpack the heat sink so you do not damage the TIM.
Note: New unused heat sinks have adequate TIM on the bottom. If you are re-using a heat sink
from replacing a processor, make sure there is adequate TIM present on the heat sink to
support processor cooling.
1. Set the heat sink over the processor, lining up the four captive screws with the four
posts surrounding the processor.
2. Loosely screw in the captive screws on the heat sink corners in a diagonal manner.
Do no fully tighten one screw before tightening another.
®
Intel Server System SR1560SF Service Guide
A
A

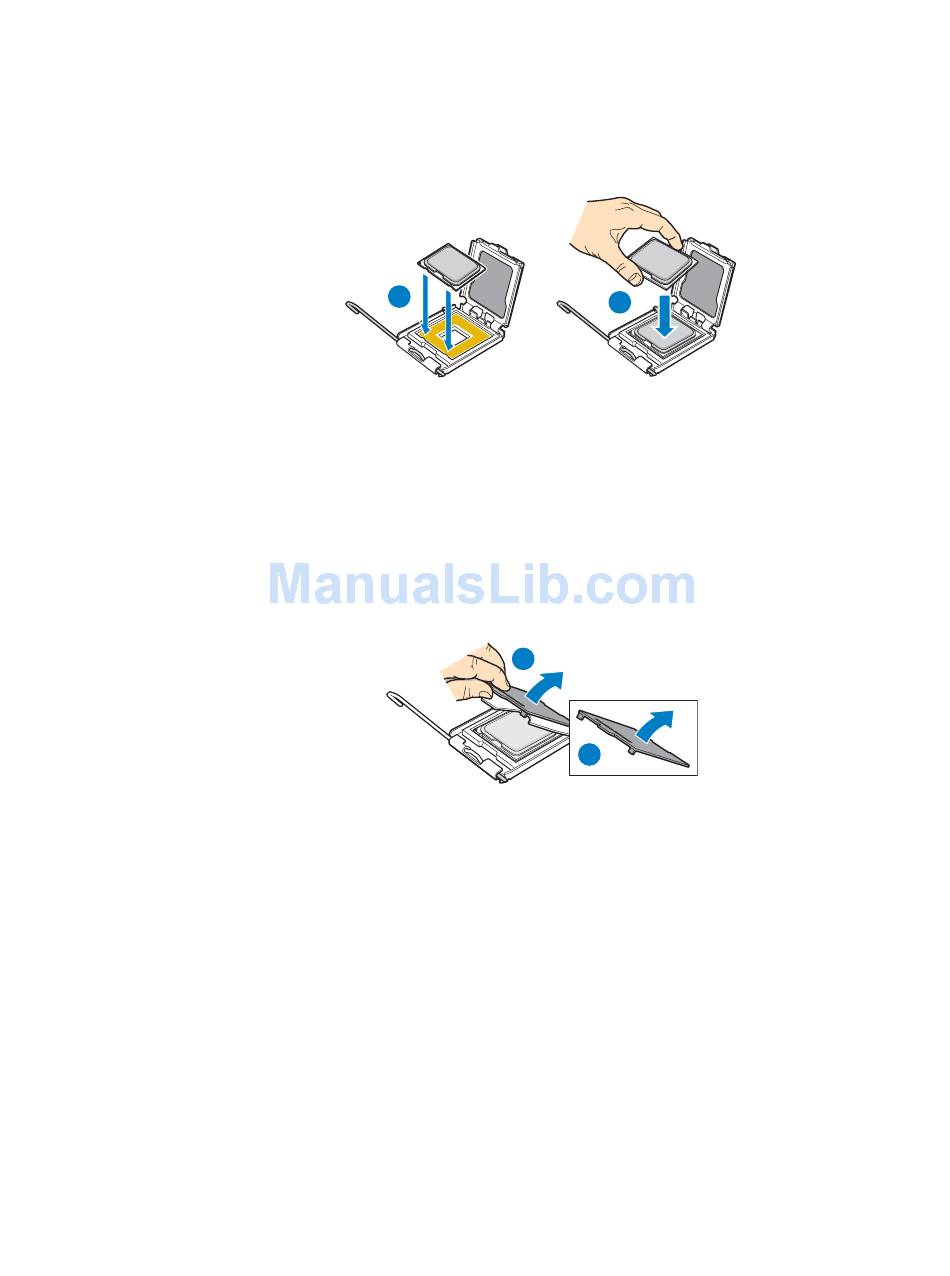

Figure 25. Removing the Socket Cover

B
TP02084
Figure 25).
B
TP02076
29
