3. Install the hard drive into the hard drive carrier using four screws (see the figure
below).
4. Install the hard drive carrier into the server system until it clicks into place.
Note: All hard drive carriers must be installed in the server system and populated with either a
drive or a drive blank to maintain system thermals.
5. Connect power to hard drive(s).
6. Connect SATA cables between the hard drive(s) and the server board.

Removing a Fixed Hard Disk Drive

1. Disconnect all cables to the hard drive(s).
2. Unlatch drive carrier from drive bay by pressing the latch at the end of the black
drive rail and remove the hard drive carrier(s) from the server system.
3. Remove the four screws that attach the hard drive to the carrier. Remove the drive
from the carrier and store the drive in an anti-static bag.
®
Intel Server System SR1560SF Service Guide

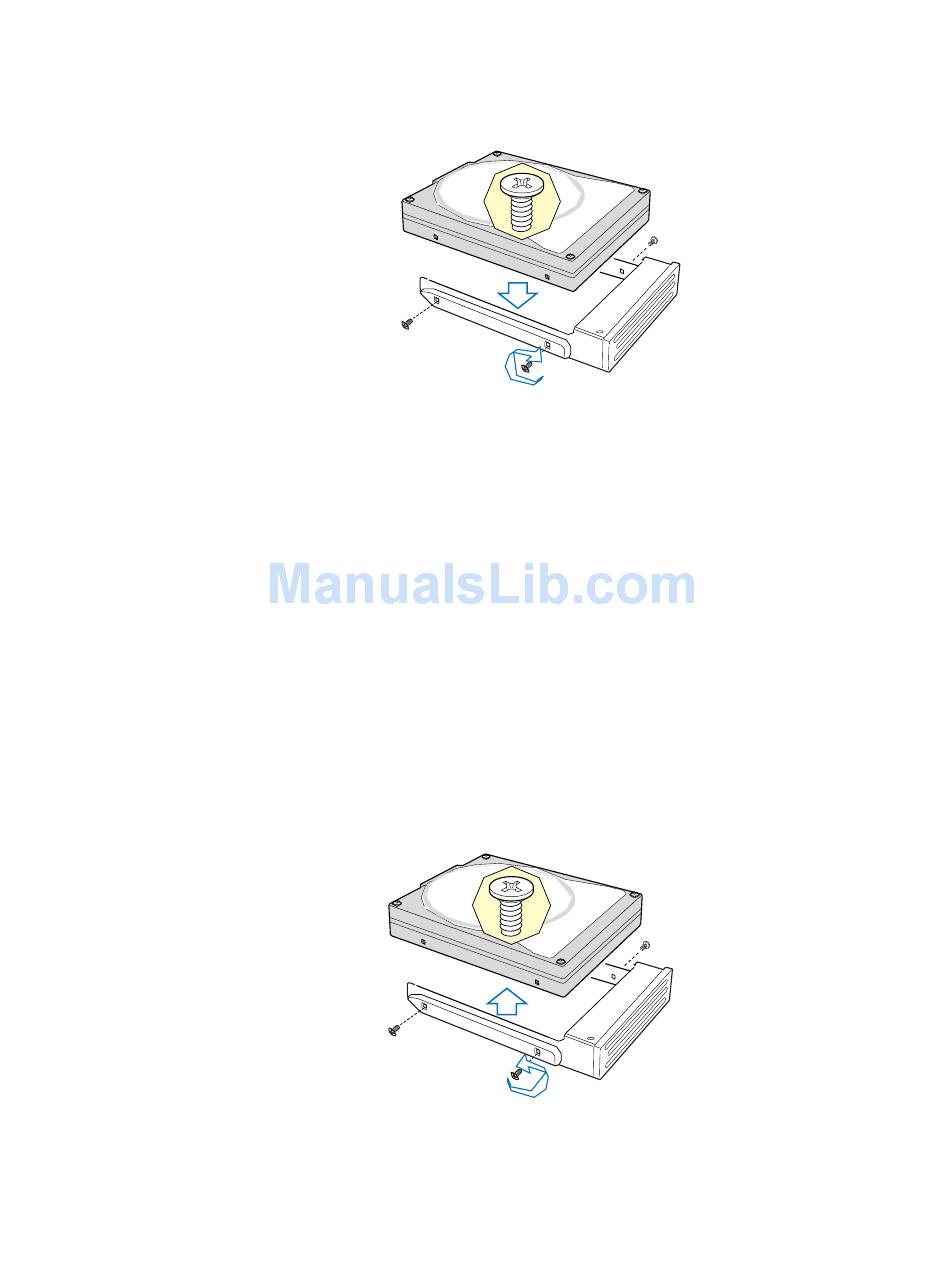

Figure 34. Installing Fixed Hard Drive into the Carrier

Figure 35. Removing Fixed Hard Drive from the Server System

AF002381
AF002382
35
