Place the processor air duct over the processor sockets. The front edge of the air duct
should contact the fan module. Use caution not to pinch or disengage cables that may be
near or under the air duct.

Installing and Removing Memory

The silkscreen on the board for the DIMMs displays DIMM A1, DIMM A2, DIMM A3,
DIMM A4, DIMM B1, DIMM B2, DIMM B3, DIMM B4, DIMM C1, DIMM C2, DIMM
C3, DIMM C4, DIMM D1, DIMM D2, DIMM D3, and DIMM D4, starting from the
center of the board. See "Memory" for a discussion of the memory requirements and
options. See
Figure 21
allows both memory branches from the MCH to operate independently and
simultaneously.
®
Intel Server System SR1560SF Service Guide

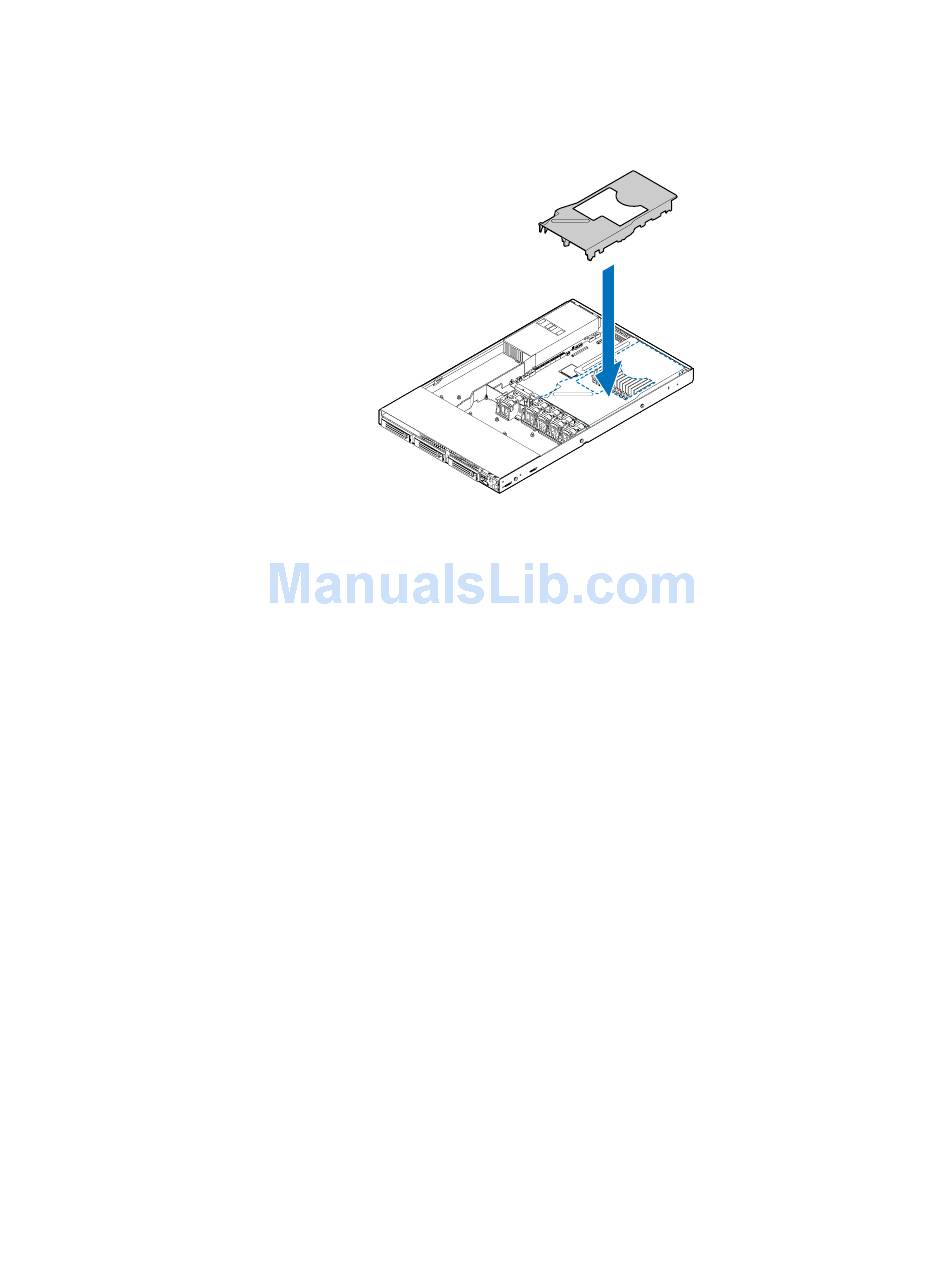

Figure 20. Installing the Processor Air Duct

"Server System References"
shows the supported DIMM configuration that is recommended because it
AF002363
for a link to the list of tested DIMMs.
25
