Chassis Component Identification

This section helps you identify the components of your server system. If you are near the
system, you can also use the Quick Reference Label provided on the inside of the chassis
cover to assist in identifying components.

Internal Components

M
A. Rack handles
B. Air baffle
C. Power supply
D. Server board
E. PCI card bracket (full height)
F. PCI add-in riser assembly
G. Processor air duct
8
B
A
L
K

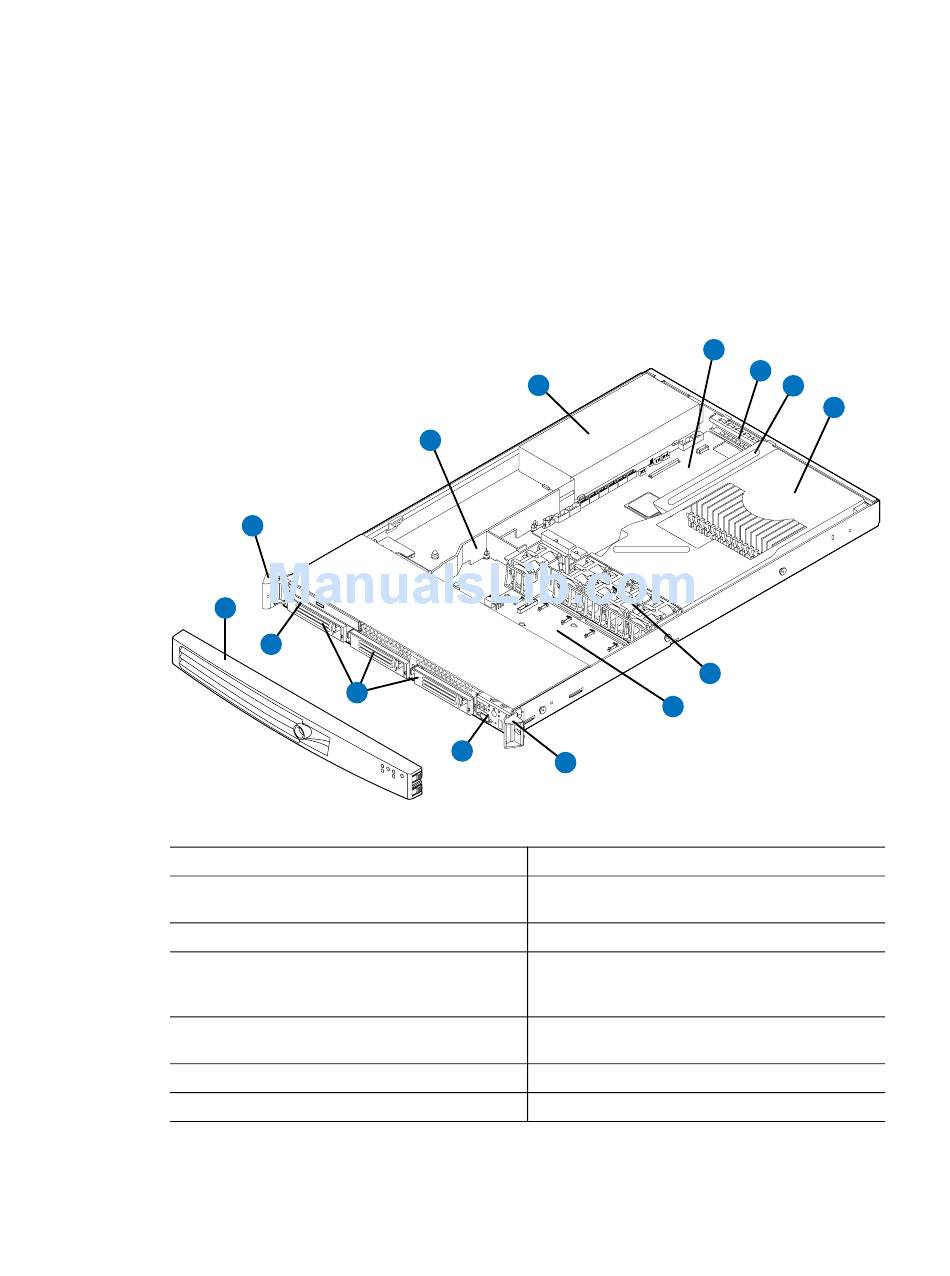

Figure 4. System Components

C
J
A
H. Fan module
I. Fan board (fixed drive system) or
backplane (hot-swap drive system)
J. Control panel
K. Hard drive bays; 2 - fixed drive system, 3 -
hot-swap drive system (drives not
included)
L. Slimline Optical Drive Bay (drive not
included)
M. Front bezel (optional)
®
Intel Server System SR1560SF Service Guide
D
E
F
G
H
I
