Installing DIMMs

1. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter "A").
2. Holding the DIMM by the edges, remove it from its anti-static package and
position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket. The arrow in the inset in
pointing to the key in the socket (see letter "B").
3. Insert the bottom edge of the DIMM into the socket (see letter "C").
4. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place (see letter "D").
5. Make sure the clips are firmly in place (see letter "E").

Removing DIMMs

Gently spread the retaining clips at each end of the socket. Holding the DIMM by the
edges, lift it from the socket, and store it in an anti-static package.
Installing or Replacing the Processor
Caution: Processor must be appropriate: You may damage the server board if you install a
processor that is inappropriate for your server. See
to the list of compatible processor(s).
Caution: ESD and handling processors: Reduce the risk of electrostatic discharge (ESD) damage to
the processor by doing the following: (1) Touch the metal chassis before touching the
processor or server board. Keep part of your body in contact with the metal chassis to
dissipate the static charge while handling the processor. (2) Avoid moving around
unnecessarily.
®
Intel Server System SR1560SF Service Guide
C
E
D
A

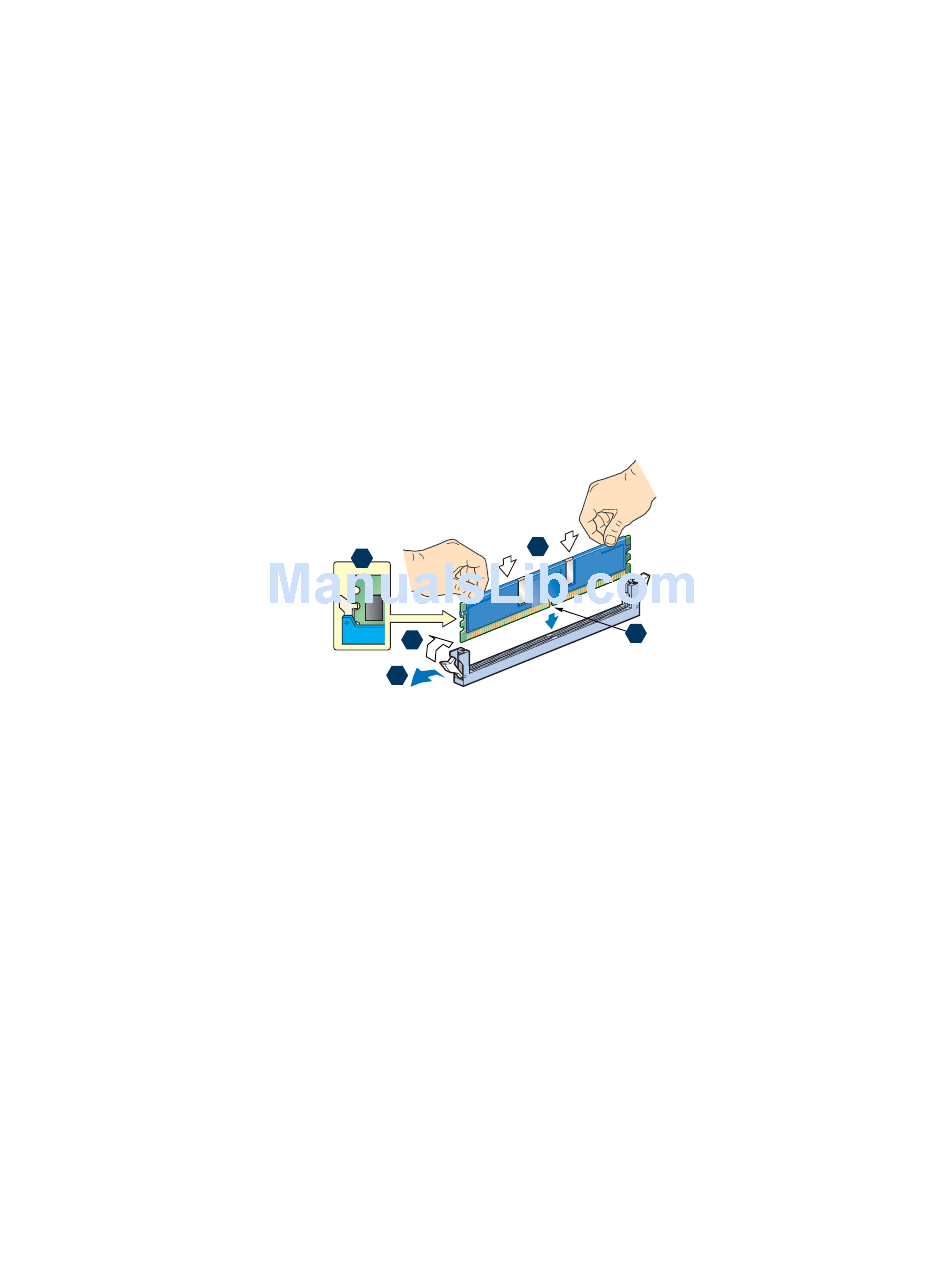

Figure 22. Installing the Memory

Figure 22
B
AF002369
"Server System References"
is
for a link
27
