Installing and Removing the Rack Handles
Installing the Rack Handles
Align the rack handle with the two holes on the side of the server system and attach the
rack handle with the two screws.
Removing the Rack Handles
Remove the two screws holding the rack handle in place, and remove the rack handle from
the server system.
®
Intel
Server System SR1560SF Service Guide

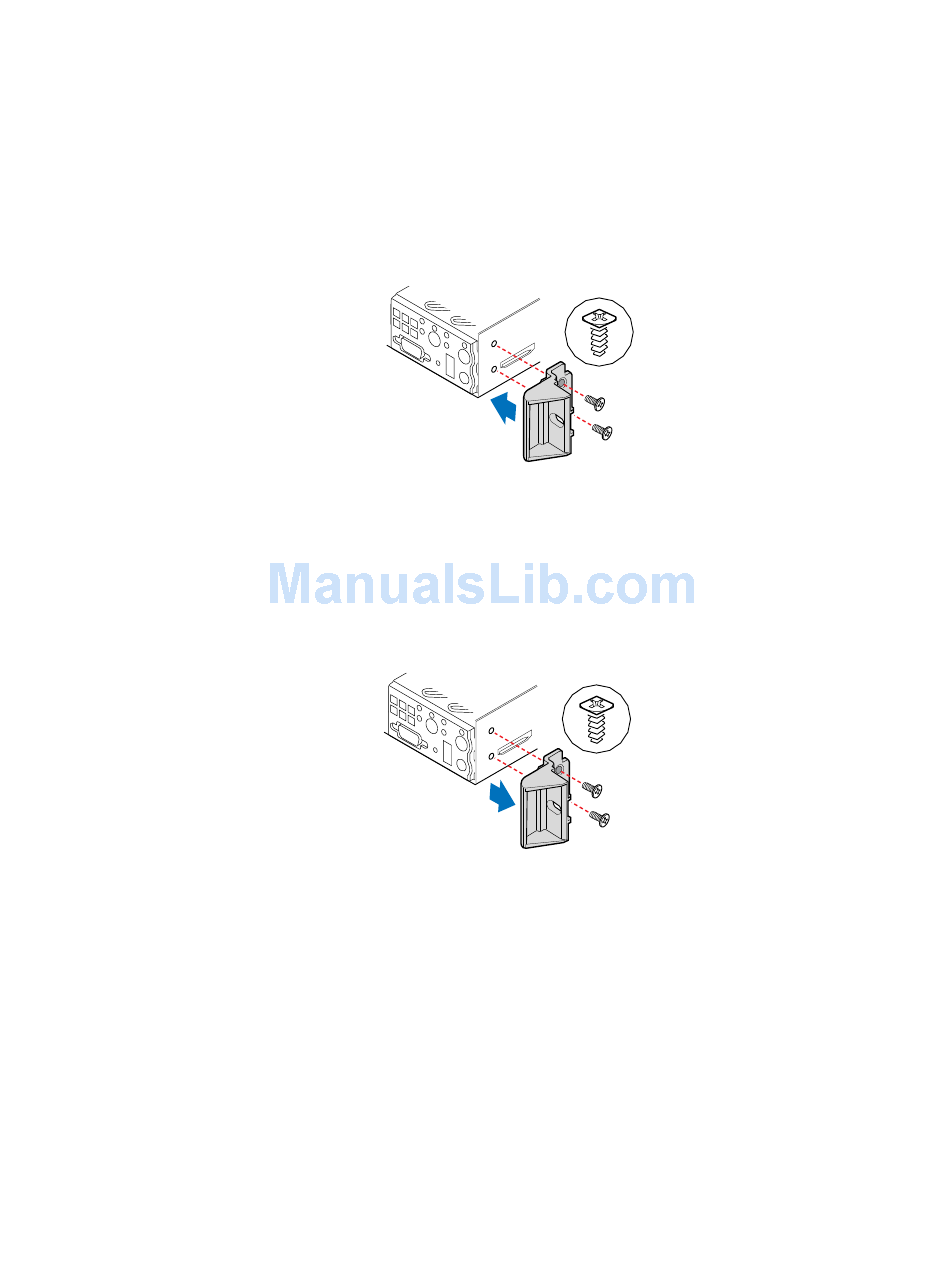

Figure 65. Installing the Rack Handle
Figure 66. Removing the Rack Handle
AF000377
AF000378
57
