Chapter 8 Performance Monitoring

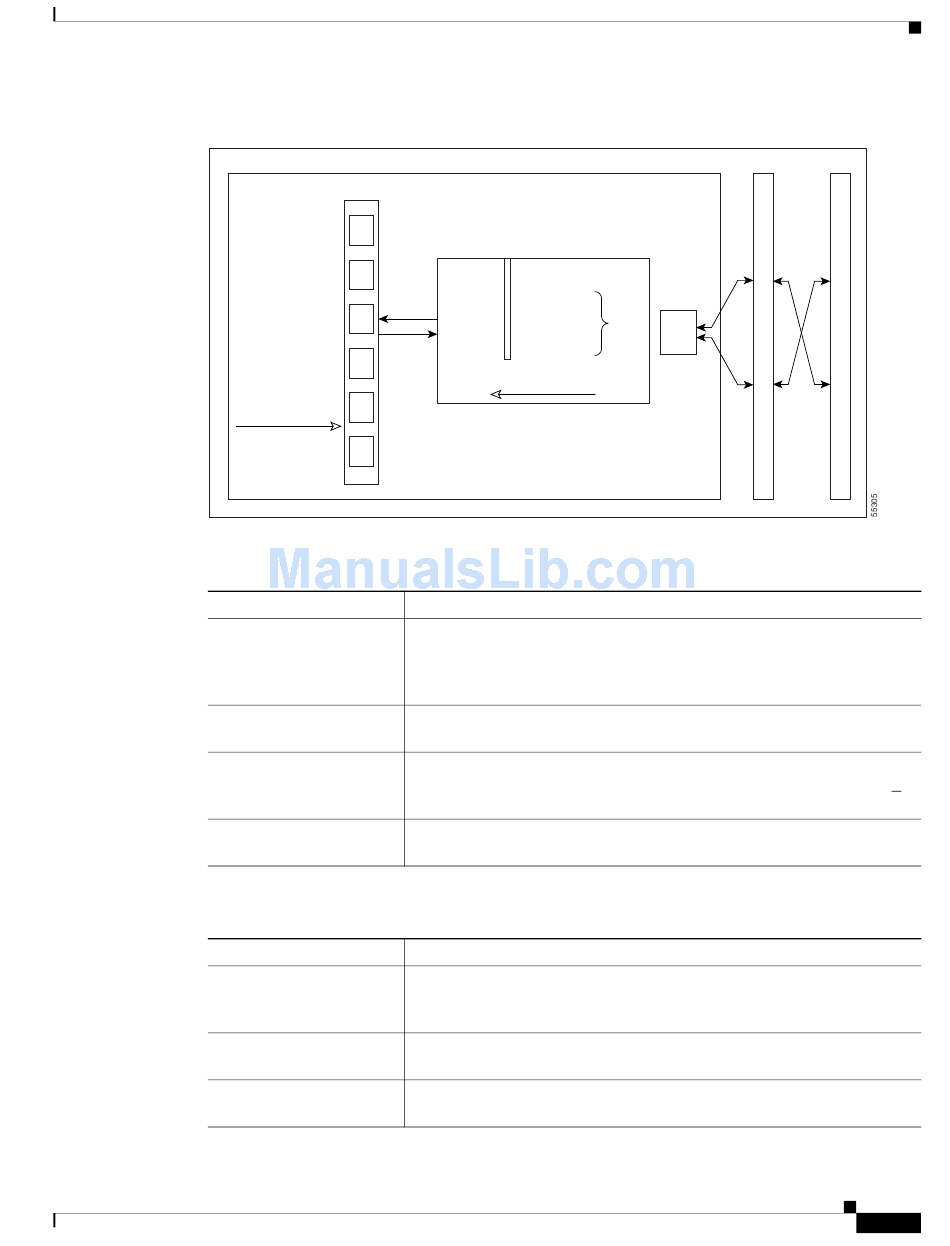

Figure 8-16 PM read points on the DS3 and DS3N cards

DS3 CV-L
DS3 ES-L
DS3 SES-L
DS3 LOSS-L
DS3 ES-P
DS3 SES-P
DS3 SAS-P
DS3 AISS-P
DS3 UAS-P
PMs read on LIU

Table 8-13 Near-End DS3 Line PMs for the DS3 and DS3N Cards

Parameter
DS3 CV-L
DS3 ES-L
DS3 SES-L
DS3 LOSS-L

Table 8-14 Near-End DS3 Path PMs for the DS3 and DS3N Cards

Parameter
DS3 ES-P
DS3 SES-P
DS3 SAS-P
November 2001
ONS 15454
DS3 & DS3N Cards
LIU
Mux/Demux ASIC
DS3 Side SONET Side
STS CV-P
STS ES-P
STS FC-P
STS SES-P
STS UAS-P
PMs read on Mux/Demux ASIC
Definition
Code Violation Line (CV-L) indicates the number of coding violations
occurring on the line. This parameter is a count of bipolar violations
(BPVs) and excessive zeros (EXZs) occurring over the accumulation
period.
Errored Seconds Line (ES-L) is a count of the seconds containing one or
more anomalies (BPV + EXZ) and/or defects (loss of signal) on the line.
Severely Errored Seconds Line (SES-L) is a count of the seconds
containing more than a particular quantity of anomalies (BPV + EXZ >
44) and/or defects on the line.
Line Loss of Signal (LOSS-L) is a count of one-second intervals
containing one or more LOS defects.
Definition
Errored Seconds-Path (ES-P) is a count of one-second intervals
containing one or more CRC-6 errors, or one or more CS events, or one
or more SEF or AIS defects.
Severely Errored Seconds-Path (SES-P) is a count of seconds where 320
or more CRC-6 errors occur or one or more SEF or AIS defects occur.
Severely Errored Frame/Alarm Indication Signal-Path (SAS-P) is a count
of seconds containing one or more SEFs or one or more AIS defects.
Performance Monitoring for Electrical Cards
XC10G Card
BTC
ASIC
Path
Level
Cisco ONS 15454 Installation and Operations Guide
OC-N
8-23
