Plc Connection; Wwan Antenna Connections (Rf Connectors) - Teldat Regesta Smart PLC Installation Manual

4 Connecting the router
4.2.2.1 Laser information
Warning
Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER
PRODUCT.
The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/
EN 60825-1:2007 standard.

4.2.3 PLC connection

The Regesta Smart PLC incorporates a Power Line Communication (PLC) interface. This interface allows the device
to communicate with several compatible PLC devices through the power line. PLC signal injection is made inside the
device through the power supply connector. There is a LED labeled "P" to indicate the connection state.
PLC and Power connector

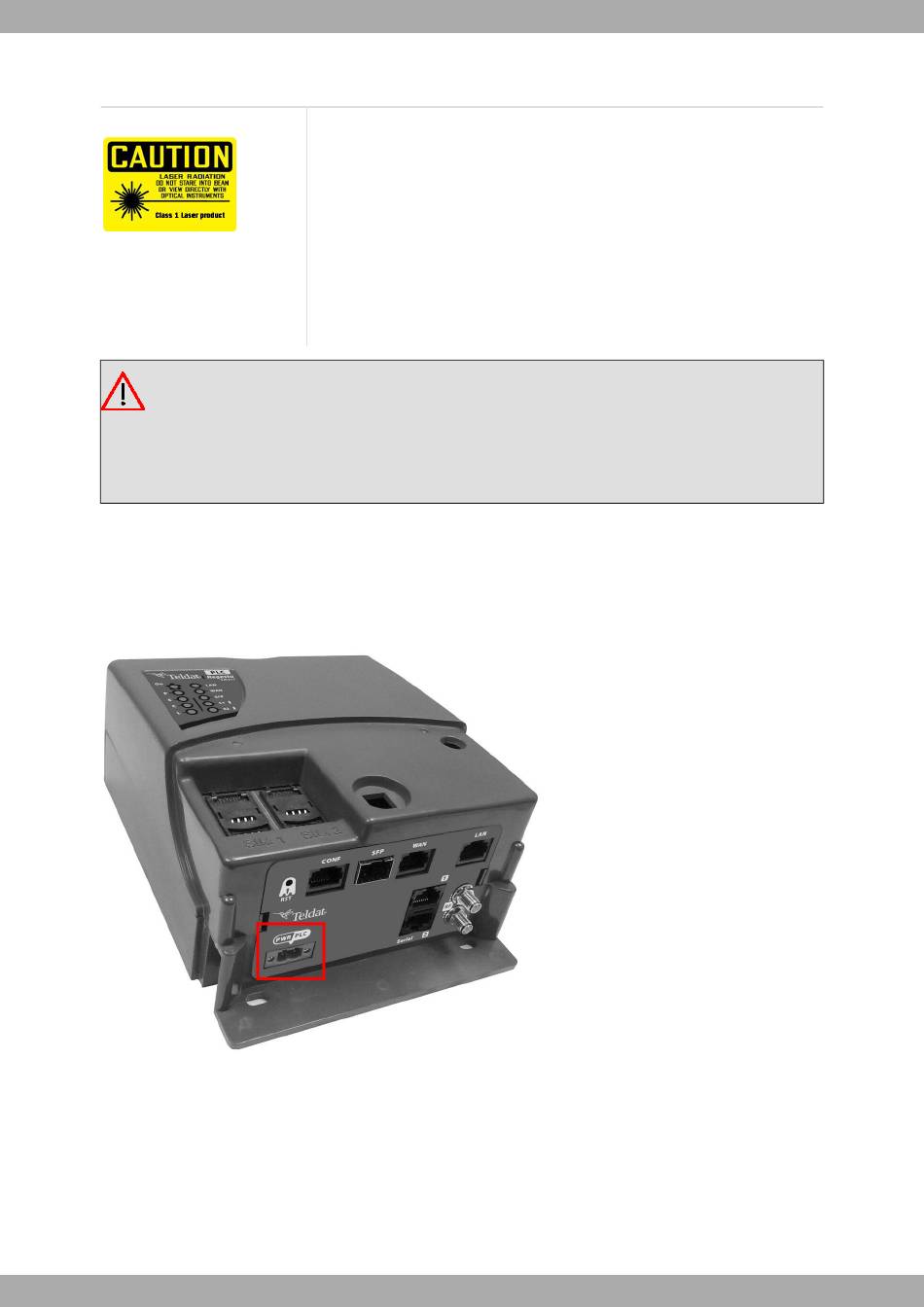

Fig. 18:

4.2.4 WWAN Antenna connections (RF connectors)

The Regesta Smart PLC router, depending on the model, has two connectors for RF antennas. To assemble and
disassemble the antennas, simply screw them into the connectors labeled RF1/RF2 (located on the device's con-
nector panel).
The RF1 connector is connected to the module's MAIN connector and the RF2 connector to the AUX connector.
20
Choose SFP transceivers that meet the following regulations
• Class 1
• IEC/EN60825-1:2007 2nd Edition or a later one, European standard
• FCC 21 CFR Chapter 1, Subchapter J (in accordance with FDA and CDRH re-
quirements)
• Application of CE marking in accordance with the 2014/30/EU EMC Directive
and the 2014/35/EU Low Voltage Directive
• UL and/or CSA registered component for North America
• 47 CFR Part 15, Class A
