SKILLRUN
Technical Service Guide - Rev. 6.0
ATTENTION: during reassembly, be careful not to pinch the cables. Keep the cables to one side,
fastening them with adhesive tape.
5. Remove the left knob, following the procedure described above. (from point 1 to point 4)
Uncontrolled copy if printed
Q

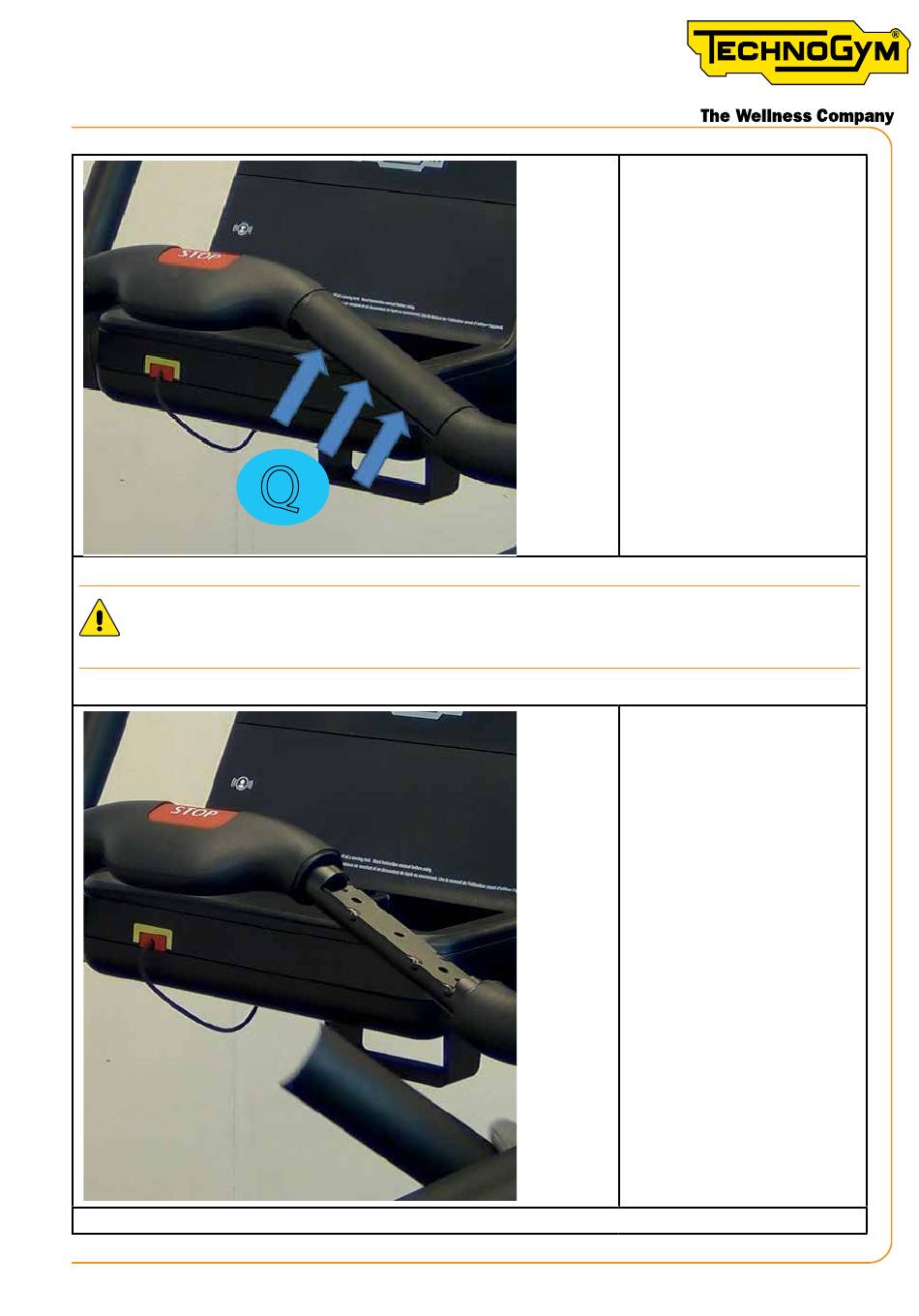

3. Remove the 3 screws
(Q) from below the knob.
(TOOL:
medium
Phillips
screwdriver).
4. Remove the upper part of
the knob.
Pag. 193
