6.2.3 CASE 3: INSTALLATION OF A NEW TREAD BELT - BELT REPLACEMENT

- CASE 3: Replacement of the tread belt with a new tread belt or belt replacement. Follow the
procedure indicated below:
1. Take as reference the position of the front pin, right and left side. See the table below.
2. After performing the operations: return the front roller to its original condition.
3. The belt must lightly touch the front bearing. More specifically, there must be a maximum gap
of 1 mm to 2 mm between the belt and the front bearing. The belt may lightly touch the bearing,
but must not be overtensioned: as soon as the belt is in contact with the bearing, do not rotate the
Uncontrolled copy if printed

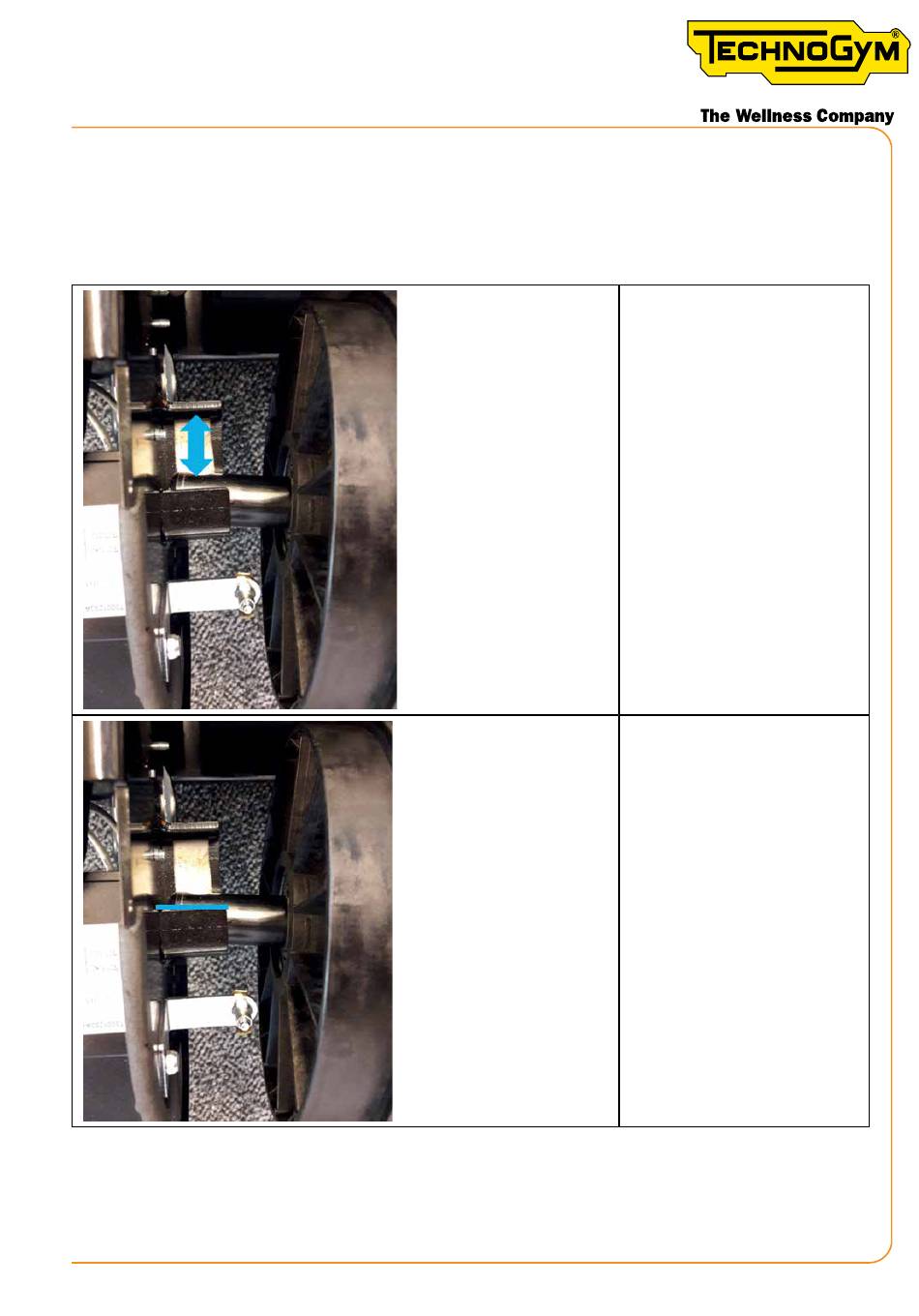

Take as reference the dis-
tance between the front roll-
er and the frame, both on
the right and on the left side
of the equipment. (TOOL:
gauge).
Alternatively, take as refer-
ence the position of the front
shaft, in correspondence
of which the frame "rests".
(TOOL: permanent marker).
