TIGHTENING TORQUE of the screws (26) that fasten the belt motor to the frame: apply Loctite
243 on the screw thread. Afterwards, tighten the screw with a tightening torque of 9 Nm (6.6 lbf-ft).
9.4

MOTOR TRANSMISSION

9.4.1 RIGHT REAR PULLEY

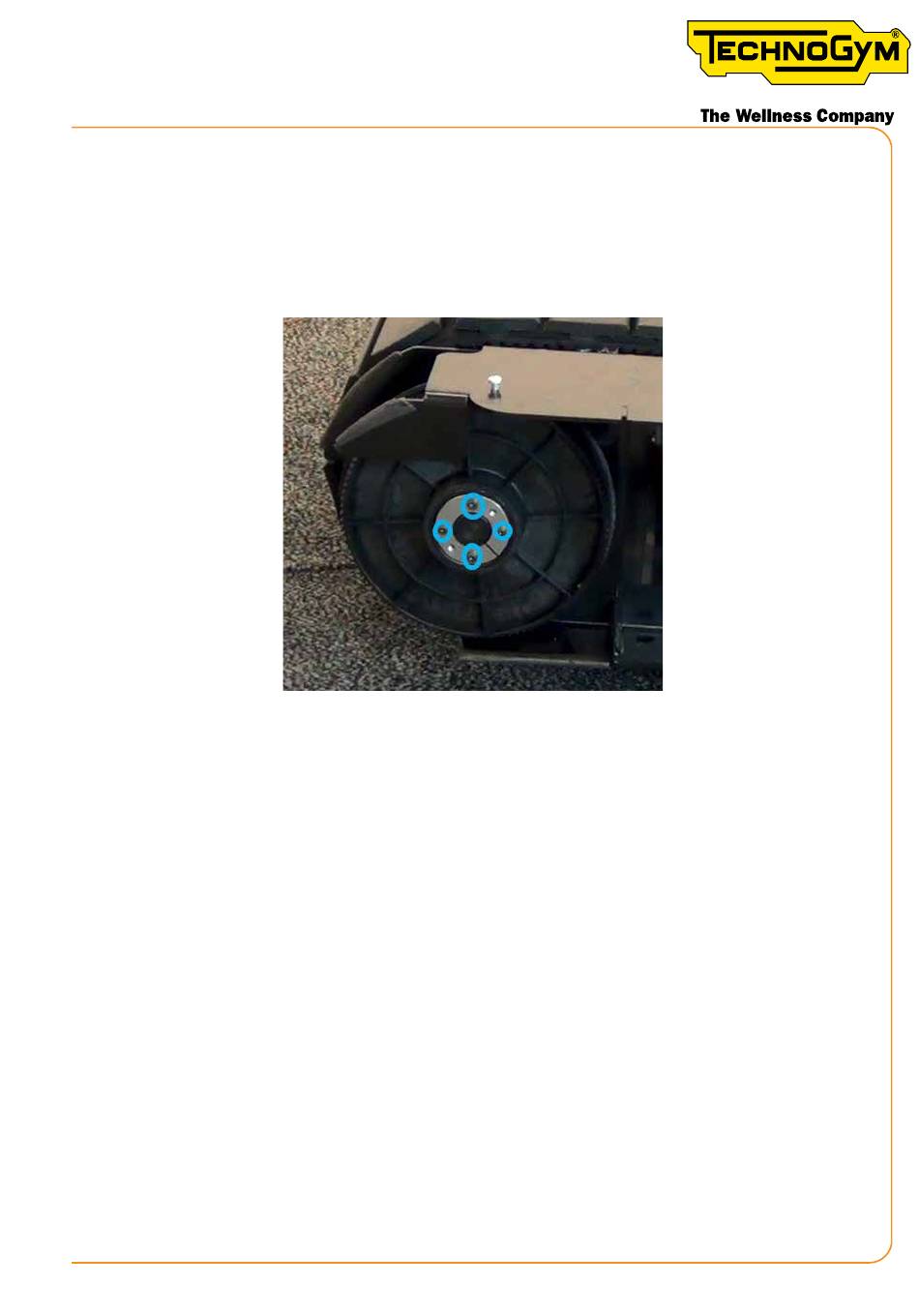

Figure 136 - detailed view of the right rear pulley screws
TIGHTENING TORQUE of the right rear pulley screws: 5 Nm (3.7 lbf-ft) (3 turns per screw).
