Rear Roller - Technogym SKILLRUN UNITY 7000 Technical Service Manual

TENSIONING THE TOOTHED BELT 14 mm - 16 mm:
▪ If the belt is replaced with a new one, tension the belt to the frequency: 200 ± 5 Hz.
▪ If the belt is loosened / removed and then the same one is reassembled: tension the belt
to the frequency: 180 ± 5 Hz.
TENSIONING THE POLI-V BELT
▪ If the belt is replaced with a new one, tension the belt to the frequency: 220 ± 5 Hz.
▪ If the belt is loosened / removed and then the same one is reassembled: tension the belt
to the frequency: 190 ± 5 Hz.
9.5

REAR ROLLER

Pag. 252

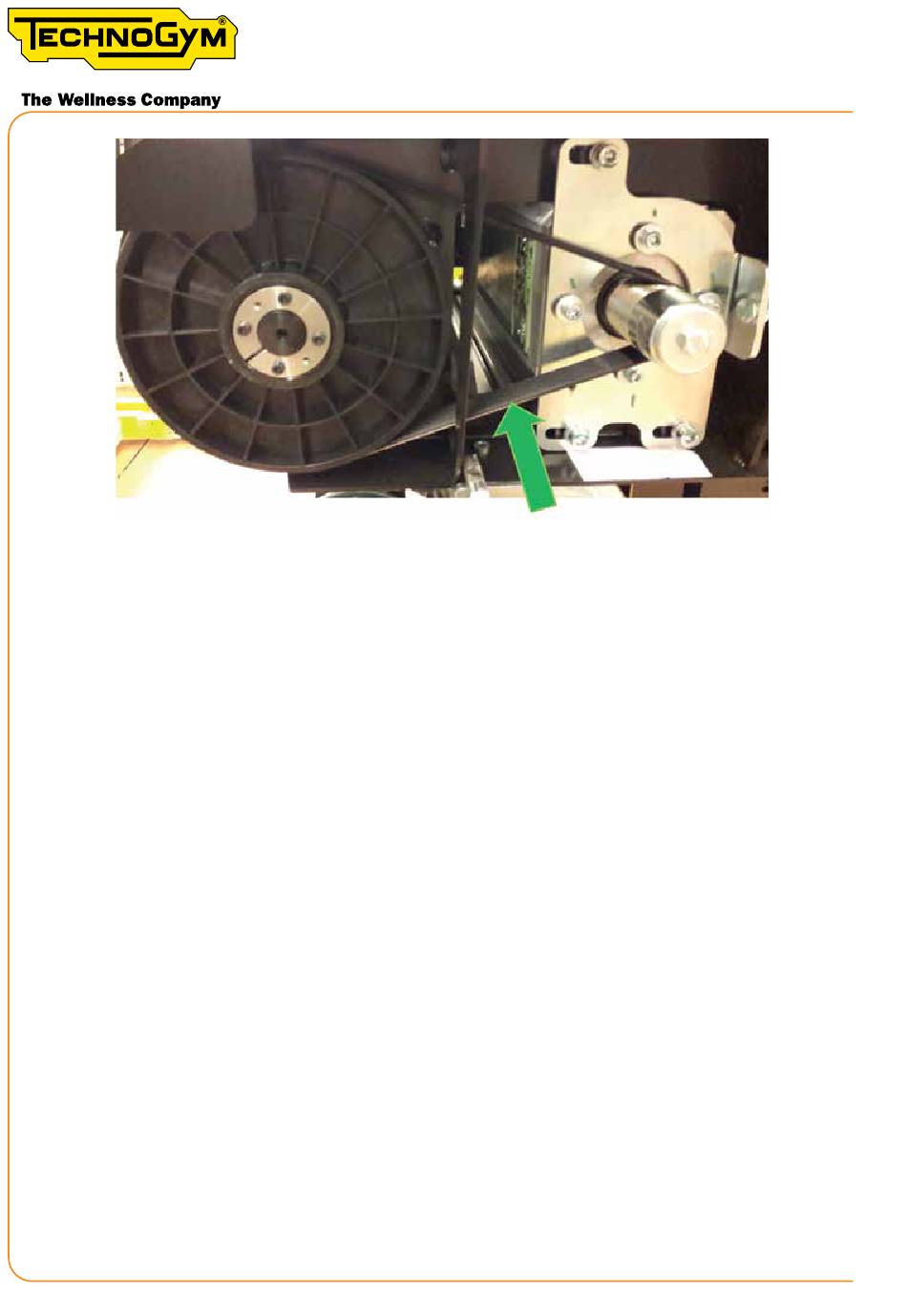

Figure 140 - poly-V belt
