28. Refit the gradient motor, paying attention that the cable is repositioned correctly. .
29. Reposition the front roller on the equipment. Do not yet fix the front roller with the screws.
30. Time the 2 belts and tension them slightly to prevent slipping or to lose timing.
31. Insert the rubber strips between the belts and slats. Fit the 60 old slats with the new self-lock-
ing nuts and the new plates. ("8.12.1 Reassembling the slats")

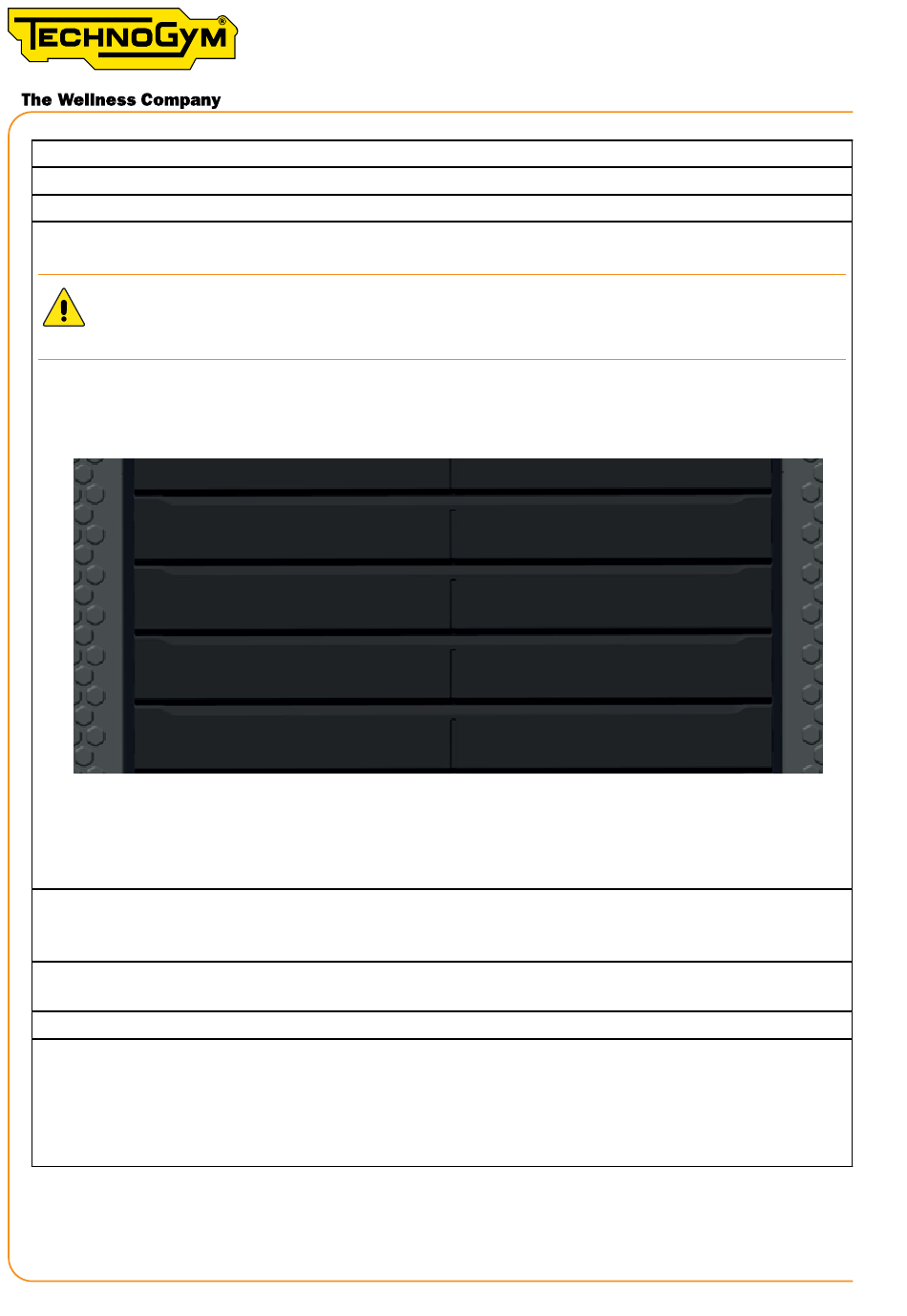

Pay ATTENTION to refitting the tread belt in the correct direction. The groove on each slat
must face the front of the equipment. See the figure below.
32. Tension the tread belt according to the procedure: "6.2.3 case 3: installation of a new tread
belt - belt replacement".
Install the antistatic brush.
33. Grease each toothed part of the belt with 7 g of ISOFLEX TOPAS L32 KLUEBER grease, mak-
ing the tread belt rotate manually. It is recommended to use a brush during this procedure.
34. Completely refit the SKILLRUN. Remember to connect all the connectors.
35. INSPECTION TEST:
- Test duration: approx. 30 sec: with the equipment on, start an exercise (QUICK START) and
check that the tread belt moves smoothly, that it is not noisy and that the equipment gradient and
speed vary as the position of the joystick changes. [Range: gradient: minimum - average - maxi-
mum; speed: minimum - average - maximum].
