8.15 DISASSEMBLING THE GRADIENT MOTOR

TIME USED FOR DISASSEMBLY AND REASSEMBLY: approx. 1 hour.
1. Remove 8 slats, as described in paragraph "8.12 Disassembling the slats" (from point 1 to
point 4).
During the reassembly of the slats, carefully follow the instructions provided in the paragraph
"8.12.1 Reassembling the slats".
Pag. 224
Technical Service Guide - Rev. 6.0

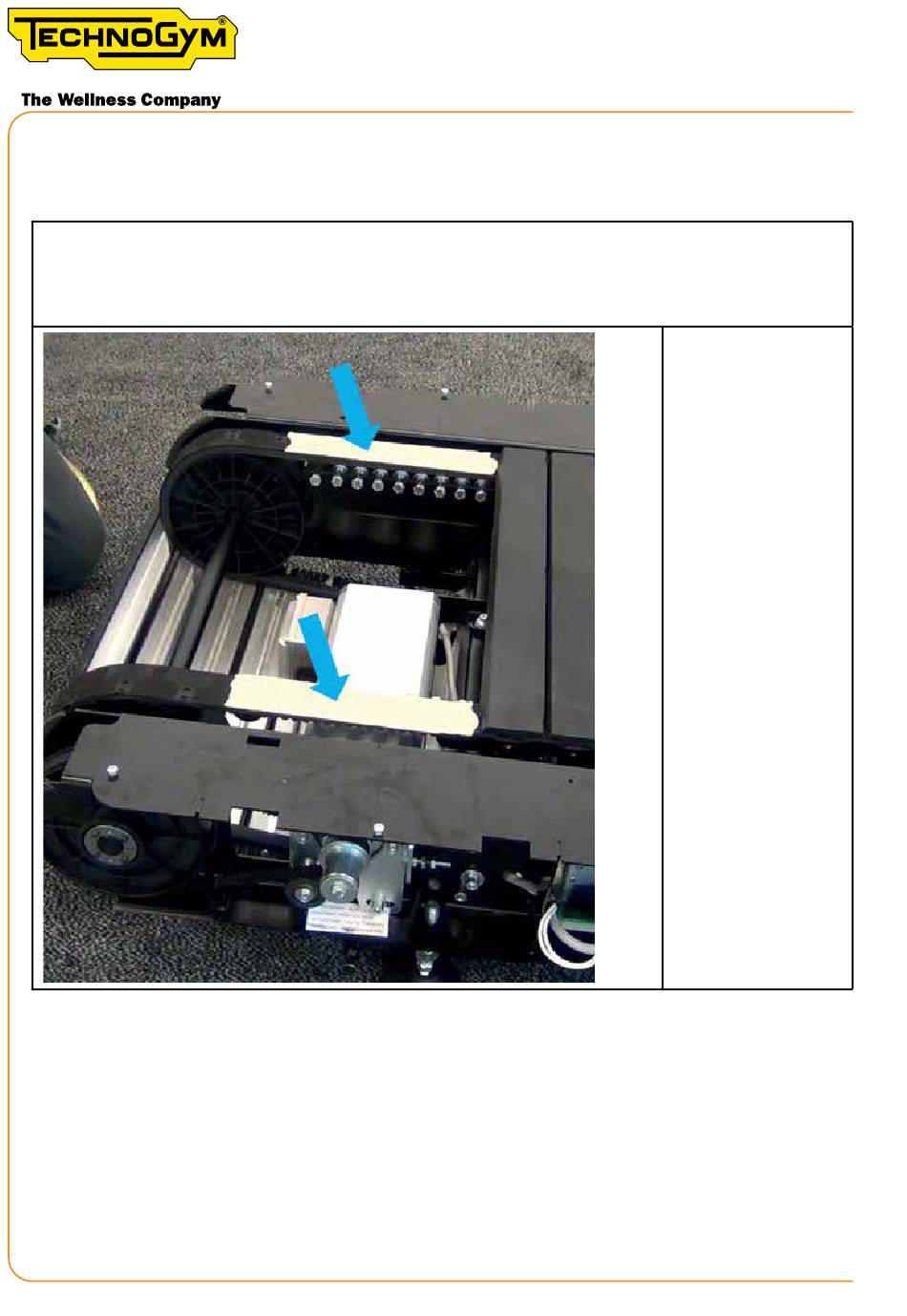

2. Attach the two
edges of the rubber,
both on the right
and on the left side.
(TOOL: scotch tape).
