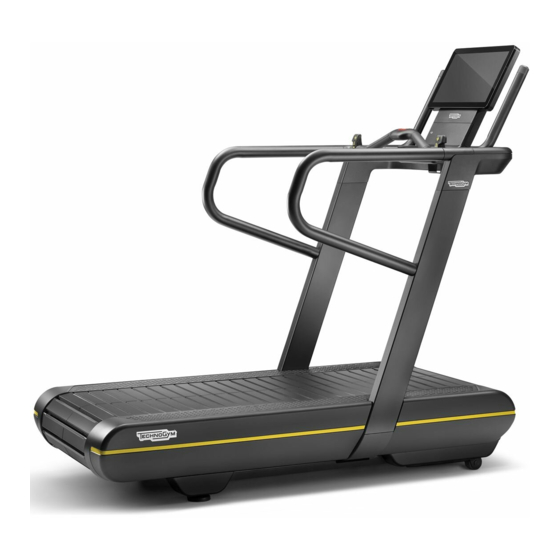

Technogym SKILLRUN Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Skill Row
SKILLRUN
TM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKILLRUN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Technogym SKILLRUN Series

Summary of Contents for Technogym SKILLRUN Series

  • Page 1 Skill Row SKILLRUN USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS Important safety instruction ................3 Personal safety ....................5 Identification of the manufacturer and the product ........7 Description of the product ................8 Using the product .....................10 Reading the heart rate ..................14 Technical characteristics ................16 Safety devices and warnings .................18 Place of usage ....................21 Moving the product ..................22 Levelling ......................23 Electrical connection ..................24...

  • Page 3: Important Safety Instruction

    Any other use should be considered incorrect and therefore dangerous. Do not use any accessories other than those recommended by Technogym. Never operate the product if it has a damaged cable or plug, if it is not working correctly, if it has been knocked over or damaged, or if it has fallen into water.
  • Page 4 IMPORTANT SAFETY INSTRUCTION Keep the power cable away from heated surfaces. Keep your hands away from moving parts. Never drop or insert any object into any opening. To disconnect power, turn all controls to the off position, then remove the plug from the outlet. SAVE THESE INSTRUCTIONS Warnings Risk Of Electric Shock.

  • Page 5: Personal Safety

    Do not attempt any maintenance work on the product other than the operations described in the user manual. The installation, maintenance and setting operations must be carried out by qualified Technogym staff or persons authorised by Technogym. The electrical system must conform to the standards and legal requirements in the country of use.
  • Page 6 Do not place anything on the frame or control panel. Technogym is not responsible for any harm due to any failures or damage caused by unauthorised maintenance, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the area where the product is used, rust or corrosion as a result of the product’s location, alterations or modifications without Technogym’s written authorisation or for failure on your part to use, operate and maintain the...

  • Page 7: Identification Of The Manufacturer And The Product

    SKILLRUN TX 500 SKILLRUN UNITY 7000 A - Manufacturer’s name and address B - Place of manufacture C - Description of product Technogym S.p.A. via Calcinaro 2861, Cesena (FC) Made in Italy Model no. DJJ0EU SKILLRUN D - Electrical specifications...

  • Page 8: Description Of The Product

    Control panel (A). Used to display and manage training information, settings and content. The tablet-style touch screen interface allows you to include the contents offered by the Technogym App Store (in Unity 5000 and Unity 7000 models). Input for TGS key (B). The device reads the training data on the TGS key and memorises the exercise results.
  • Page 9 DESCRIPTION OF PRODUCT Treadmill belt (H). The elements that compose the running surface are covered with rubber, in order to reduce the impact on the user's joints. Side supports (L). For stability when getting on and off the product or if the user loses his/her balance; these can also be gripped to take long strides. Handgrips (M).

  • Page 10: Using The Product

    USING THE PRODUCT Before getting onto the product, make sure that it is turned on and that the treadmill is at a standstill. Step on the rotating belt from the rear, looking forward, and put your feet on the footrests on either side of the frame. In this rest position hold on to the grip with one hand, using the other hand to operate the control panel.
  • Page 11 USING THE EQUIPMENT Warnings Any distractions in the area around the equipment may cause the user to lose his/her balance. It is the user's responsibility to ensure that the product being used does not interfere with any other mobile items during use. It is forbidden for two people to use the equipment at the same time.
  • Page 12 USING THE EQUIPMENT Thanks to SKILLRUN parachute resistance training, it is possible to improve the maximum reachable speed. To perform parachute resistance training, connect the ergonomic band. Put on the ergonomic band in the direction shown in the figure. SKILLRUN...
  • Page 13 USING THE EQUIPMENT The advanced biofeedback sensor (A) is installed standard in Unity 7000 model. Be careful not to cover the sensors (A), if present. SKILLRUN...

  • Page 14: Reading The Heart Rate

    A receiver is incorporated into the control panel, which receives heart rate signals from the telemetric chest band. Bluetooth Smart transmission technology is supported. Should you have any doubts about the accuracy of the readings, contact the Technogym Technical Support Service.
  • Page 15 READING THE HEART RATE The table shows the optimum heart rate levels in relation to age and the goal to be achieved. Theoretical maximum heart rate (100%) is calculated on the basis of age using the formula: HRmax = 207 - 0.7 x age (R. L. Gelish et al, Med Sci Sports Exerc., 2007 May, 39 (5): 281).

  • Page 16: Technical Characteristics

    TECHNICAL CHARACTERISTICS Model code DJJ0E... - DJJAE... DJJ0A... - DJJAA... Power supply 200÷240 Vac 50/60 Hz 100÷240 Vac 50/60 Hz Motor peak power 5800 W (8 Hp) 5800 W (8 Hp) Maximum weight of user (walking) 220 kg (485 lb) 220 kg (485 lb) Maximum weight of user (running) 180 kg (397 lb)
  • Page 17 TECHNICAL CHARACTERISTICS 1851 mm (73") 876 mm (35") Weight of the product SKILLRUN UNITY 5000 220 kg (485 lb) SKILLRUN UNITY 7000 232 kg (511 lb) 876 mm (35") 1835 mm (72") Weight of the product SKILLRUN TX 500 216 kg (476 lb) SKILLRUN...

  • Page 18: Safety Devices And Warnings

    SAFETY DEVICES AND WARNINGS STOP button (A). This button can be used to stop the exercise without having to use the normal controls. Emergency switch (B). This switch stops the exercise immediately. It is equipped with a cord with a peg to clip on to the user’s clothing as shown in the illustration.
  • Page 19 SAFETY DEVICES AND WARNINGS Main switch (C). Turns the power to the product on and off. Circuit breaker (D). Protects the electrical components of the product. When a power surge occurs, the protection device opens, thus preventing damage to the electronics inside. To access to the main switch and circuit breaker, open the panel (E).
  • Page 20 SAFETY DEVICES AND WARNINGS Warning Please read the adhesive labels on the equipment, which provide information about possible risks and hazards. Before using the product, read all the warnings on WARNING the label applied to the right-hand column. Serious injuries can occur on this equipment. Do not allow children unsupervised access to the equipment.

  • Page 21: Place Of Usage

    PLACE OF USAGE To ensure that exercising with the equipment is easy, safe and effective, the place where it is used should comply with certain specific requirements; in particular, before choosing where to install the equipment we recommend that you check that the following conditions are present. The temperature is between +10°C and +25°C;...

  • Page 22: Moving The Product

    MOVING THE PRODUCT The product has two fixed front wheels. To lift and move it, use the two levers provided. Remove the two covers (A). Insert the levers (B). Hold onto the levers, lift the product and push forwards or backwards. After moving the product, remove the levers (B) and put the covers back in position (A).

  • Page 23: Levelling

    LEVELLING In order to function correctly, the equipment must be level. Use one of the feet shown in the illustration to level the equipment. Remove the cover (C). Loosen the locknut (B). Screw or unscrew the foot (A) until the frame is in a stable position. After adjusting, tighten the lock nut (B).

  • Page 24: Electrical Connection

    ELECTRICAL CONNECTION Before connecting the product to the mains power supply, ensure that the electrical system specifications comply with current regulations. Check the mains power supply specifications on the identification label. Open the panel (A) to reach the label and connector: put a finger in the hole and pull.
  • Page 25 ELECTRICAL CONNECTION Collect the excess cable with the specific cable ties. The power supply socket must be grounded . If not, a ground connection must be installed by a qualified electrician before connecting the equipment to the electricity mains. The product must be grounded. If the unit malfunctions or breaks down, earthing provides a minimum resistance path for electric current thus reducing the risk of electric shock.

  • Page 26: Turning On And Off

    TURNING ON AND OFF To turn the equipment on, move the switch to the ON (I) position. After a quick system check (reset), the equipment is ready for use. To turn the equipment off, move the main switch to the OFF (0) position. The equipment must be switched off only at the end of the exercise, when in standby.

  • Page 27: Connection To Another Device

    CONNECTION TO ANOTHER DEVICE To connect the TV, connect the cable for the aerial to the equipment and to the wall socket. Use an RF coaxial cable for the connection with an F type of connector for the equipment. The wall socket of the aerial cable must be positioned so that the plug can be easily inserted and removed.

  • Page 28: Routine Maintenance

    Danger of falling. If the product is not connected to the power supply, the belt will turn freely. You must hold onto the side supports when getting on and off the product For maintenance operations not described in this manual, contact the Technogym Technical Support Service. SKILLRUN...
  • Page 29 5 km/h, press the emergency push button to ensure that the belt stops. If the emergency switch does not work properly, place the product out of service and contact the Technogym Technical Support Service.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Below is a list of problems that may arise during normal use of the equipment. If the described solutions do not solve the problem, contact the Technogym Technical Support Service. Problem Cause Solution Check the power supply at the wall socket used by the Mains power failure.

  • Page 31: Technical Assistance

    Via Calcinaro 2861, 47521 Cesena Italy supply of original spare parts. tel: +39 0547 56047 www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: model, date of purchase, serial number, precise description of the problem.

  • Page 32: Storing The Product

    If the product is used for commercial purposes, contact your reseller or the Technogym Customer Service, in the various Countries, to arrange for collection and disposal of waste from electrical and electronic equipment.
  • Page 33 SKILL LINE SKILLATHLETIC TRAINING SKILLMILL SKILLROW SKILLRUN SKILLBIKE SKILLRUN_en-AC 0SM01024...

This manual is also suitable for:

Skillrun unity 5000Skillrun unity 7000Skillrun tx 500
