SKILLRUN
Technical Service Guide - Rev. 6.0

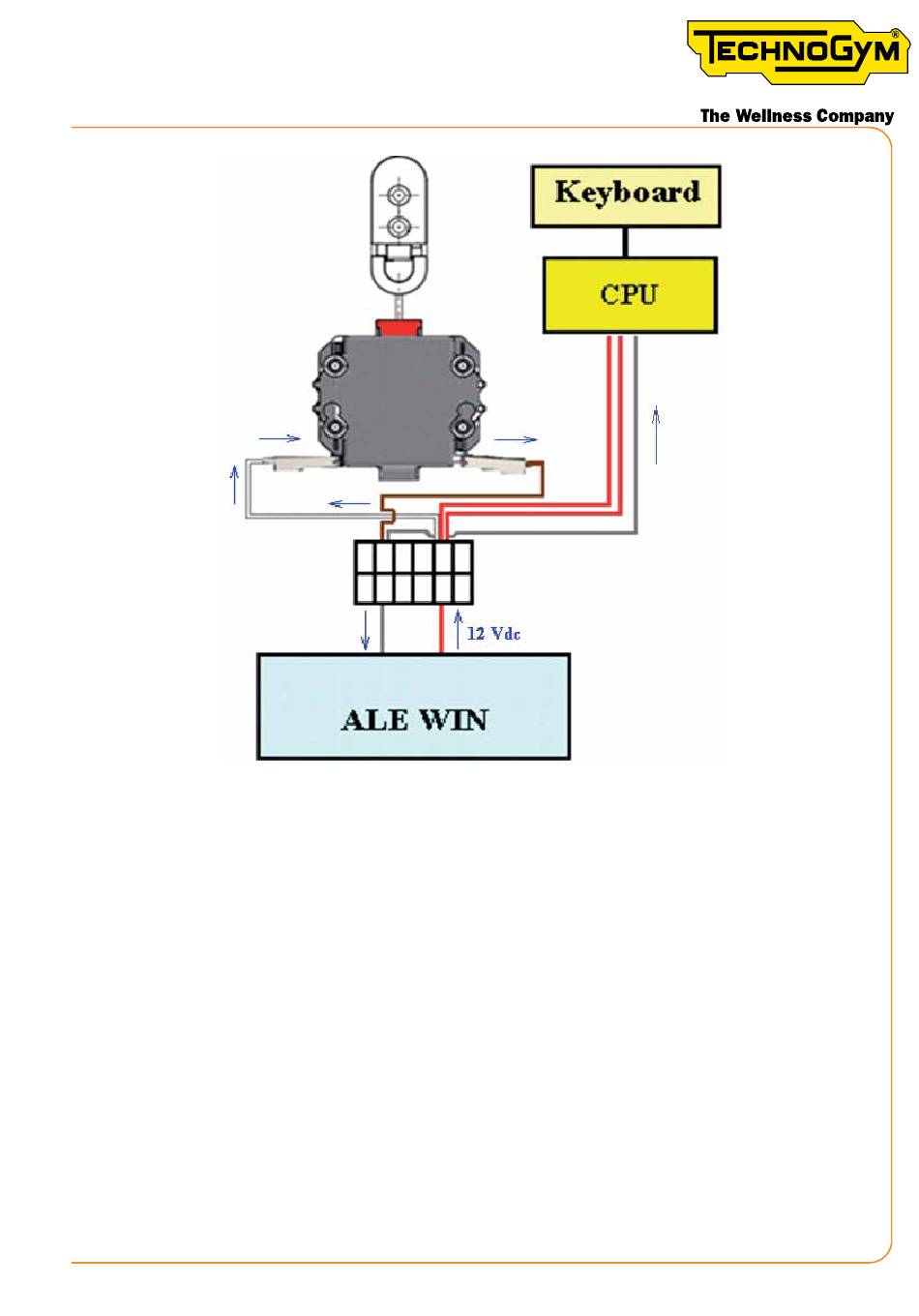

Figure 37
The generated emergency signal: is directed to the LK and directly blocks it, whereas the HK only
reads the current state of the LK. To restore all the functions of the equipment after an emergency
stop, reposition the switch in its seat. Drive release procedure: the drive receives the restore signal
from the CPU board (HK). Afterwards, the drive performs the reset procedure.
Uncontrolled copy if printed
Pag. 69
