SKILLRUN
Technical Service Guide - Rev. 6.0

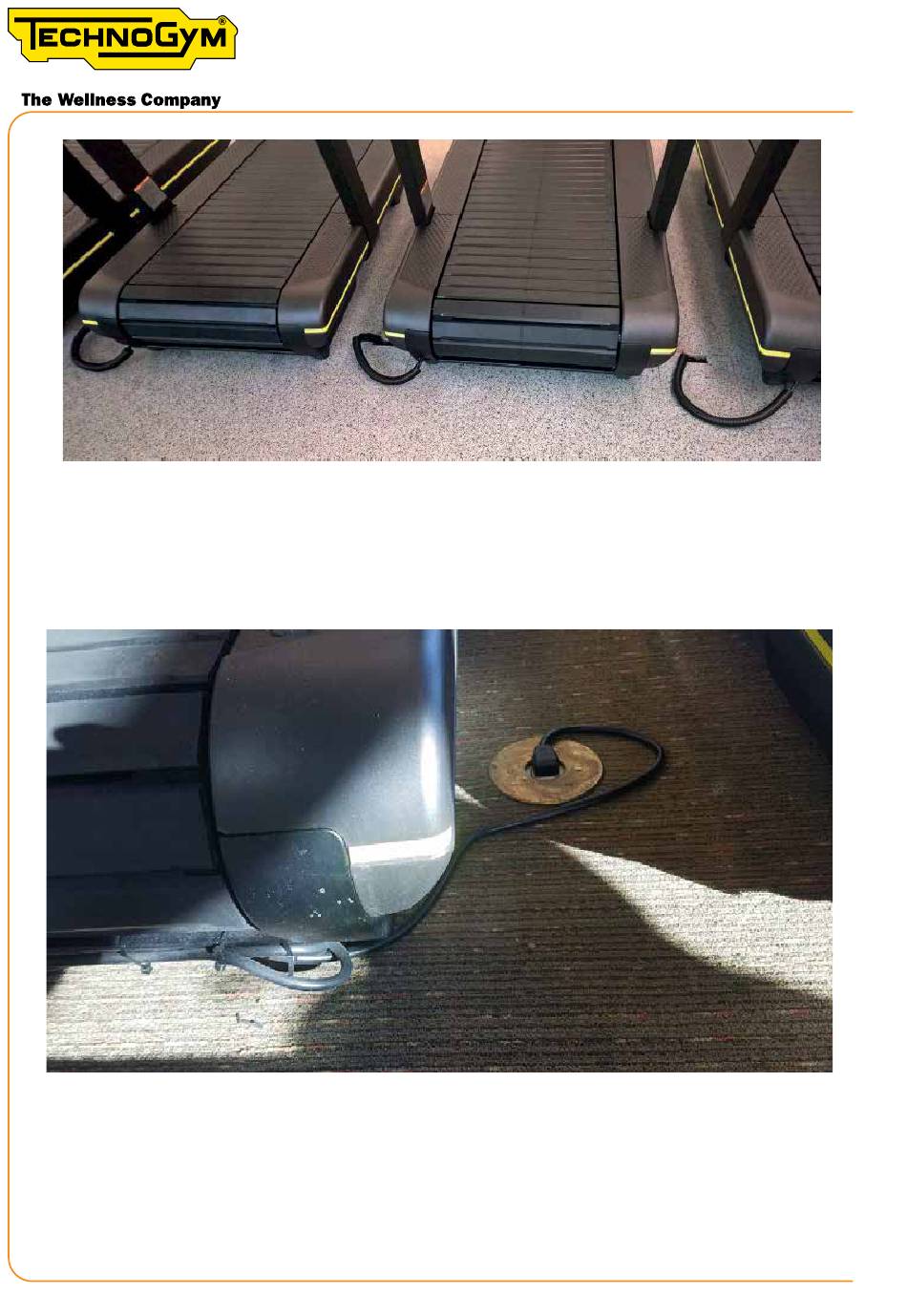

Figure 48- Layout 2 OK
The following figures show a wrong cables arrangement, because there's a free cable near the zone
between carriage and the frame and the portion of cable is in excess.
NOT OK
Figure 49 - Layout NOT OK
Uncontrolled copy if printed
Pag. 80
