8.4

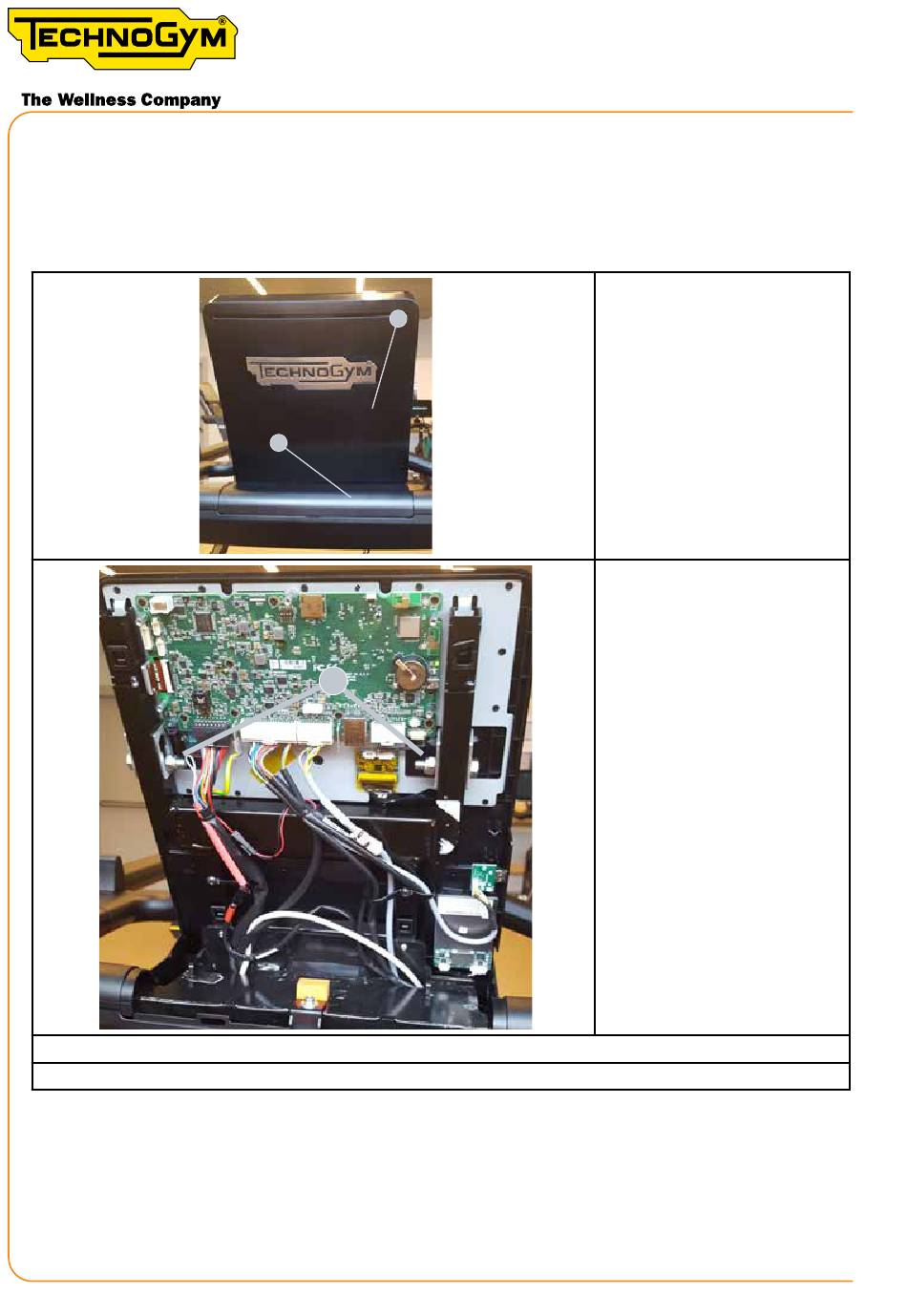

DISASSEMBLING THE DISPLAY

8.4.1 SKILLRUN TX 500 (10'' INTERFACE)

TIME USED FOR DISASSEMBLY AND REASSEMBLY: 5 minutes
4. Disconnect all the connectors connected to the CPU board.
5. Lift the display until removing it.
Pag. 182
E
D
F
Technical Service Guide - Rev. 6.0
1. Remove the
locked guard (D).
2. Remove the
locked guard (E).
3. Remove the two bolts
(F). (TOOL: 2 x 13 mm
open-end wrenches).
