VisuNet FLX System
Installing Peripherals

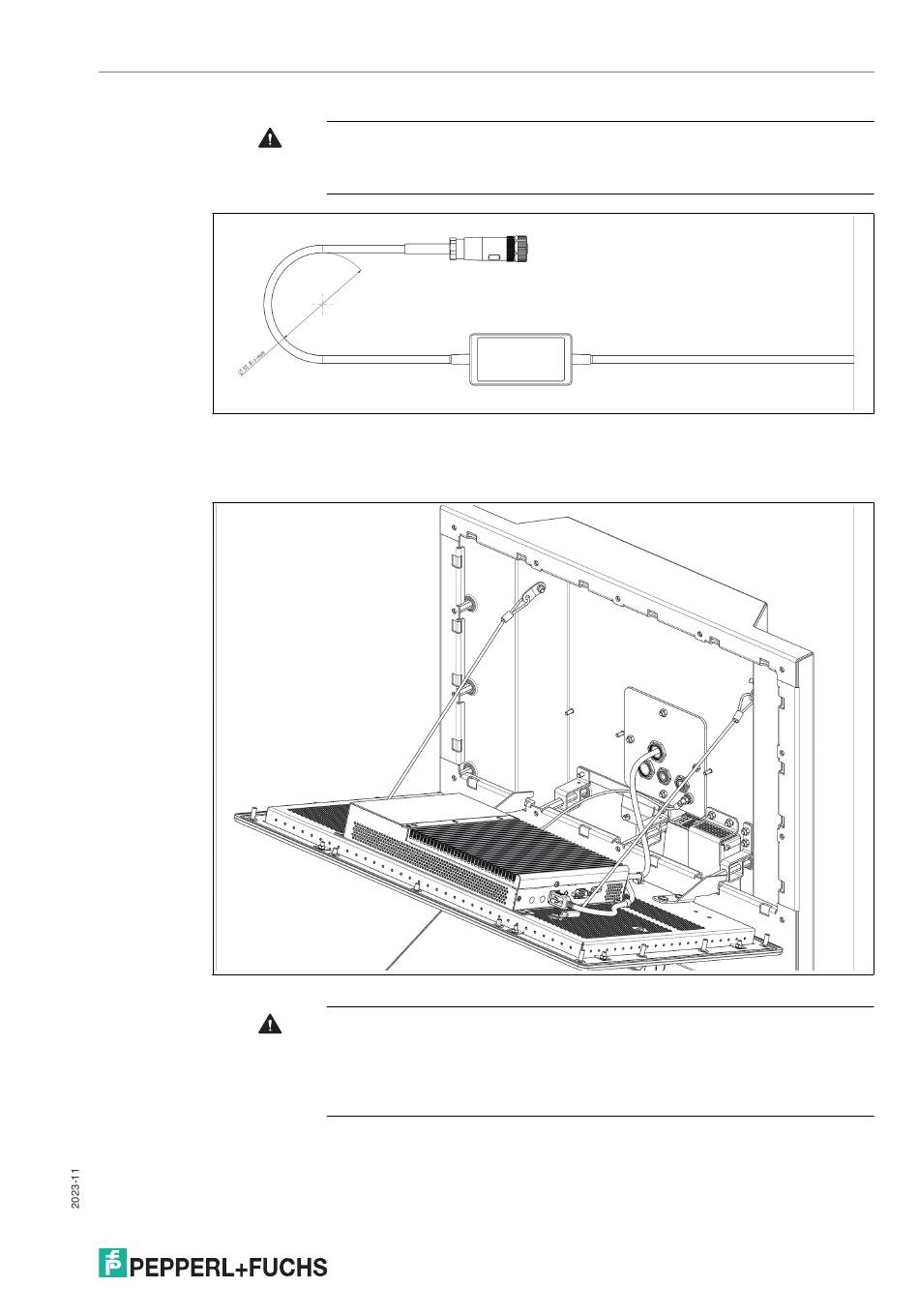

Figure 7.17
7.
Place the USB supply cable with the Velcro tape on the left side of the inner side of the adapter.
8.
Connect the USB connector of the supply cable to the BPC3200-*.
Figure 7.18
Warning!
Bending radius must be maintained.
The maximum allowed bending radius is 80°.
Warning!
For operation in hazardous areas the interfaces of the BPC3200-* must be
mechanically secured!
The strain relief-locking mechanism can be provided by installing the available
accessory ATEN-LockPro.
