VisuNet FLX System
Mechanical Installation
Wall Mounting
1.
Use the hole pattern to install the bracket to the wall.
2.
Connect the PB wire from the field to the PB stud on the wall bracket.
3.
Mount the VisuNet FLX to the bolts on the wall bracket. With the DPU hinged down, route
cables through the cable glands in the wall bracket.
4.
A cable tie socket could be used to attach the cables.
5.
Cables can be routed from the top through the cutout in the wall bracket or from the bottom.
Note
Connect the equipotential bonding of the AG-3200-* housing to the Wall Bracket. The AG-
3200-* housing equipotential bonding is indirectly via the wall bracket connected. It does not
require an extra PB wire between housing and wall bracket.
4.10

Wall Mounting for Scanner Barrier

The adapter WALL-MOUNT-3200-10-304A-M12 is designed for direct wall mounting for zone 2
scanner barrier. It is prepared for IDM Barcode Readers and is compatible to the housing AG-
3200-*. To install the barrier, follow these steps:

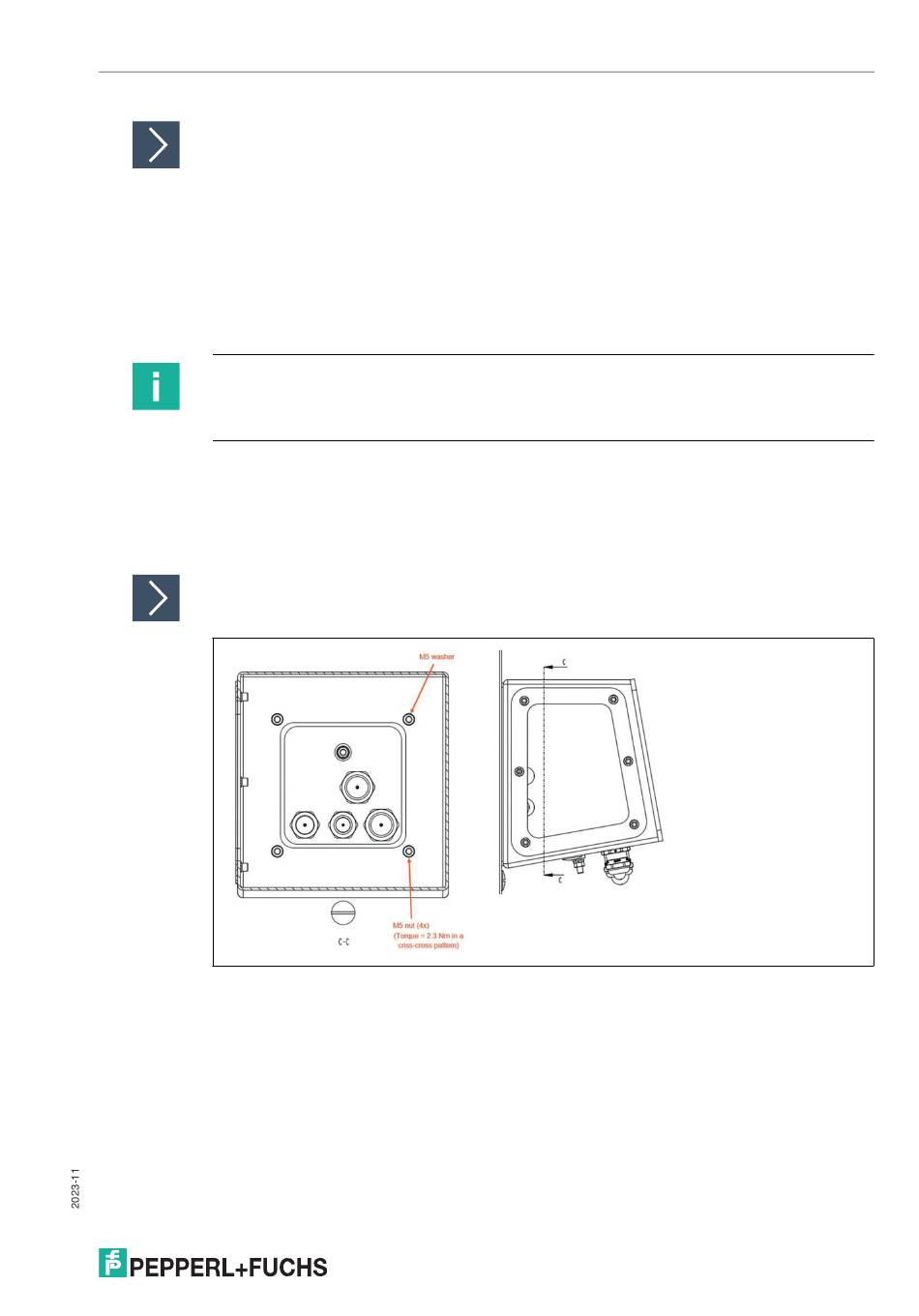

Installing VisuNet FLX Wall Mounting Adapter for Scanner Barrier
Figure 4.21
47
